Front Camber Adjustment

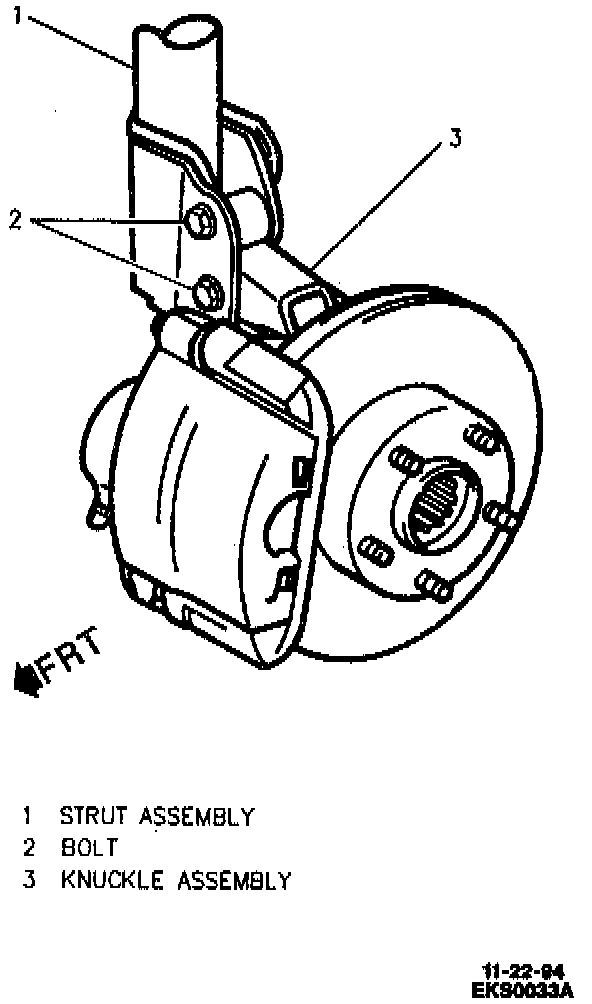

1. Loosen both strut-to-knuckle nuts.
^ Set camber to specification using camber adjustment bolt.
^ Tighten:
- Both strut-to-knuckle nuts to 190 Nm (140 ft. lbs.).
- Camber adjustment bolt to 10 Nm (7 ft. lbs.).
1. Loosen both strut-to-knuckle nuts.
^ Set camber to specification using camber adjustment bolt.
^ Tighten:
- Both strut-to-knuckle nuts to 190 Nm (140 ft. lbs.).
- Camber adjustment bolt to 10 Nm (7 ft. lbs.).
