Home >> Cadillac >> 1997 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Module HVAC >> Diagrams >> C1

C1

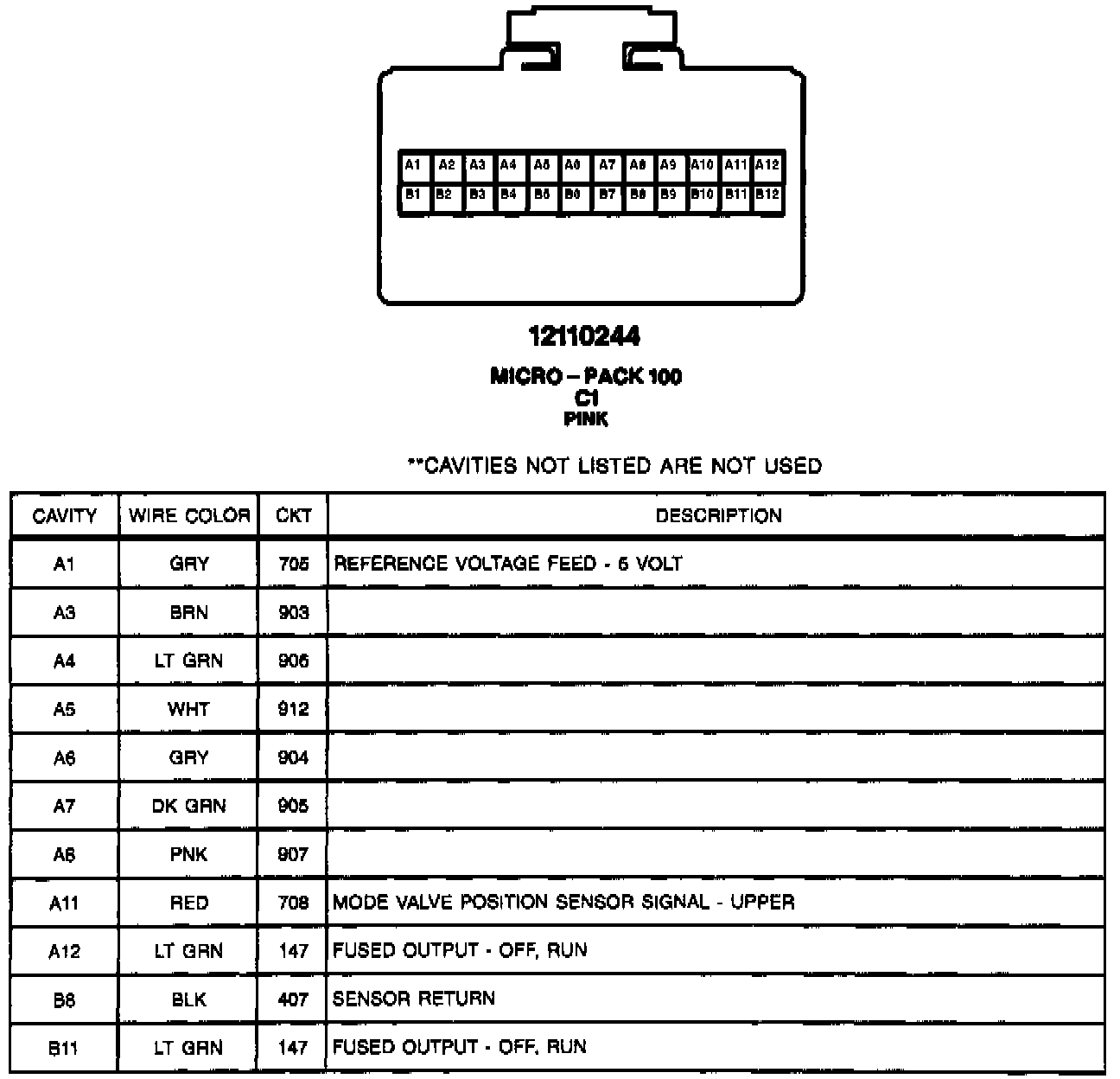

Heater And A/C Programmer (ACM) C1:
