Home >> Cadillac >> 1997 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Locations

Control Assembly: Locations

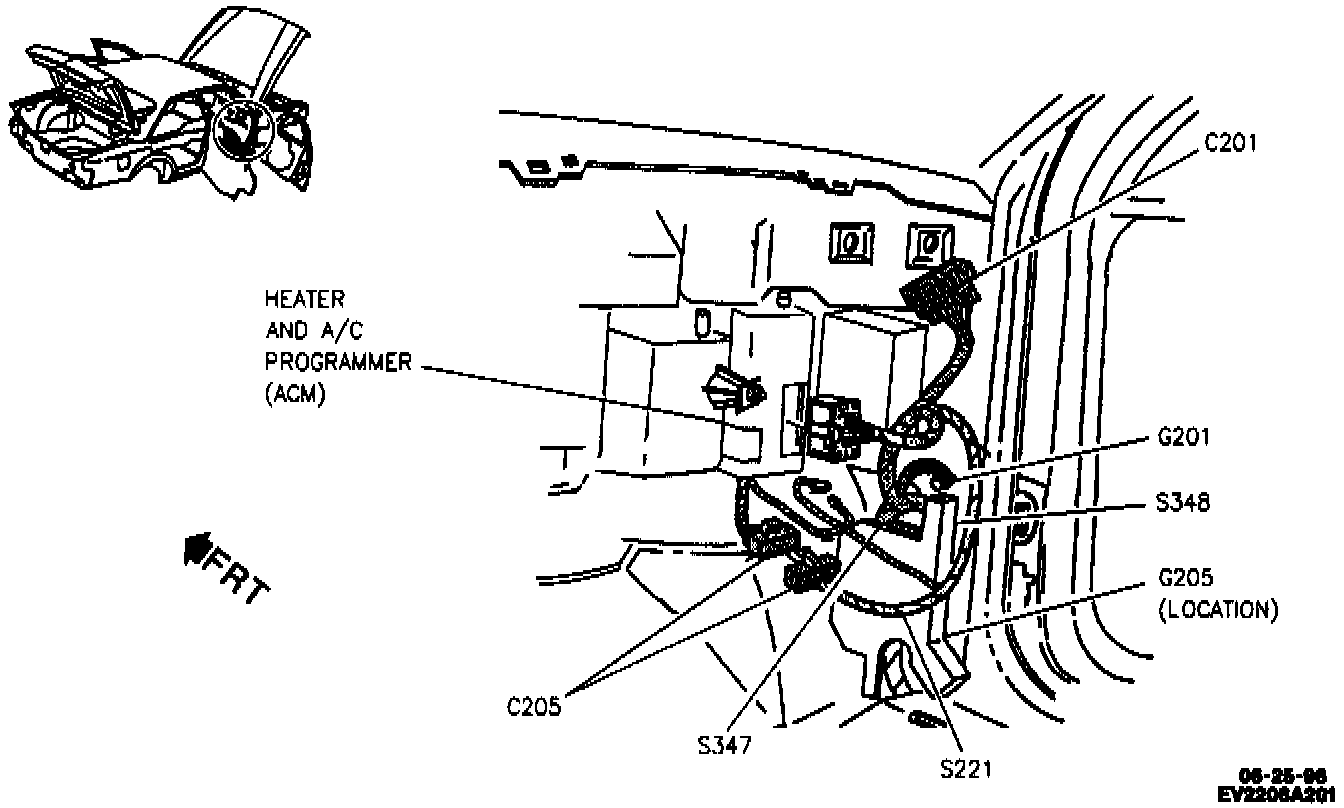

Behind RH Side Of I/P:



RH Front Seat, LH Similar:
