Home >> Cadillac >> 1997 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Lower Control Valve Assembly

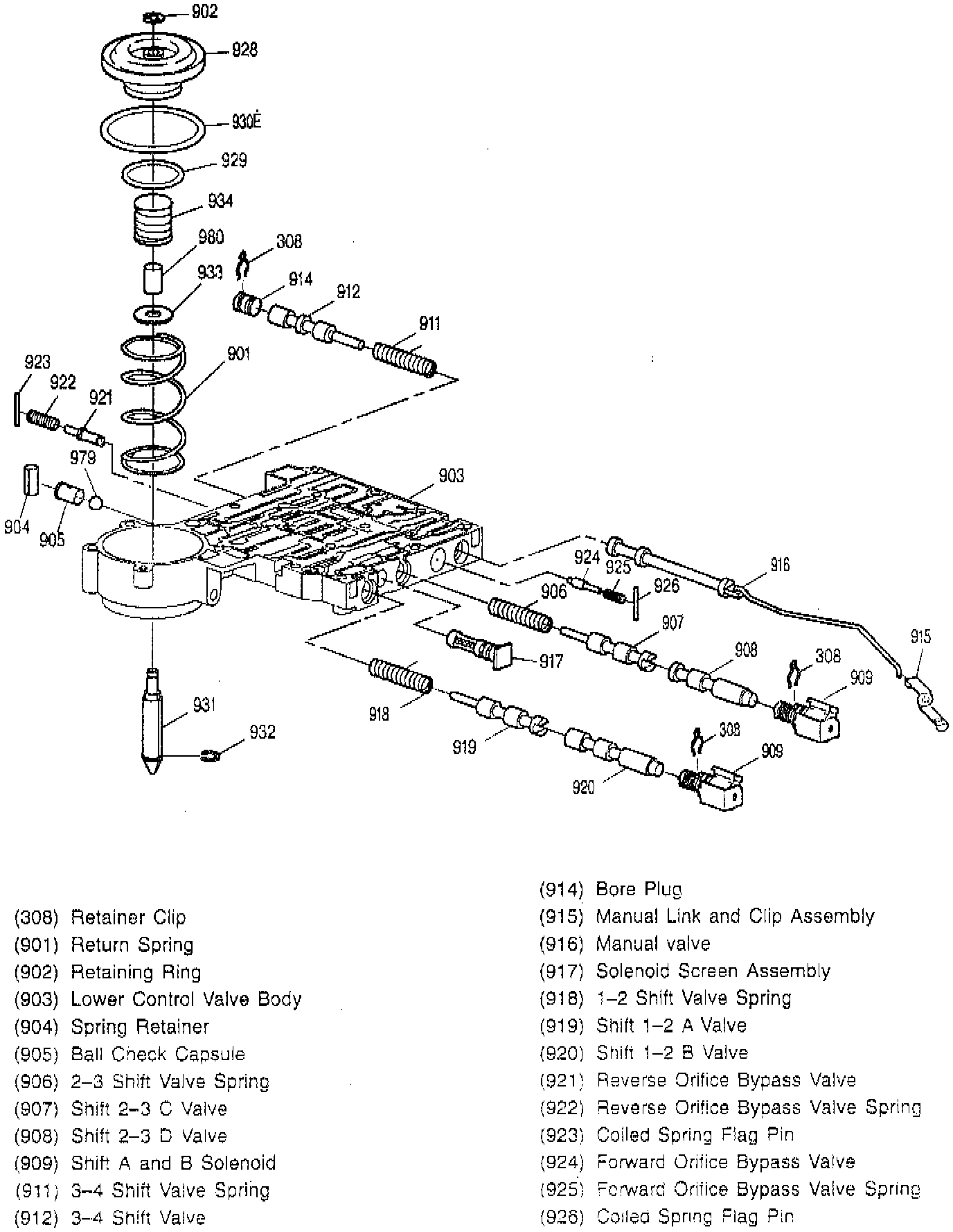

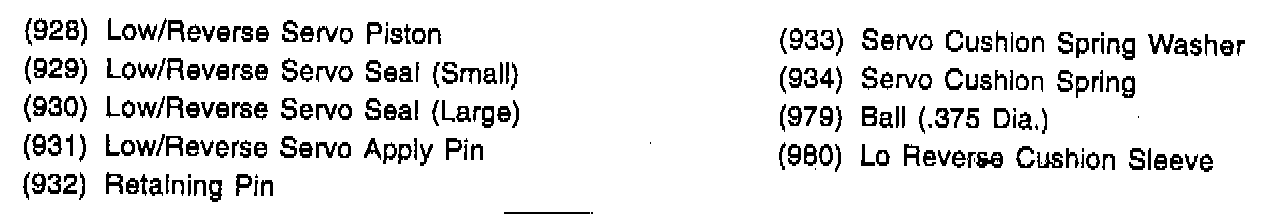

Lower Control Valve Assembly
