Windshield Wiper & Windshield Washer Switch

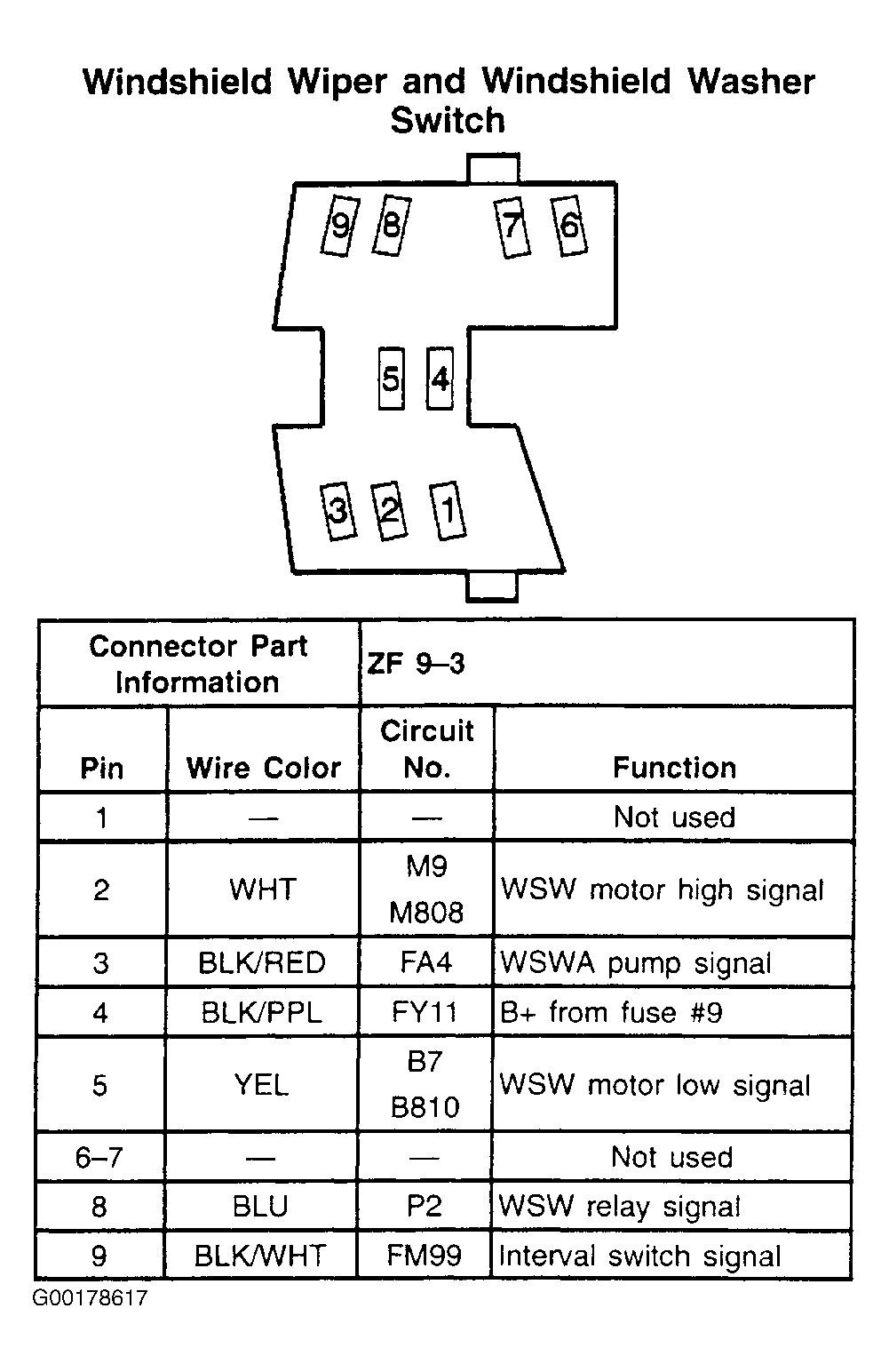

Fig 1: Windshield Wiper & Windshield Washer Switch - 9-Pin Connector

G00178617

Courtesy of GENERAL MOTORS CORP.
