Home >> Cadillac >> 1997 >> Catera >> Repair and Diagnosis >> Engine Performance >> System >> Connector Terminal Identification >> Wiper/Washer Systems >> Windshield Washer Nozzle (Left Hand)

Windshield Washer Nozzle (Left Hand)

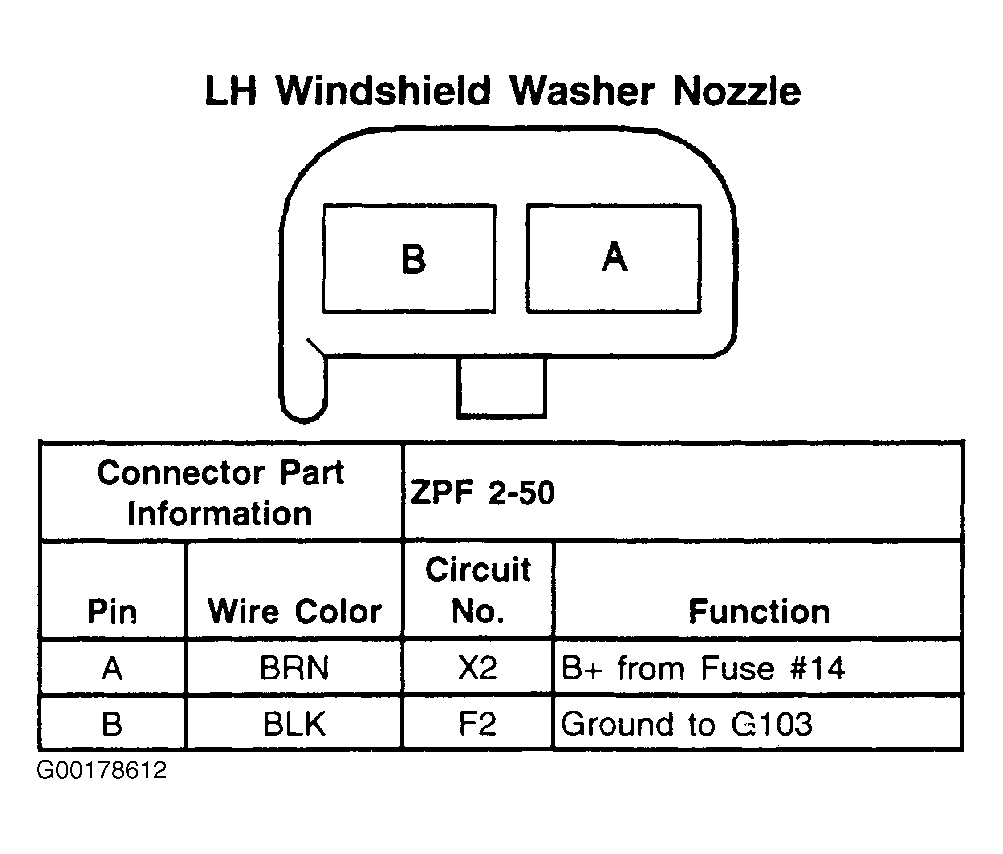

Fig 1: Windshield Washer Nozzle (Left Hand) - 2-Pin Connector

G00178612

Courtesy of GENERAL MOTORS CORP.
