Home >> Cadillac >> 1997 >> Catera >> Repair and Diagnosis >> Engine Performance >> System >> Connector Terminal Identification >> Stationary Windows >> Inside Rear View Mirror (With Memory)

Inside Rear View Mirror (With Memory)

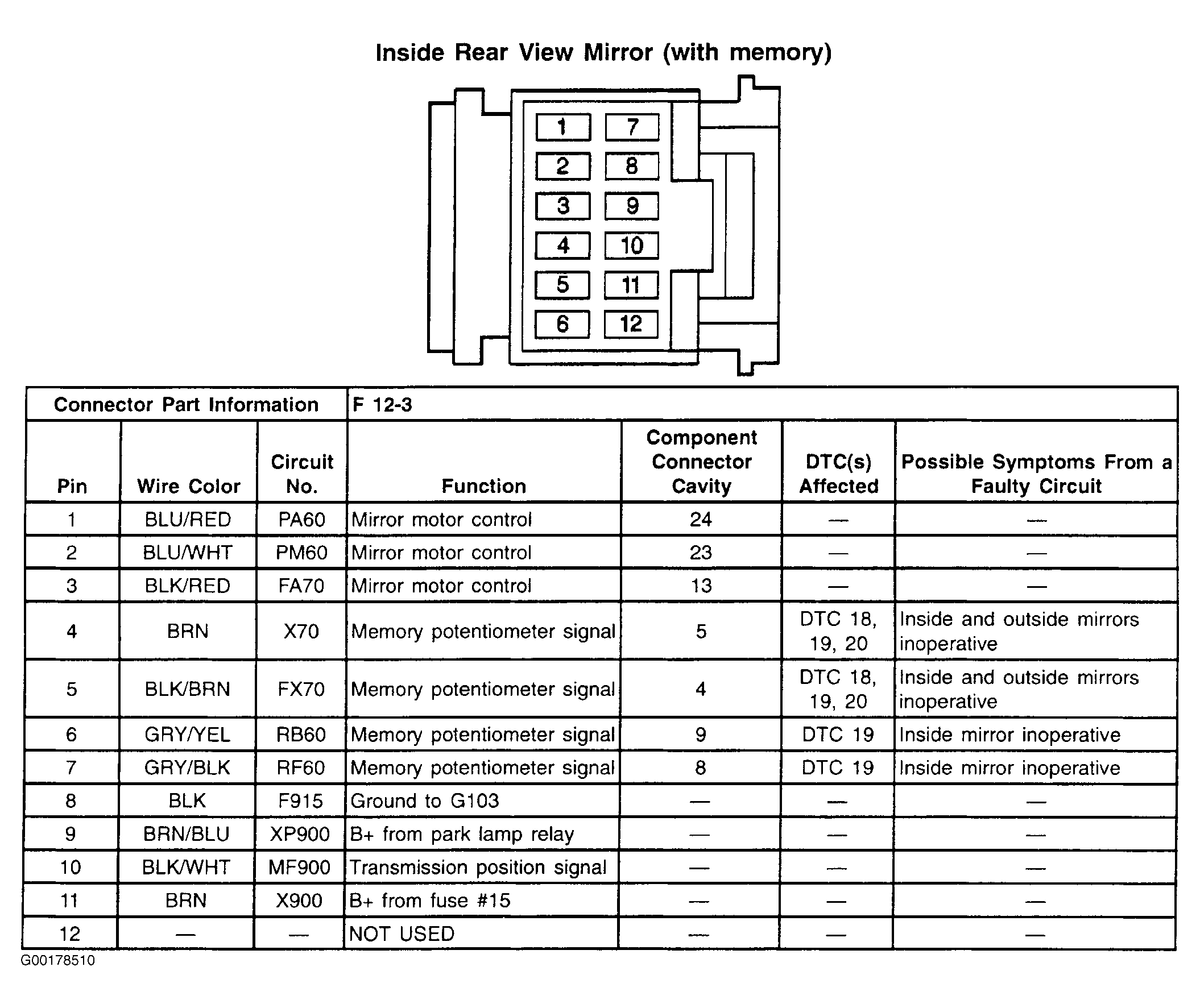

Fig 1: Inside Rear View Mirror (With Memory) - 12-Pin Connector

G00178510

Courtesy of GENERAL MOTORS CORP.
