Home >> Cadillac >> 1997 >> Catera >> Repair and Diagnosis >> Engine Performance >> System >> Connector Terminal Identification >> Power Doors >> Front Side Door Lock Actuator (Left Hand)

Front Side Door Lock Actuator (Left Hand)

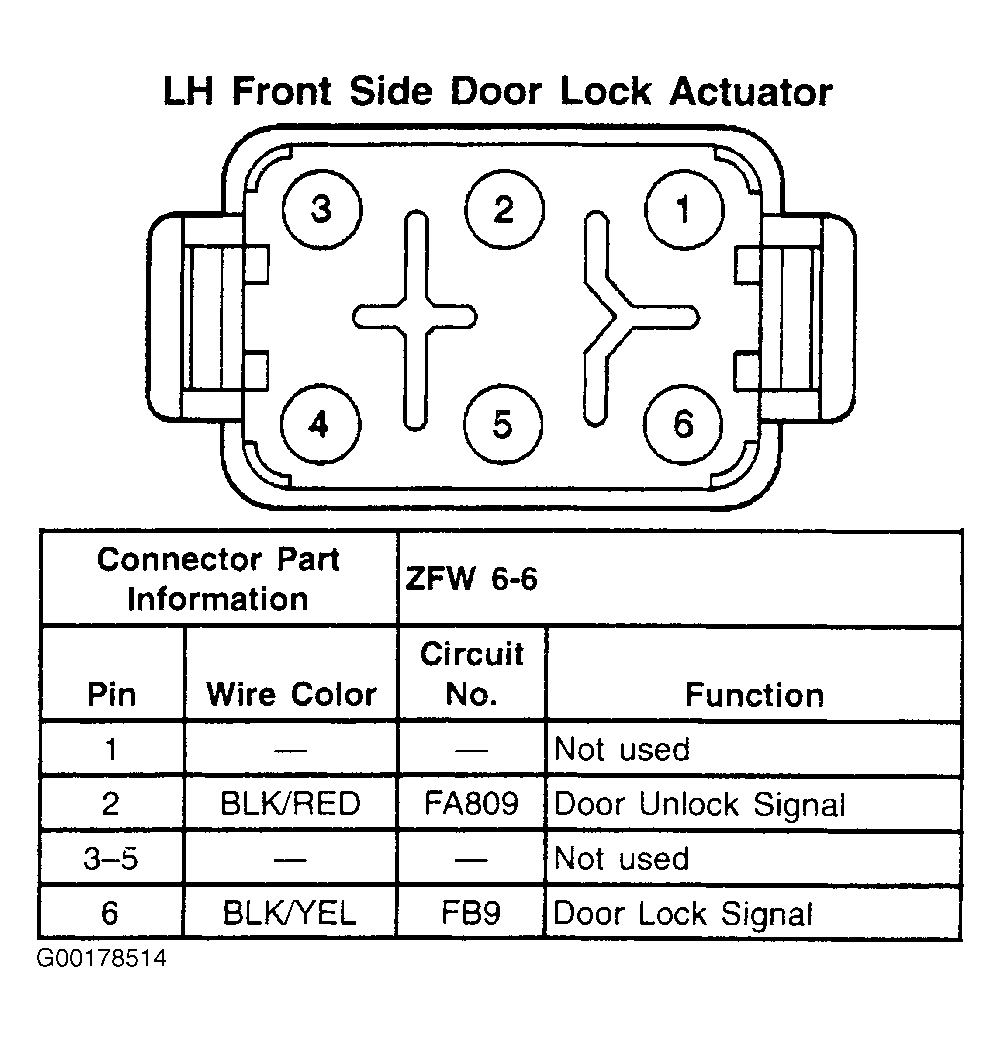

Fig 1: Front Side Door Lock Actuator (Left Hand) - 6-Pin Connector

G00178514

Courtesy of GENERAL MOTORS CORP.
