Low Beam Headlamp (Left Hand)
Low Beam Headlamp (Left Hand)

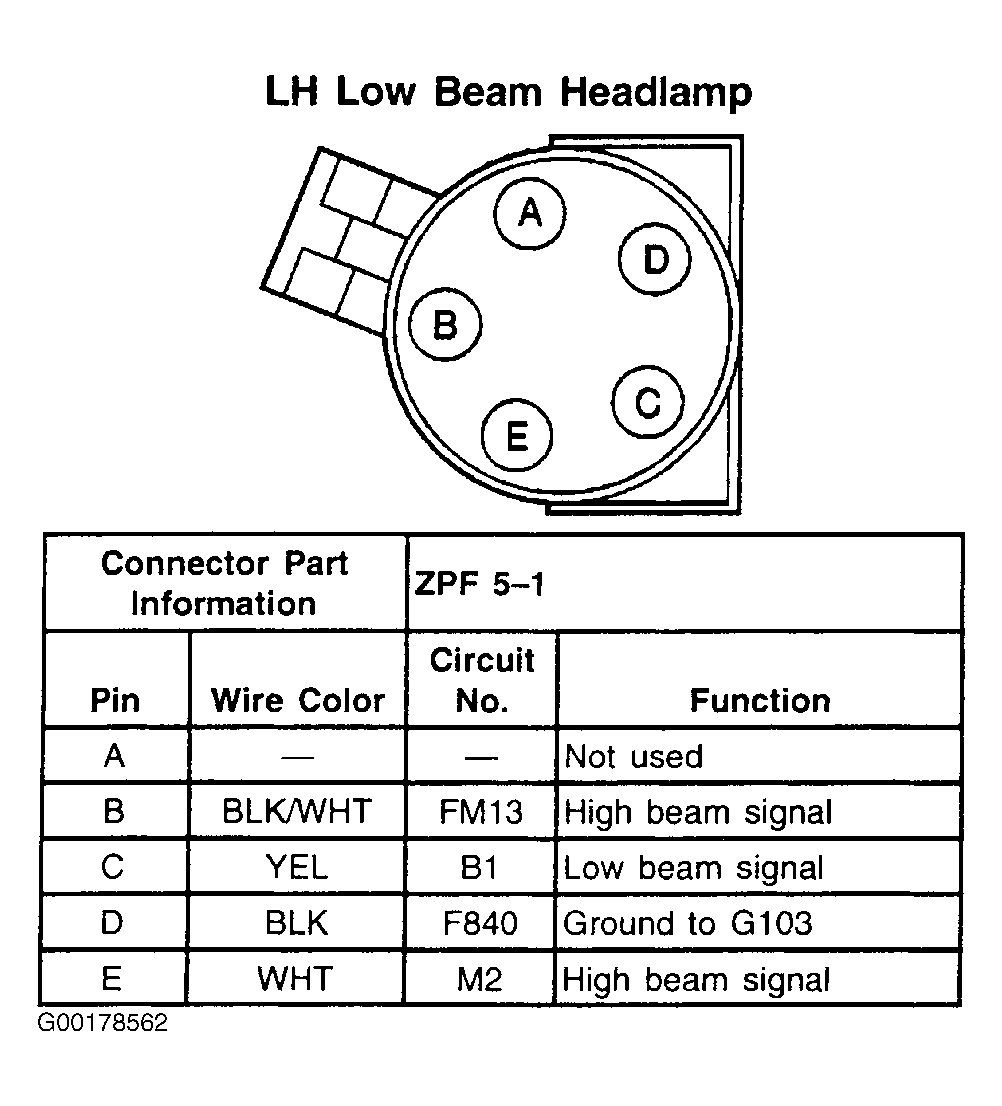

Fig 1: Low Beam Headlamp (Left Hand) - 5-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
