Mode Valve Actuator
Mode Valve Actuator

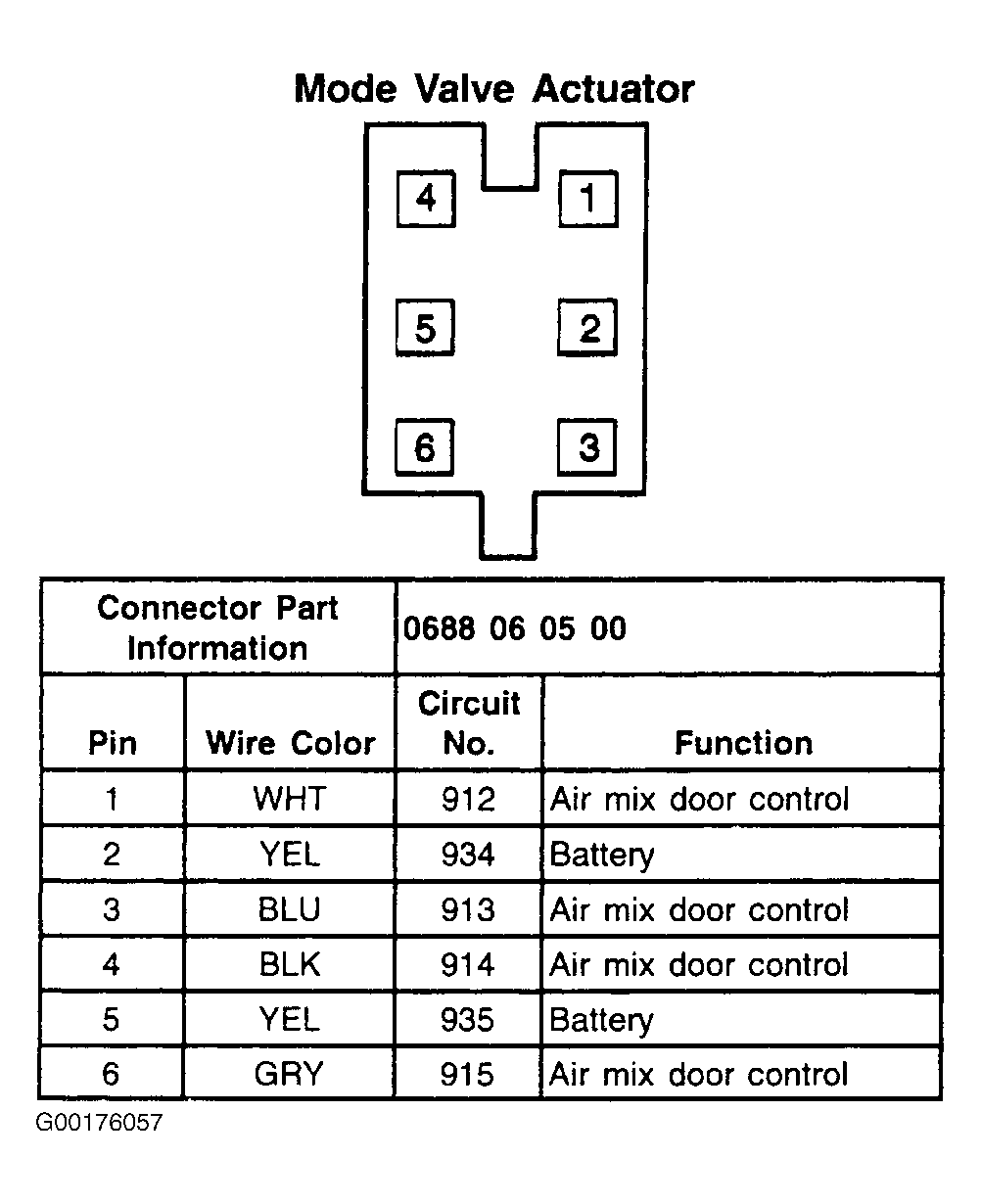

Fig 1: Mode Valve Actuator - 6-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
