Rear Compartment Lid Release Switch

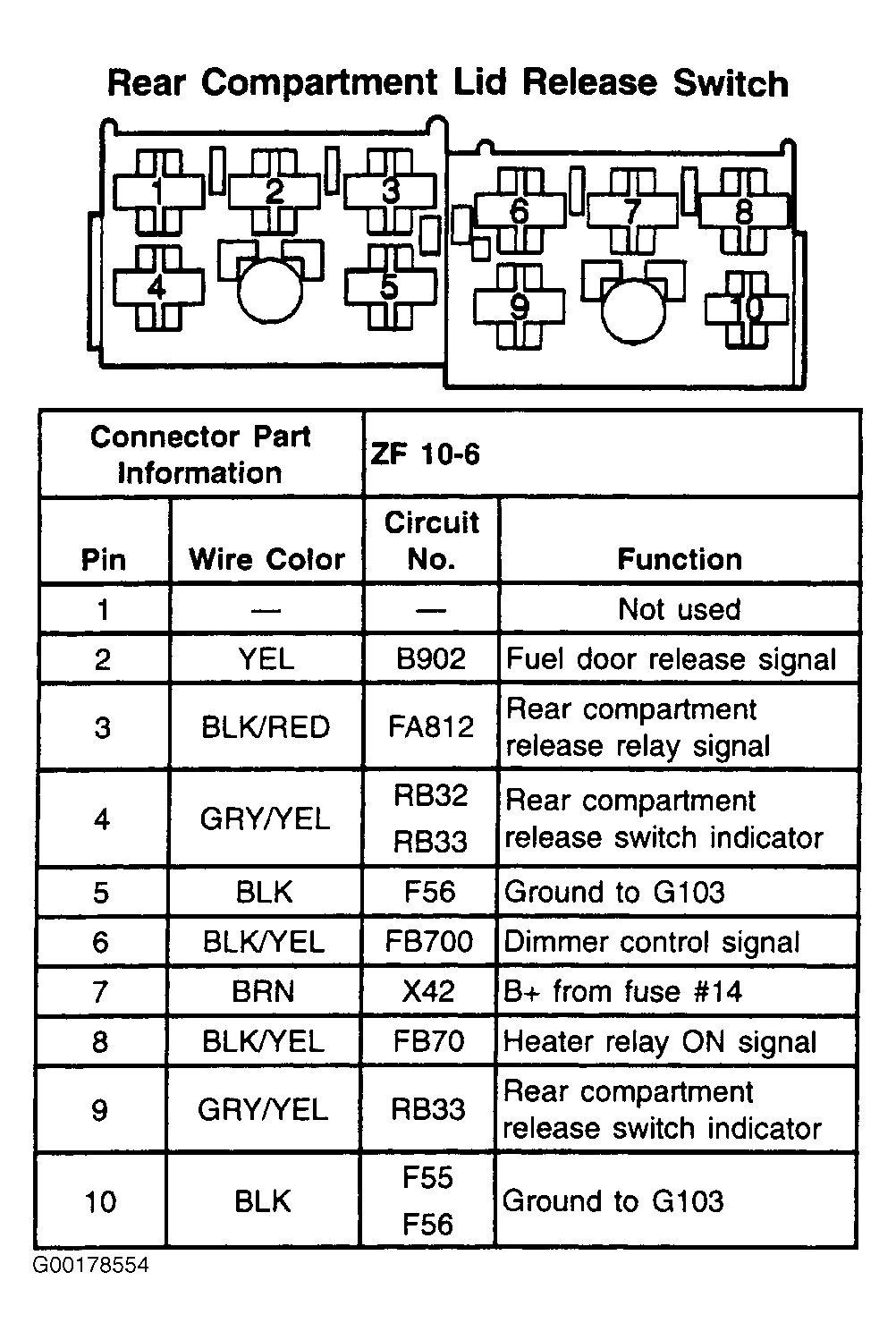

Fig 1: Rear Compartment Lid Release Switch - 10-Pin Connector
G00178554Courtesy of GENERAL MOTORS CORP.
