Wide Open Throttle (Wot) Switch
Wide Open Throttle (Wot) Switch

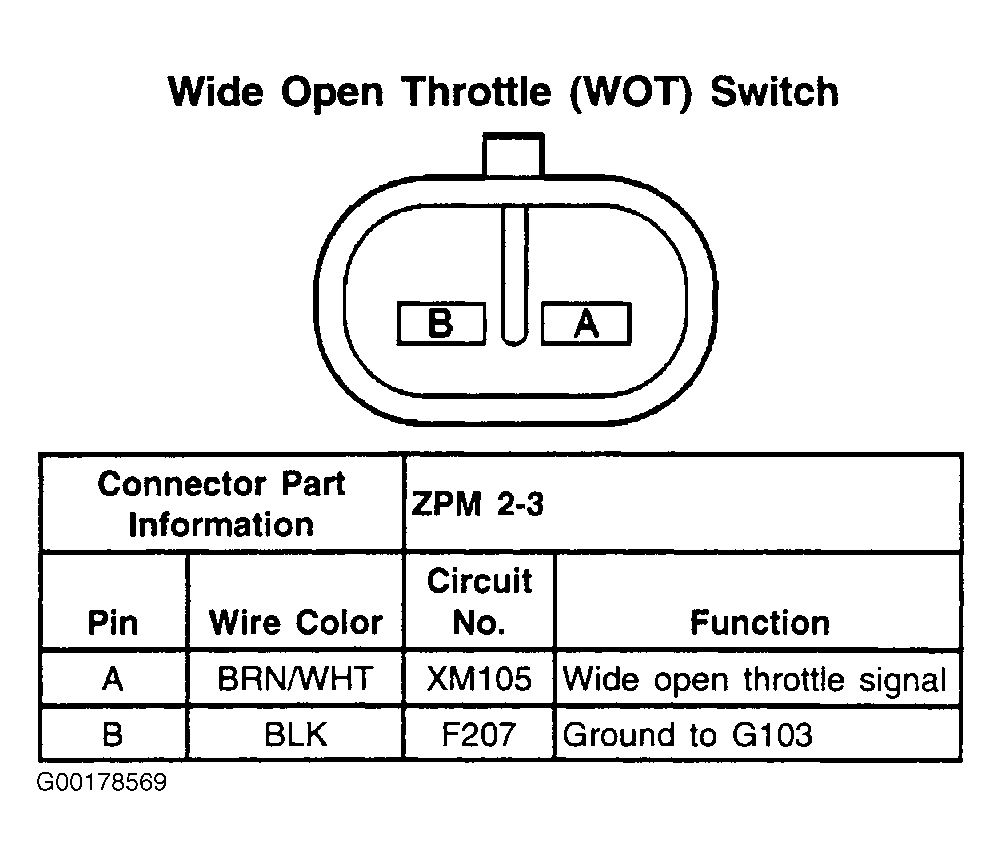

Fig 1: Wide Open Throttle (WOT) Switch - 2-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
