Home >> Cadillac >> 1996 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> System Diagram >> Upper Engine Components

Upper Engine Components

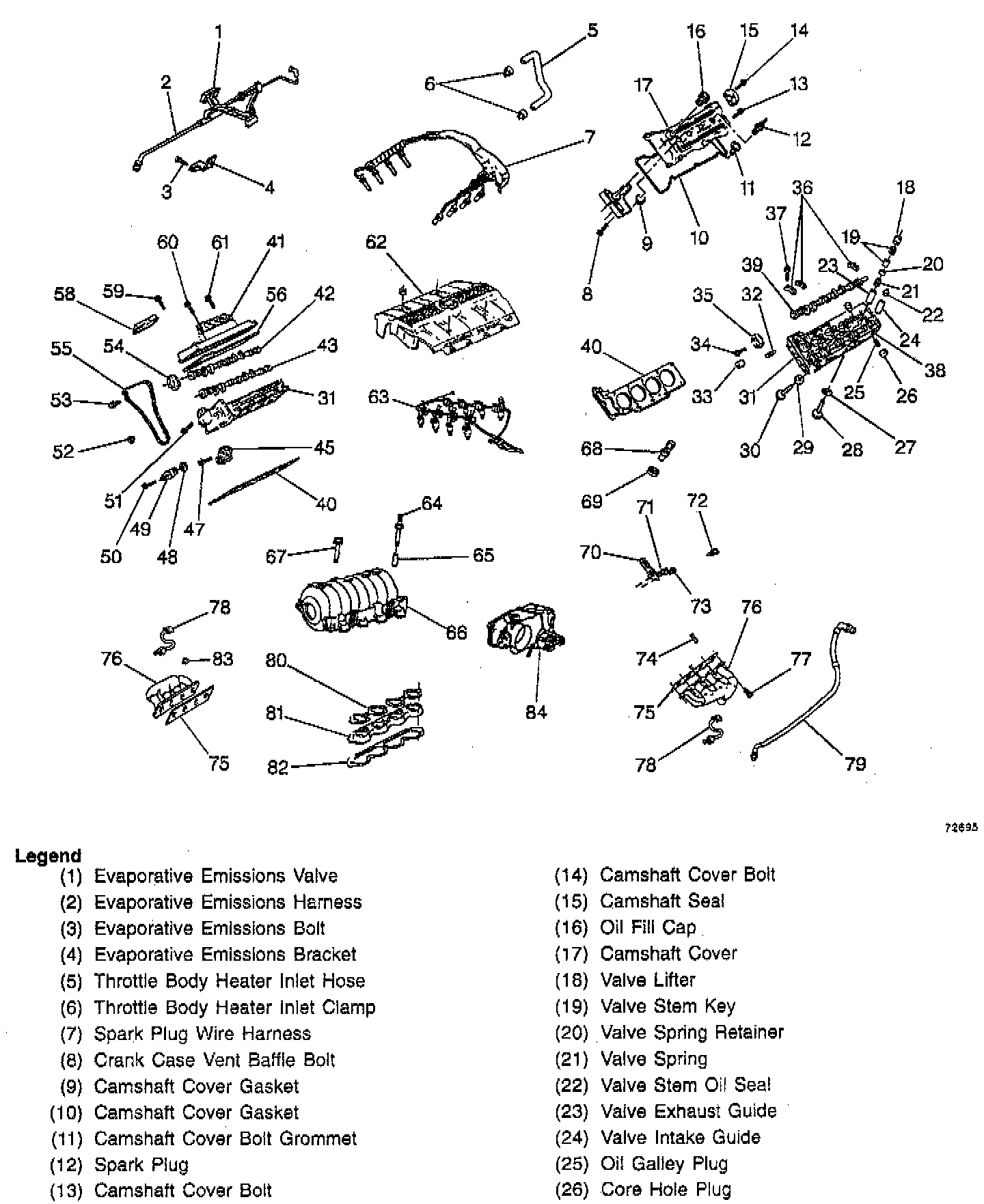

Part 1 Of 2:

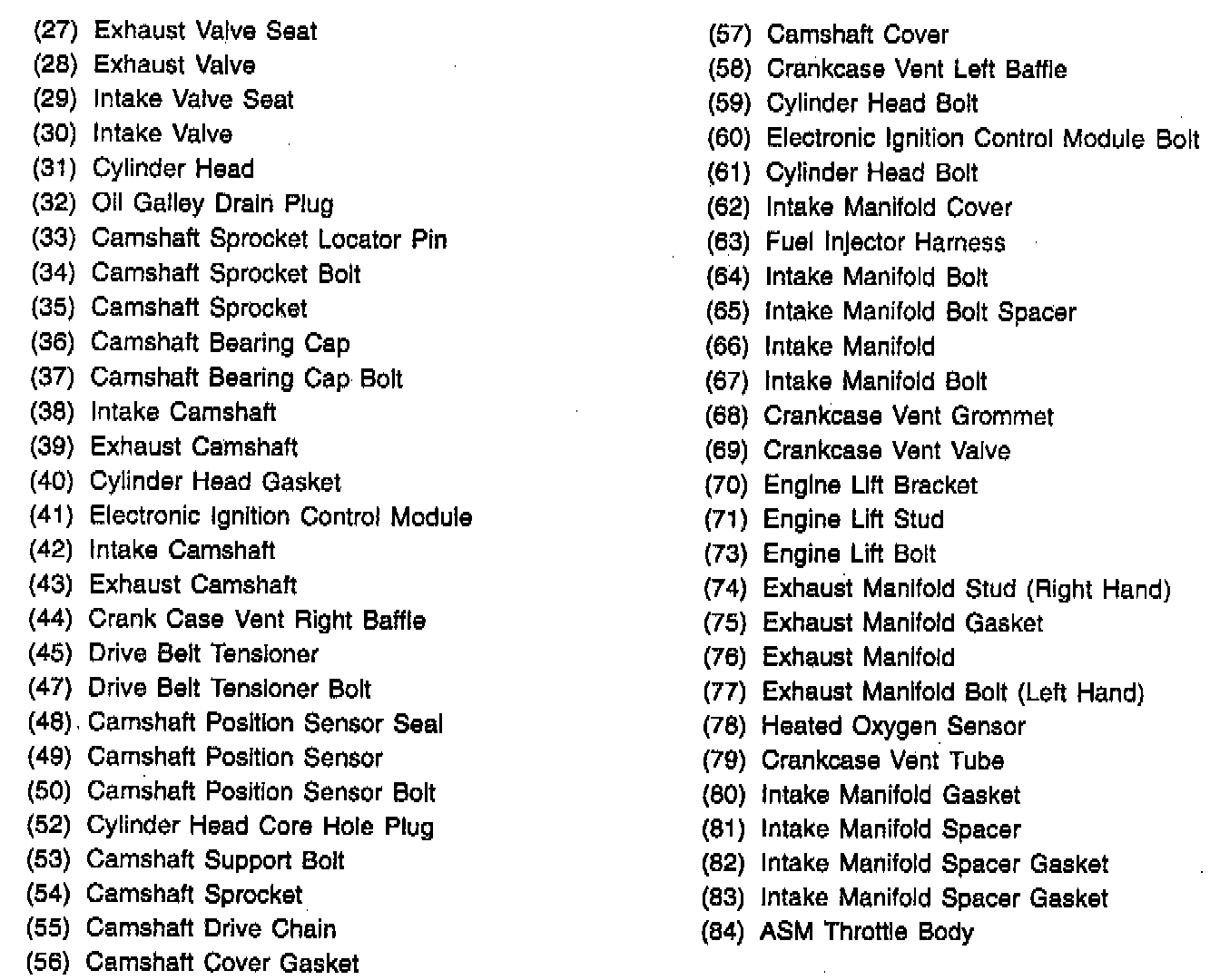

Part 2 Of 2:
