Home >> Cadillac >> 1996 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module HVAC >> C2 Heater & A/C Programmer

C2 Heater & A/C Programmer

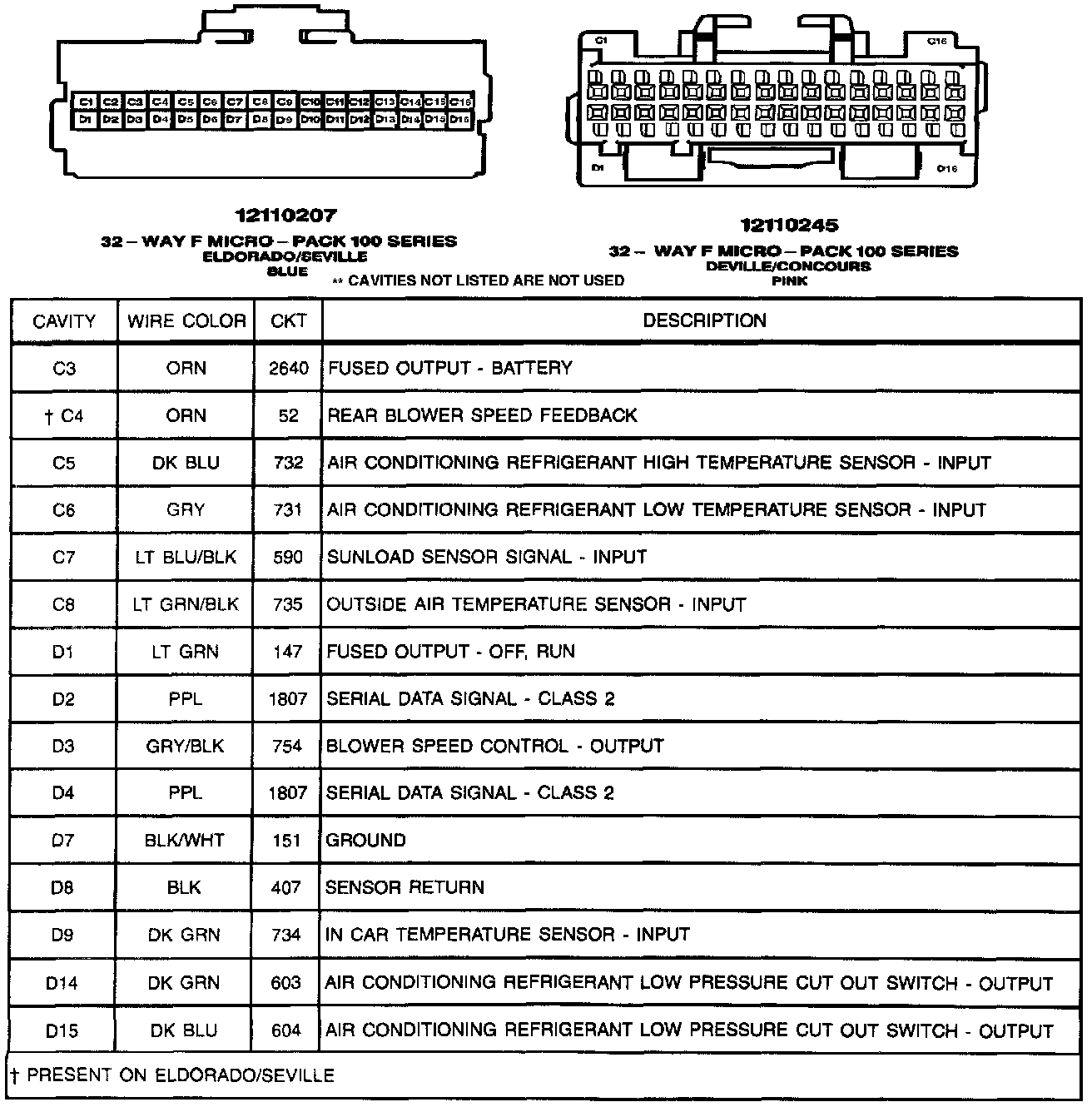

Heater And A/C Programmer (ACM) C2:
