Home >> Cadillac >> 1996 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

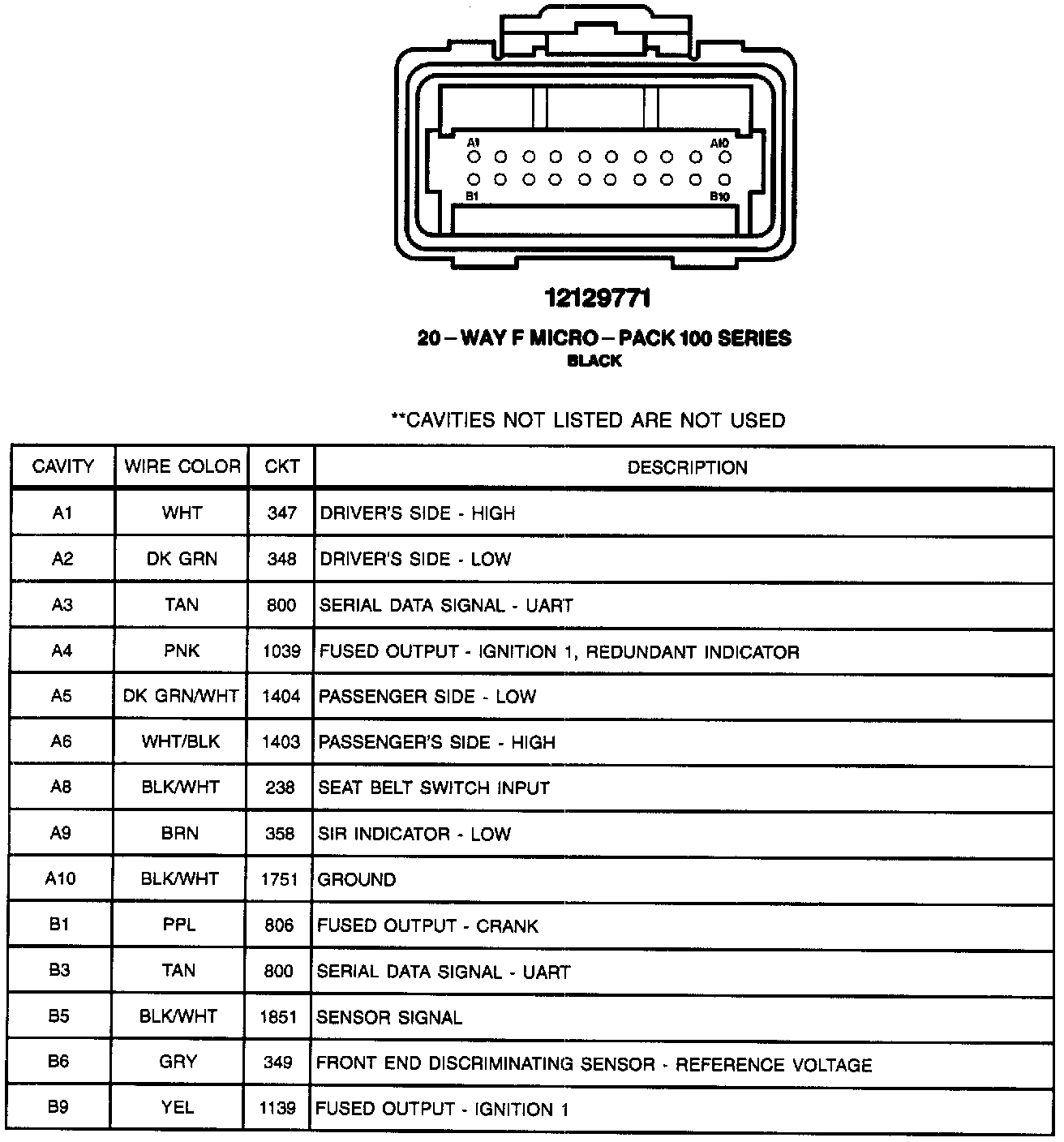

Air Bag Control Module

Sensing And Diagnostic Module (SDM):
