Home >> Cadillac >> 1996 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Components >> Modules >> Blower Resistor Module, Rear

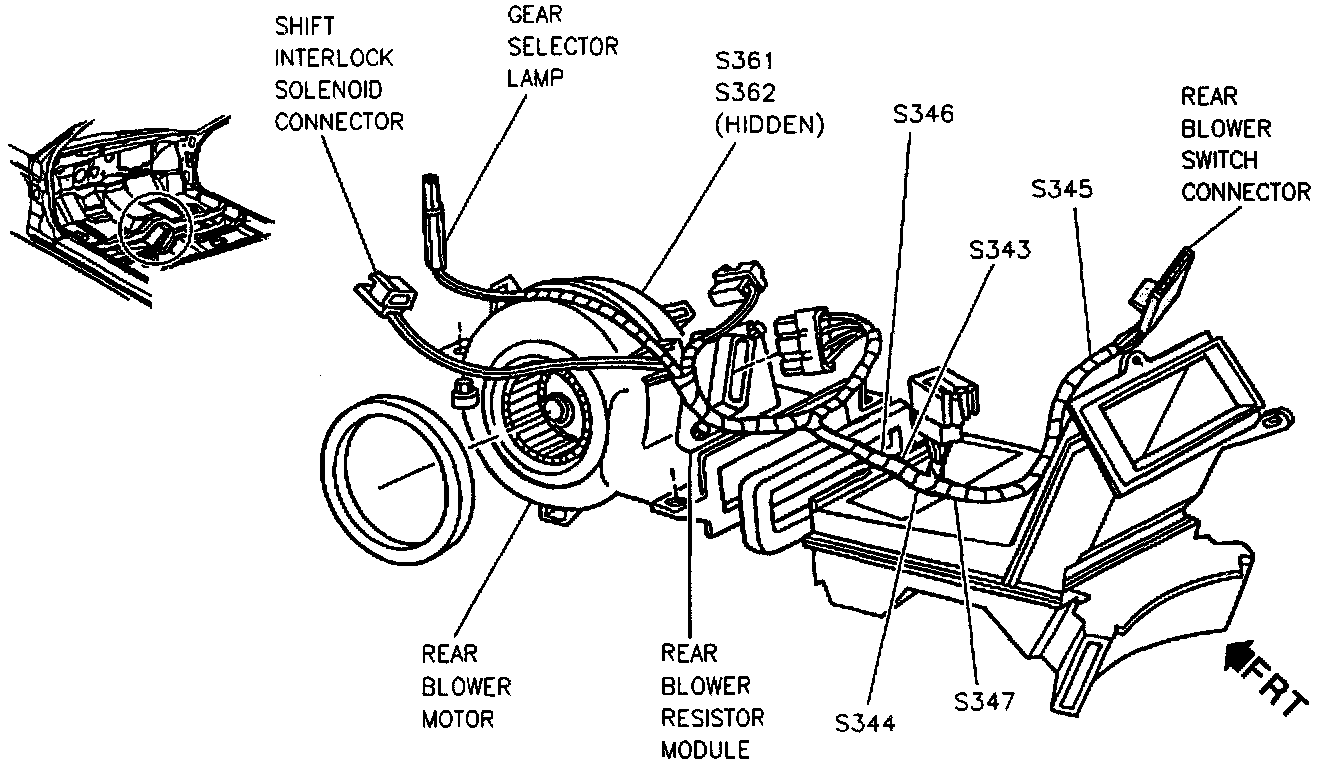

Blower Resistor Module, Rear

Under Center Console:
