Home >> Cadillac >> 1995 >> Seville V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Components >> Relays >> Electronic Level Control Relay

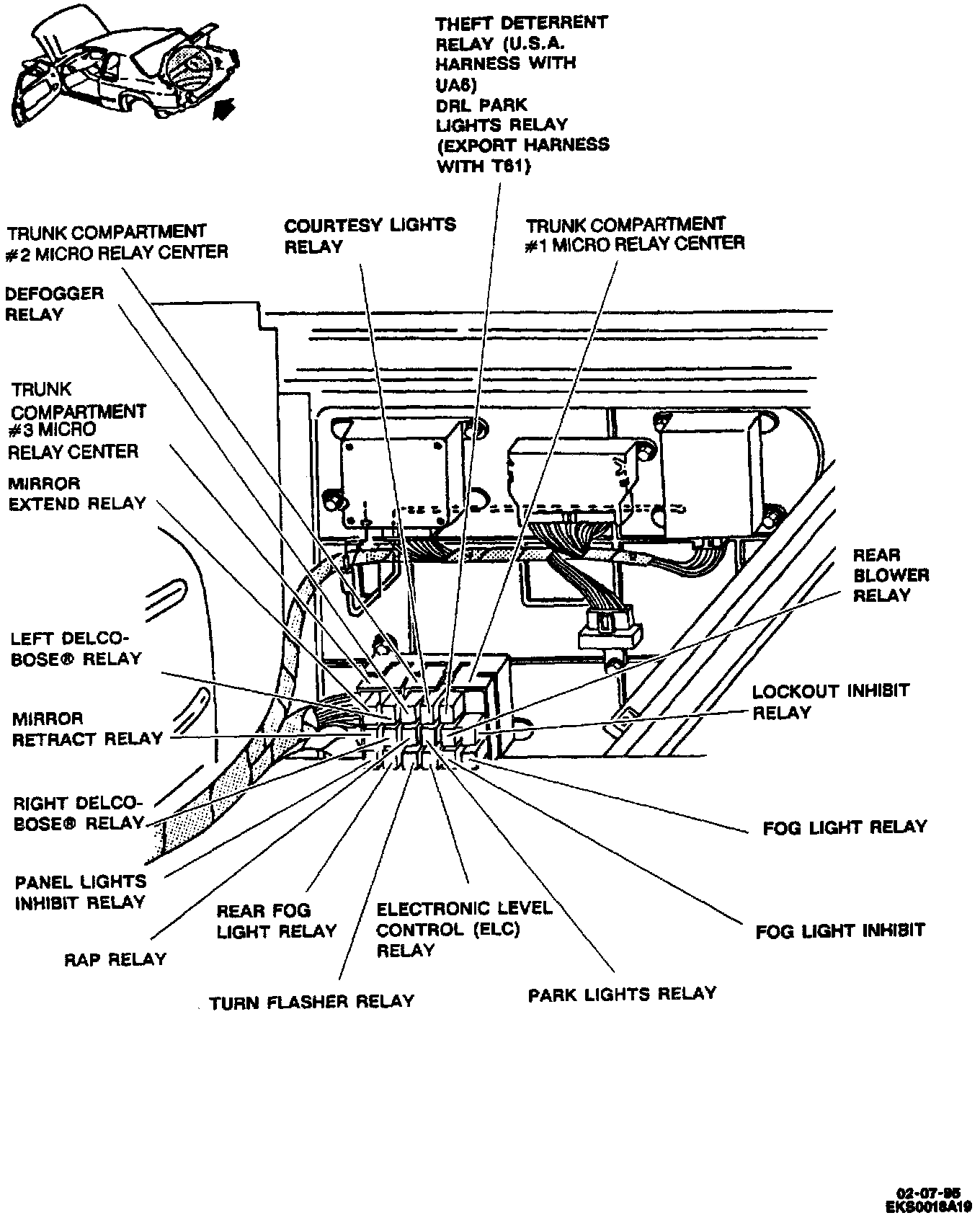

Electronic Level Control Relay

Electronics Bay (behind Panel):
