Home >> Cadillac >> 1995 >> Seville V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Generator

Generator

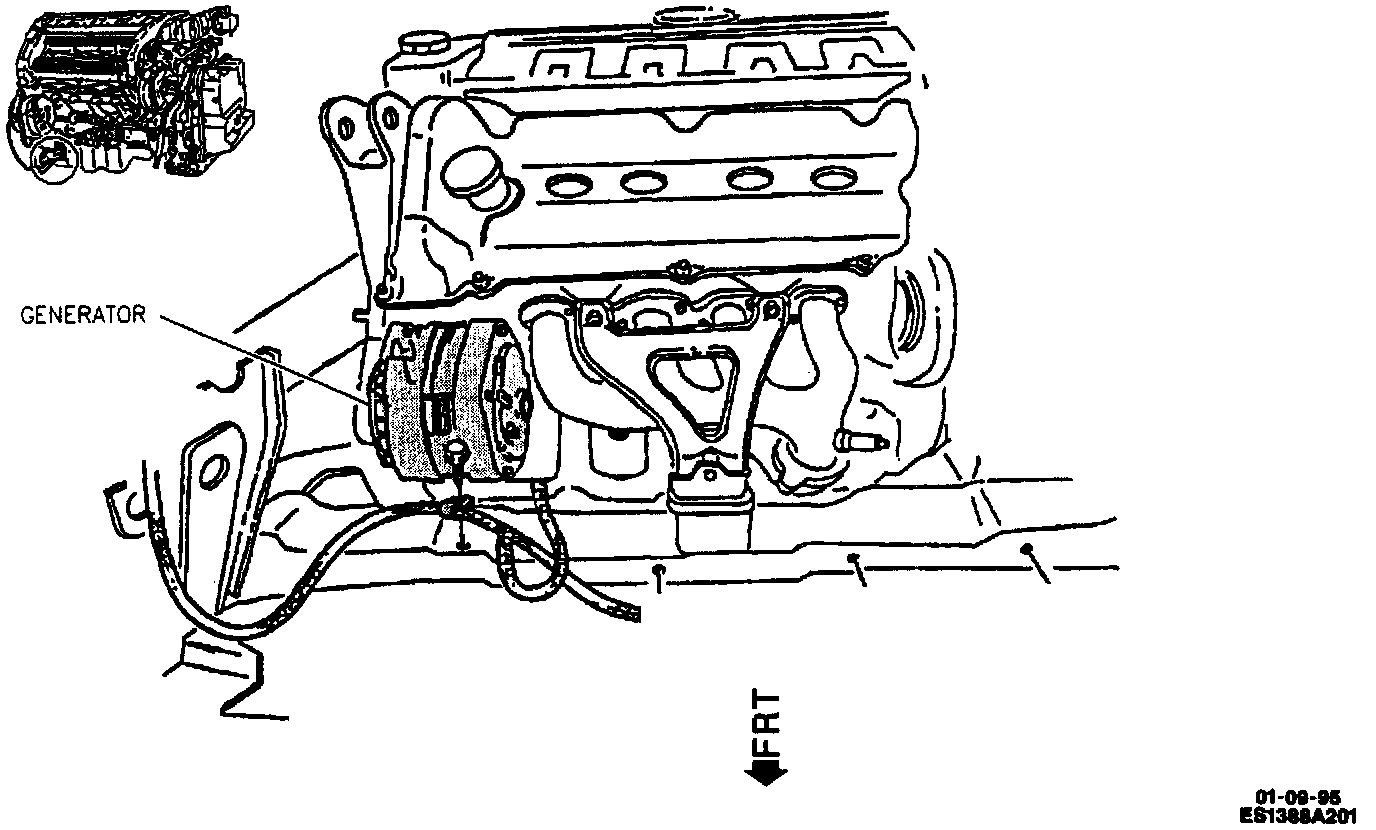

Lower Front Of Engine:

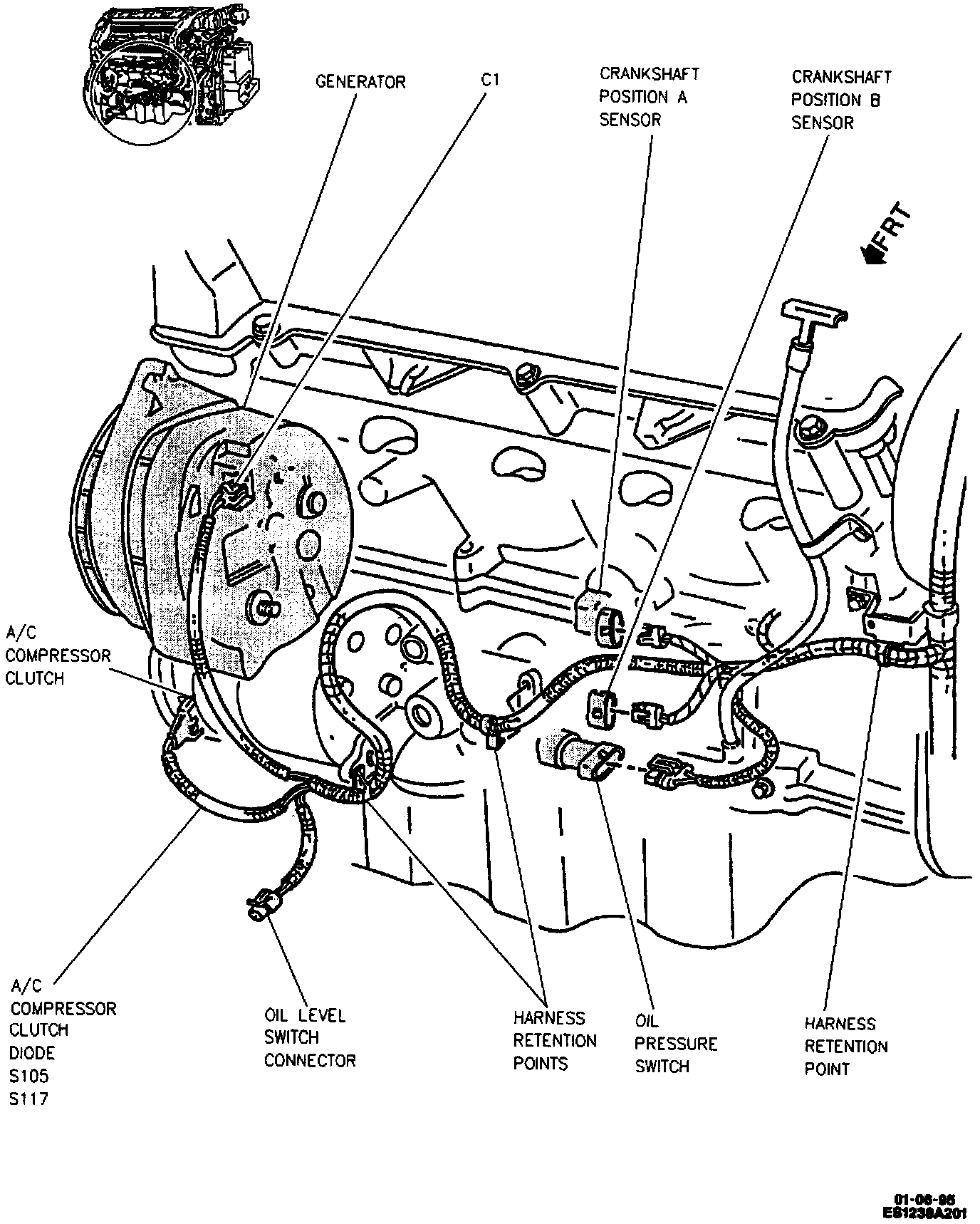

Front Of Engine:
