Transmission Control Systems



Automatic Transaxle

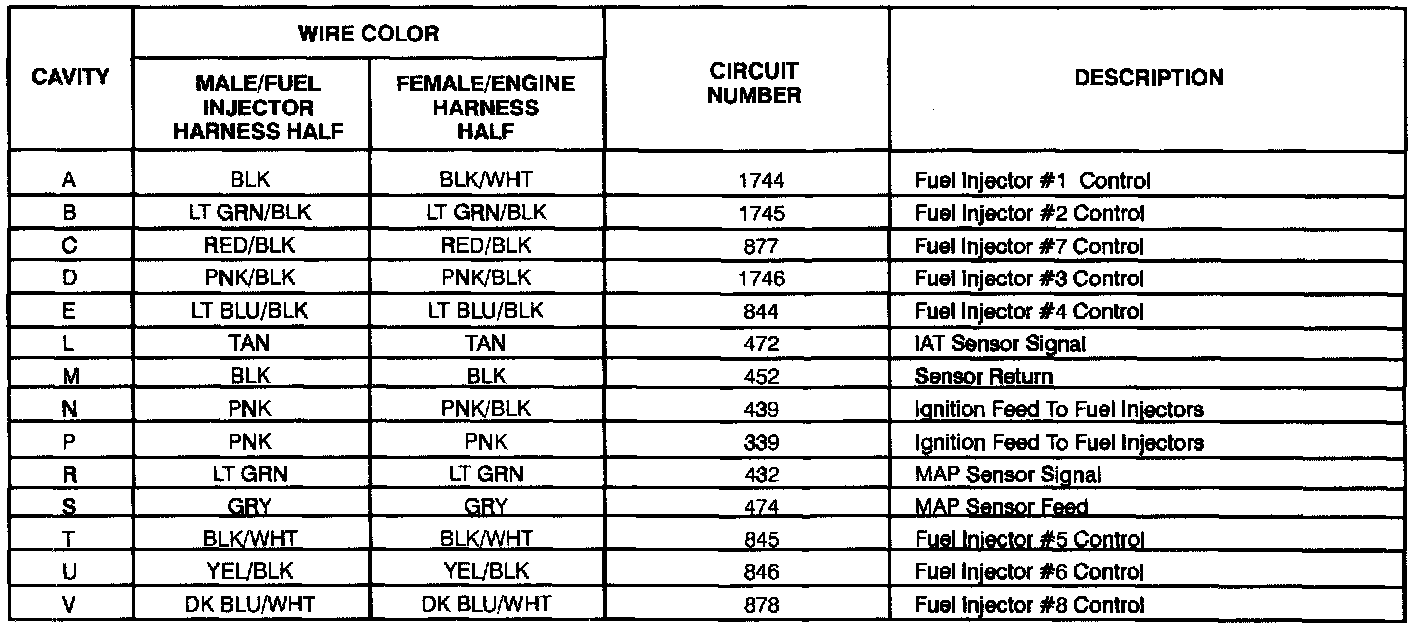

C1127

C127:




Harness Connector

C127:




Pinout Description

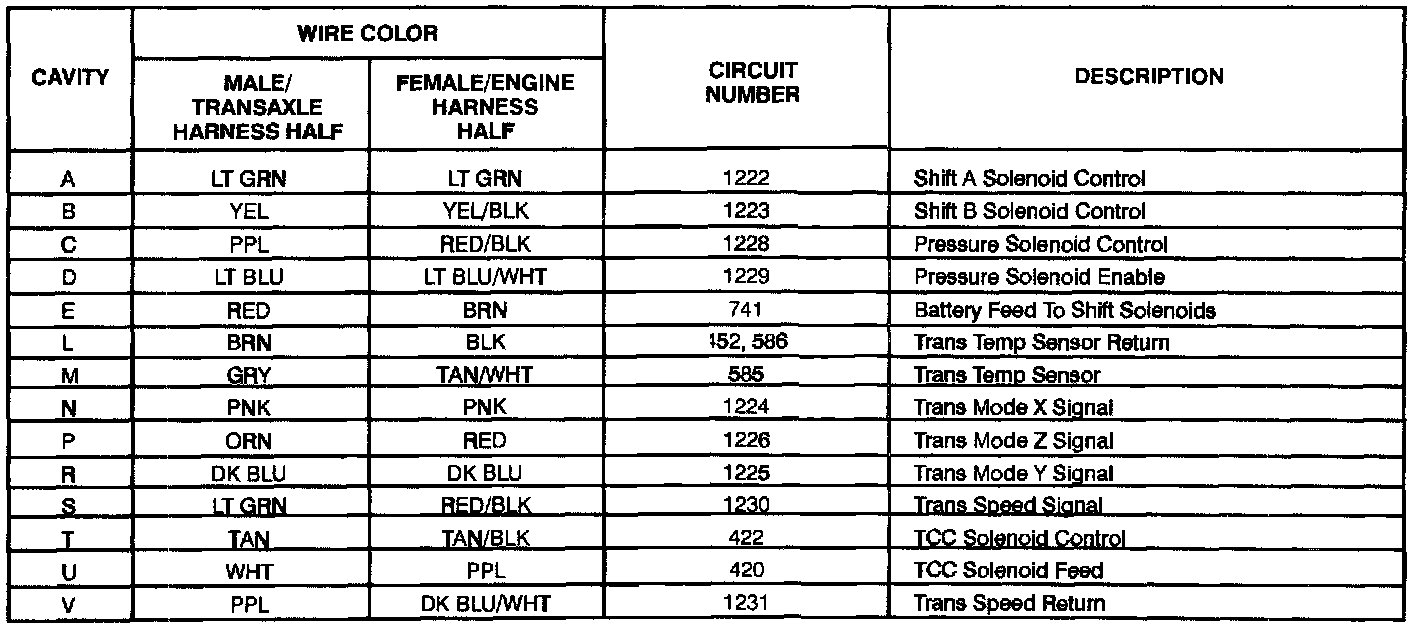

C129

C129:




Harness Connector

C129:




Pinout Description
