Home >> Cadillac >> 1994 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module >> Pinout Description

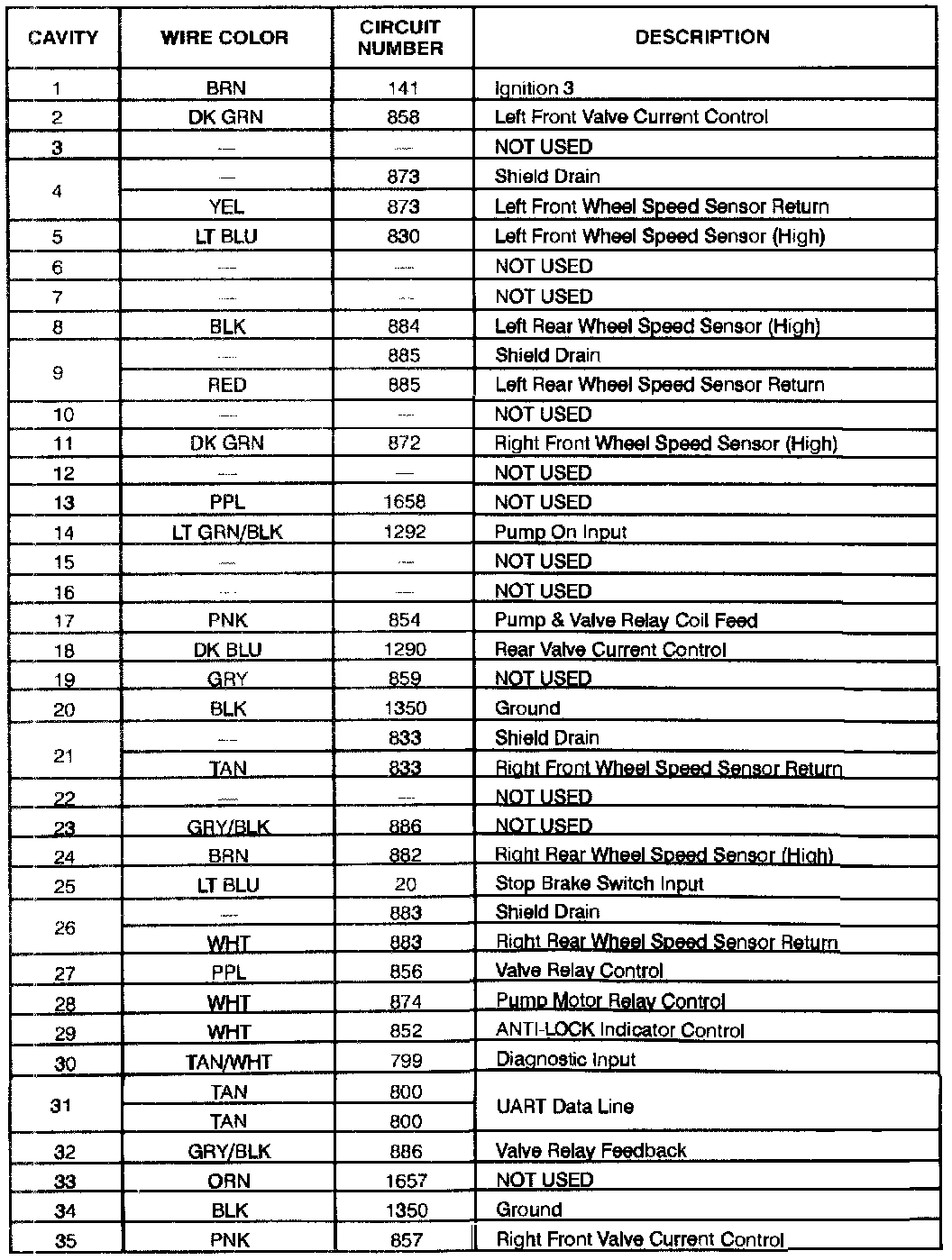

Pinout Description

Electronic Brake Control Module (EBCM):
