Home >> Cadillac >> 1994 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Components >> Modules >> Twilight Sentinel/Daytime Running Lights Module

Twilight Sentinel/Daytime Running Lights Module

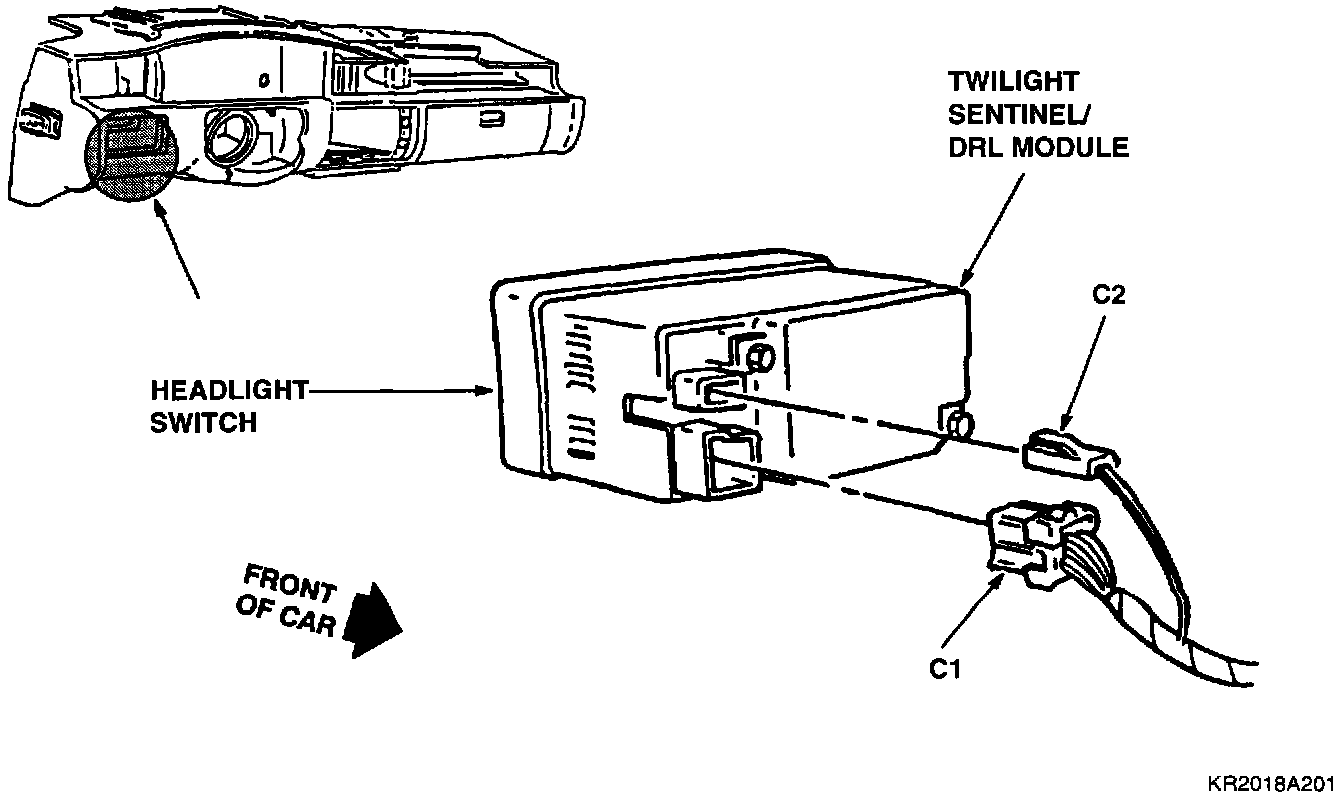

Behind LH Side Of I/P, Left Of Steering Column:

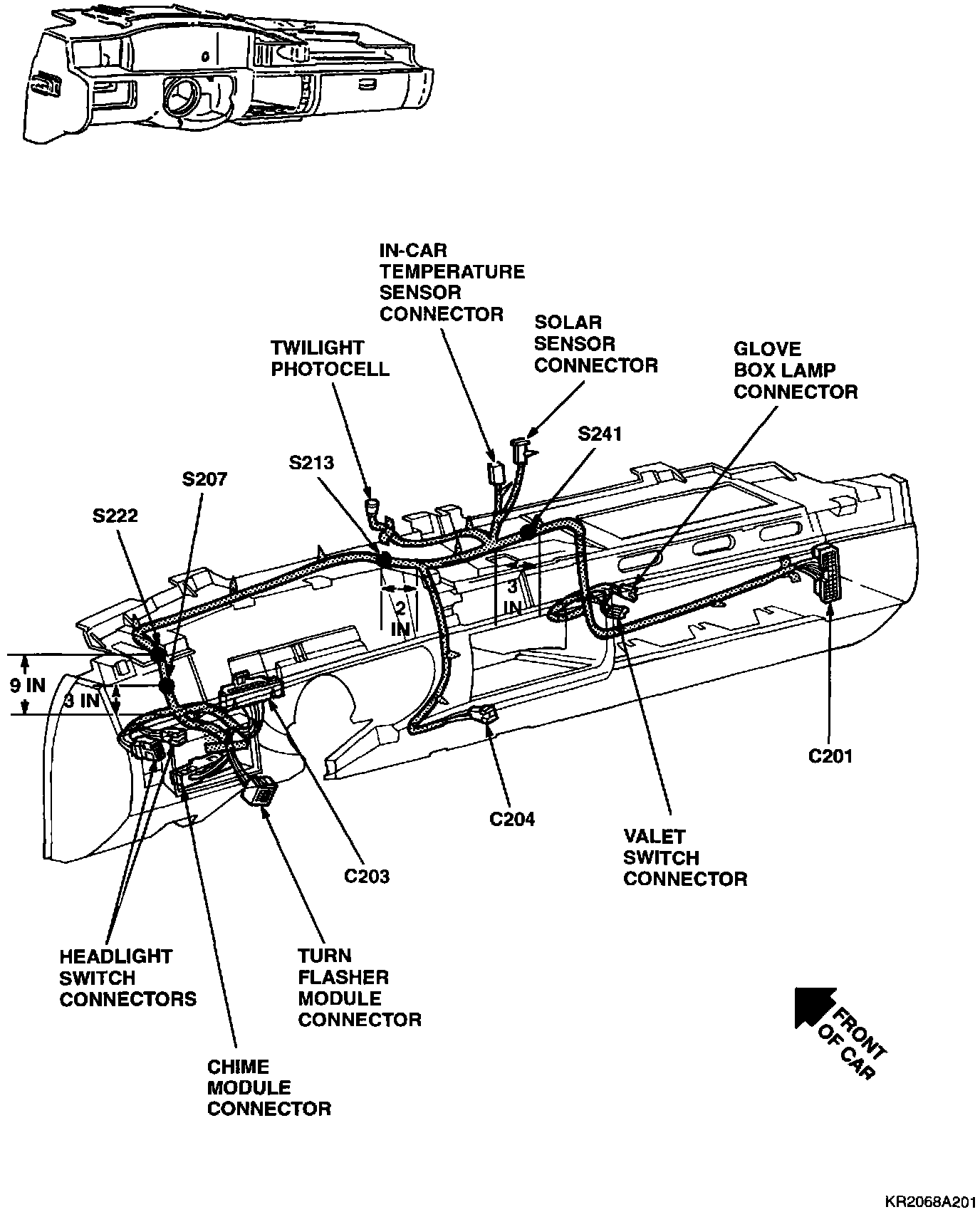

I/P Harness:

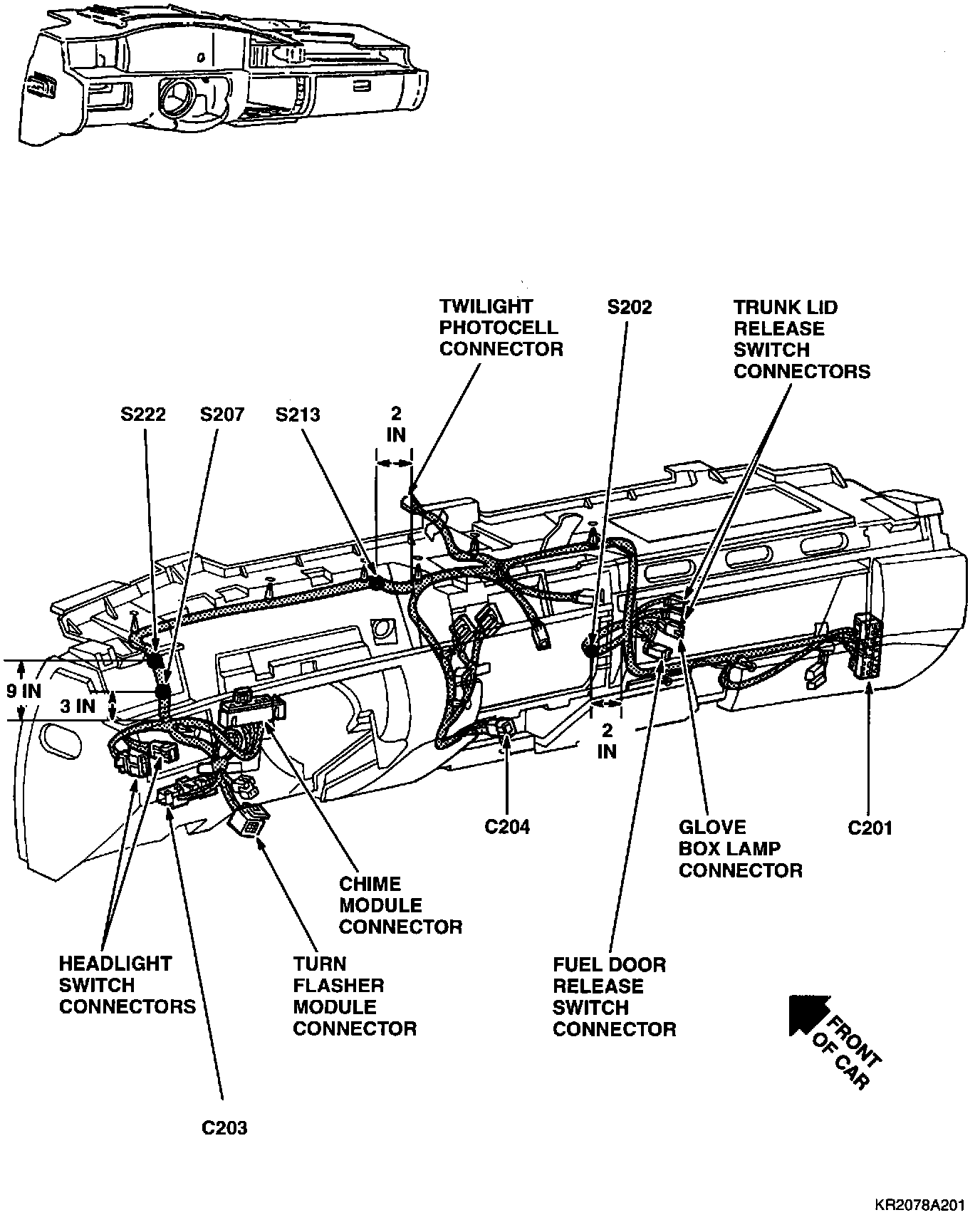

I/P Harness:
