Home >> Cadillac >> 1993 >> Seville V8-300 4.9L >> Repair and Diagnosis >> Powertrain Management >> Locations

Powertrain Management: Locations

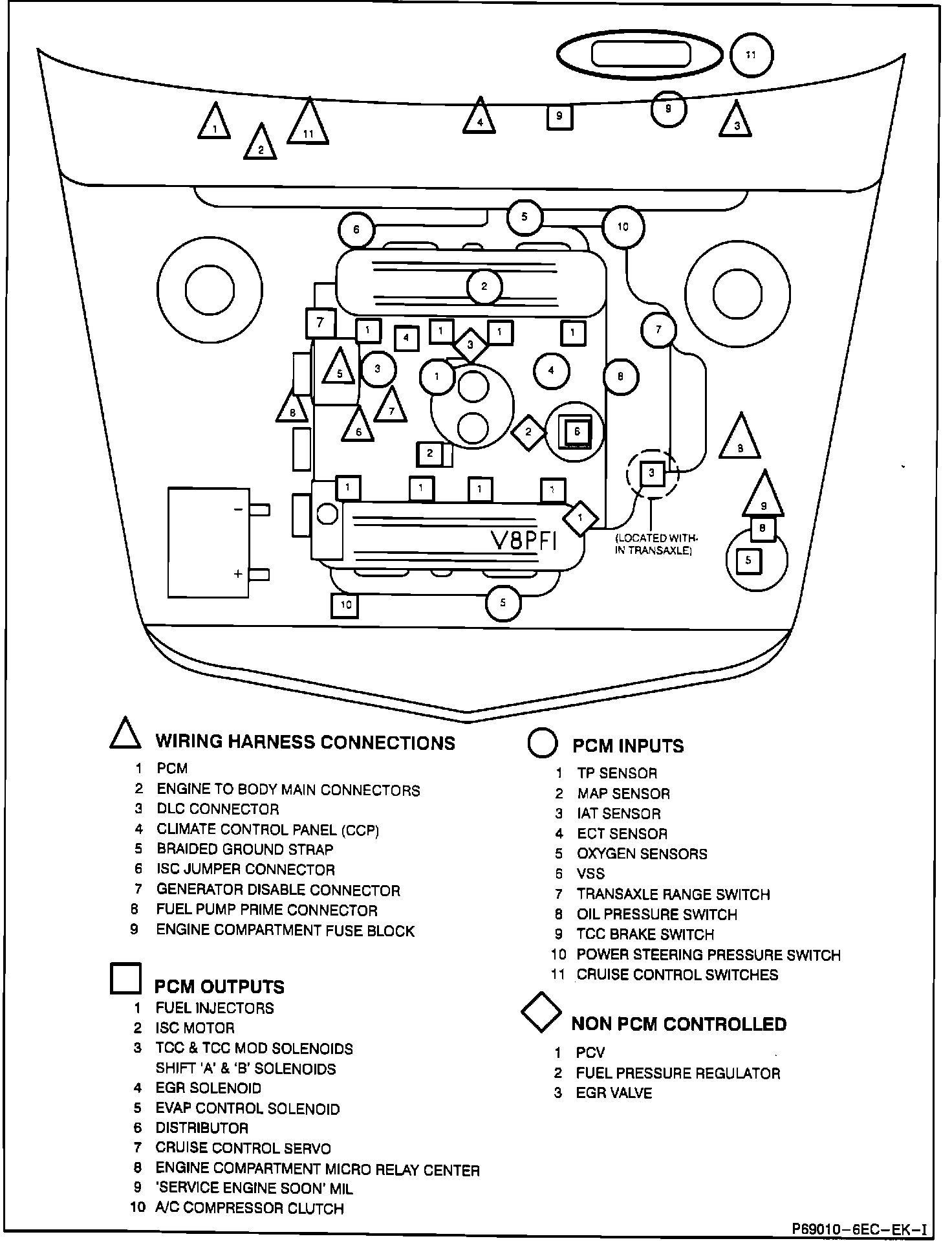

Underhood Block Diagram:
