Home >> Cadillac >> 1993 >> Seville V8-281 4.6L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Power Steering Pressure Switch >> Locations

Power Steering Pressure Switch: Locations

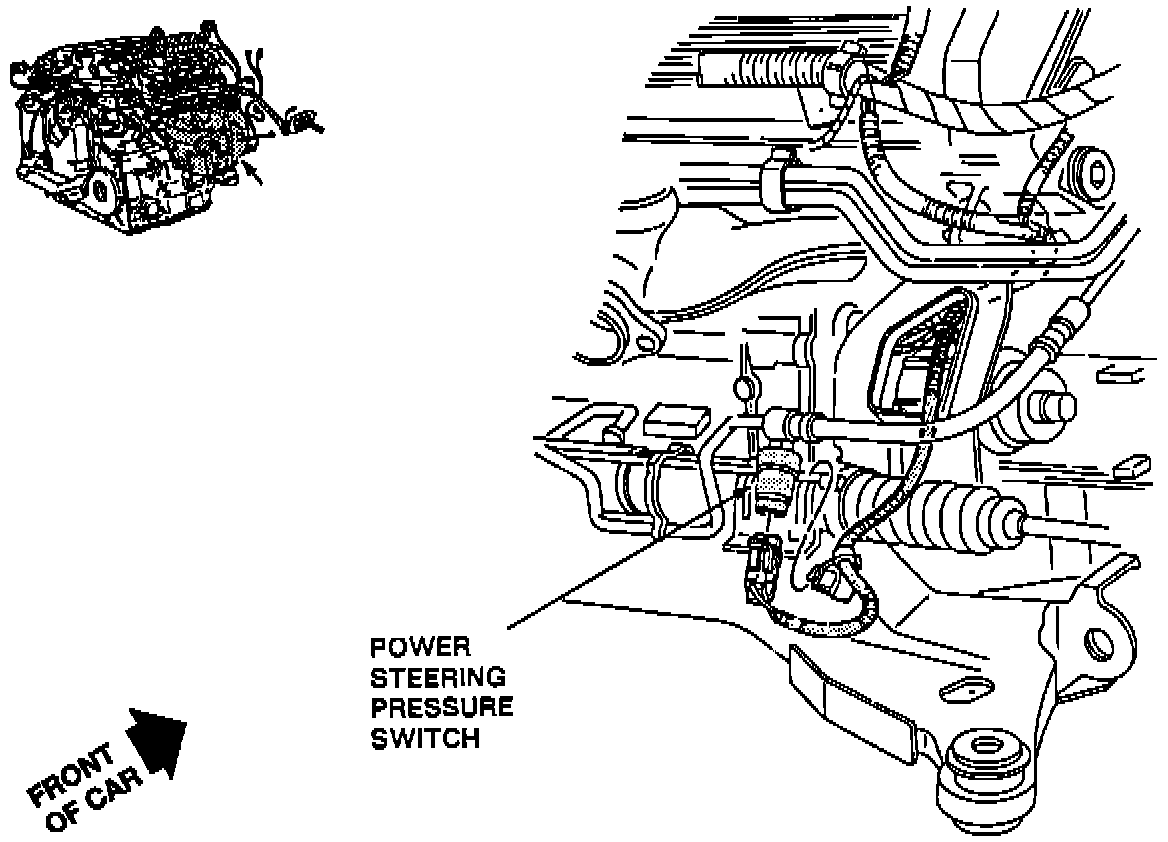

Pictorial View:






Lower RH rear of engine, mounted on power steering pressure hose. (early production only.)


Pictorial View:






Lower RH rear of engine, mounted on power steering pressure hose. (late production only.)
