Home >> Cadillac >> 1993 >> Seville V8-281 4.6L >> Repair and Diagnosis >> Diagrams >> Components >> Modules >> Seat Heater Relay Module

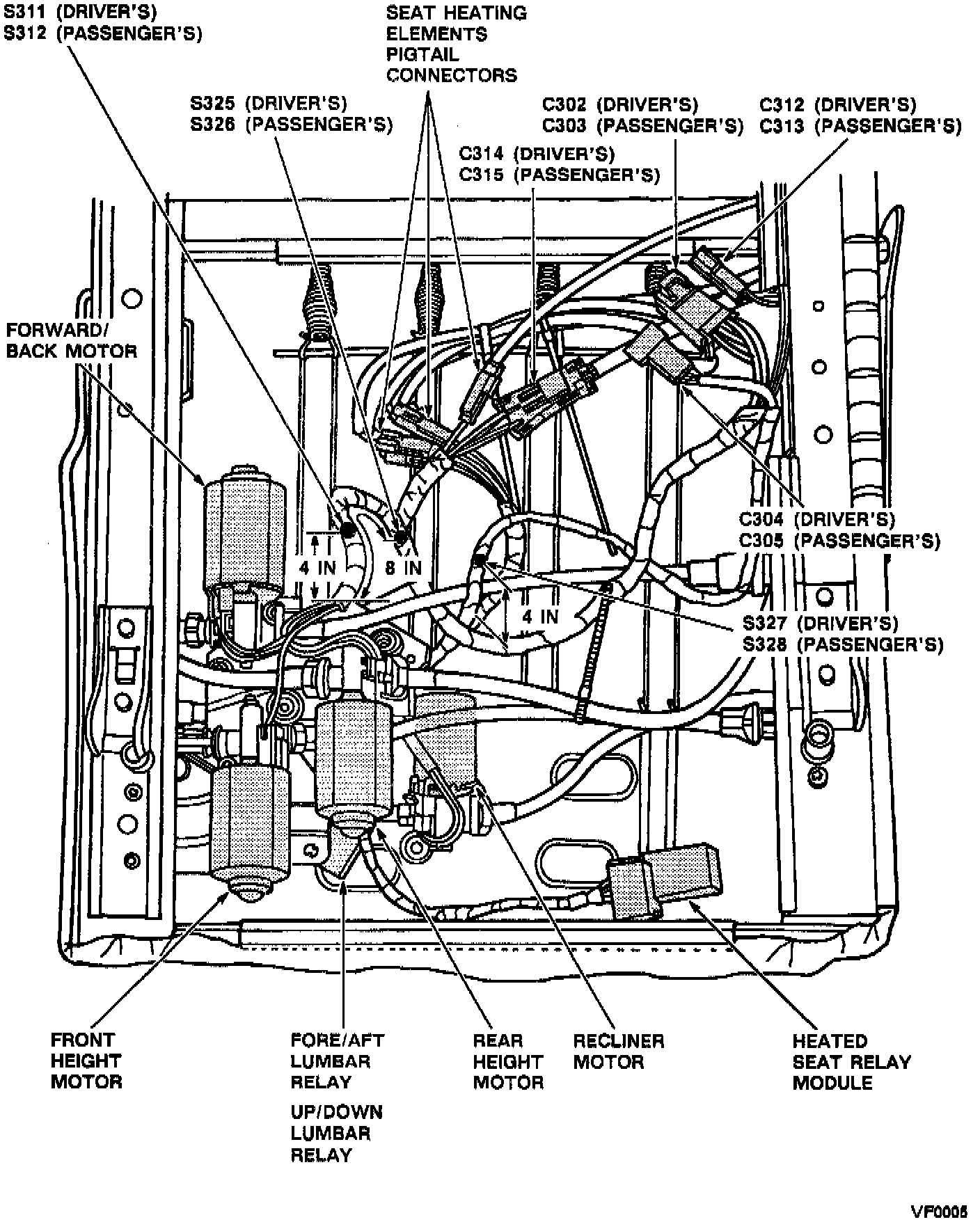

Seat Heater Relay Module

Under Drivers Seat:
