Cruise Control Servo: Testing and Inspection

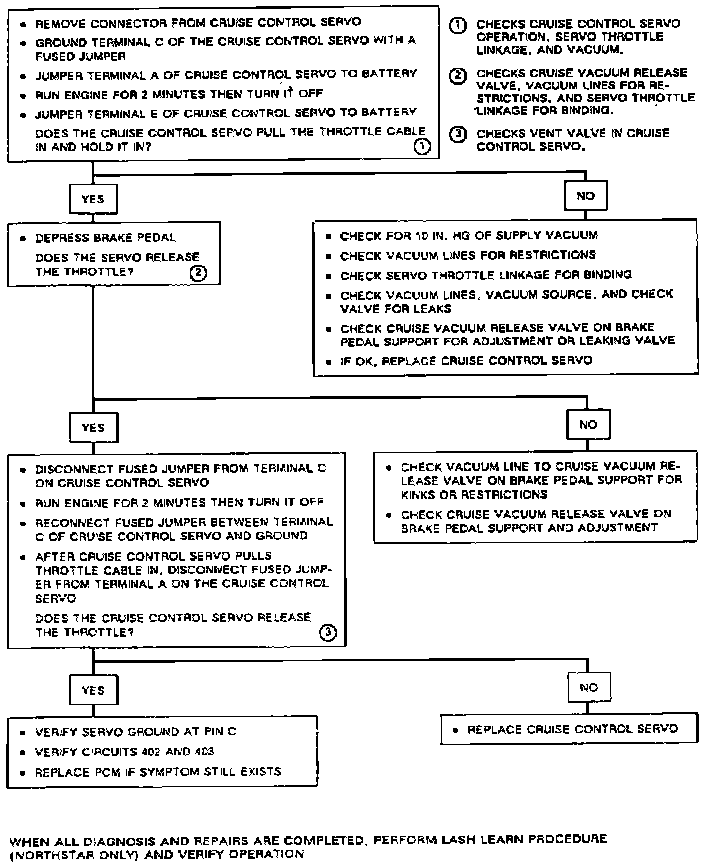

Fig. 27 Diagnostic Procedure C: Cruise Control Servo Test:
