System Operation Check

If only the express down feature does not function properly, see Fig 1 . For other symptoms, see WIRING DIAGRAMS  and OPERATION  to troubleshoot system.

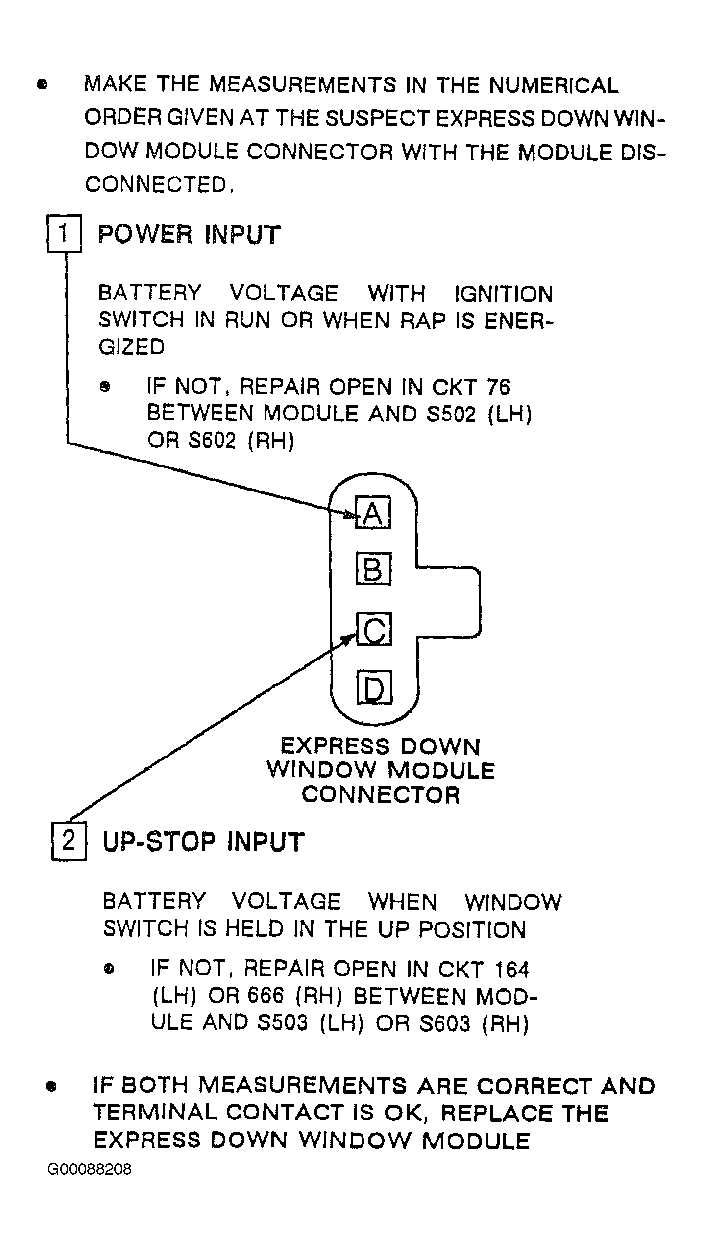

Fig 1: Test A: Express Down Does Not Operate

Courtesy of GENERAL MOTORS CORP.
