Door Window Regulator Module: Removal

1. Remove door lower trim panel. See DOOR LOWER TRIM PANEL  .
2. Remove door upper trim panel. See DOOR UPPER TRIM PANEL  .
3. Remove door speaker.
4. Remove water deflector. See .
5. Disconnect fore/aft adjustment screw from window sash. See ADJUSTMENTS  .
6. Place clamps on front and rear run channels, directly below window guide blocks. This prevents the window from moving once the window regulator module (1) is removed. See Fig 1 .
7. Remove bolts (3) retaining window regulator module (1).
8. Move window regulator module rearward until the rear plastic slider is released from window sash.
9. Move window regulator module forward until the front plastic slider is released from the window wash.
10. Remove window regulator module.

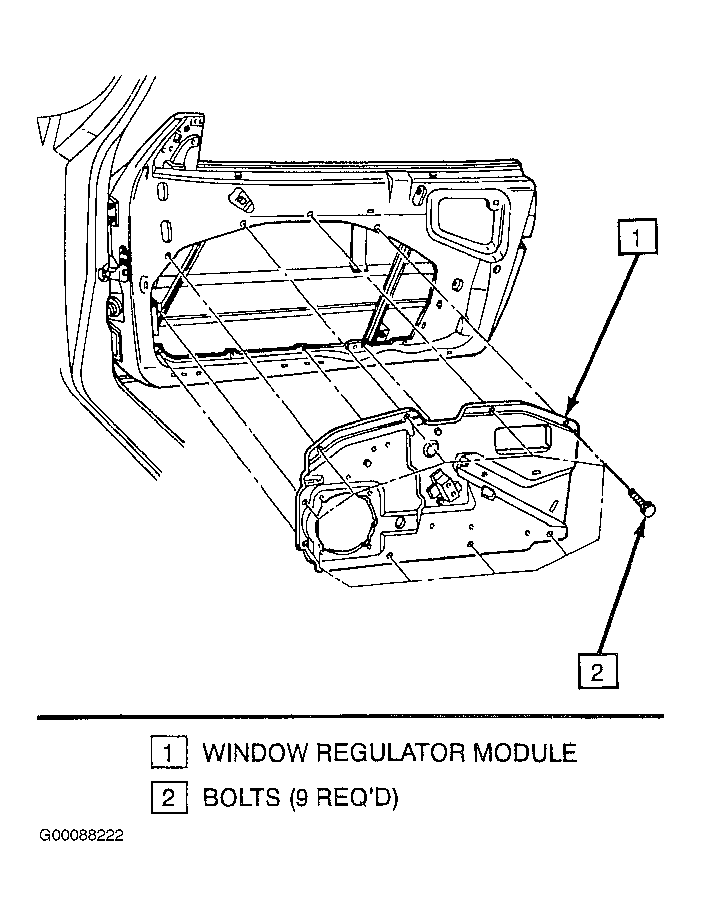

Fig 1: Removing Door Window Regulator Module

Courtesy of GENERAL MOTORS CORP.
