System Specifications

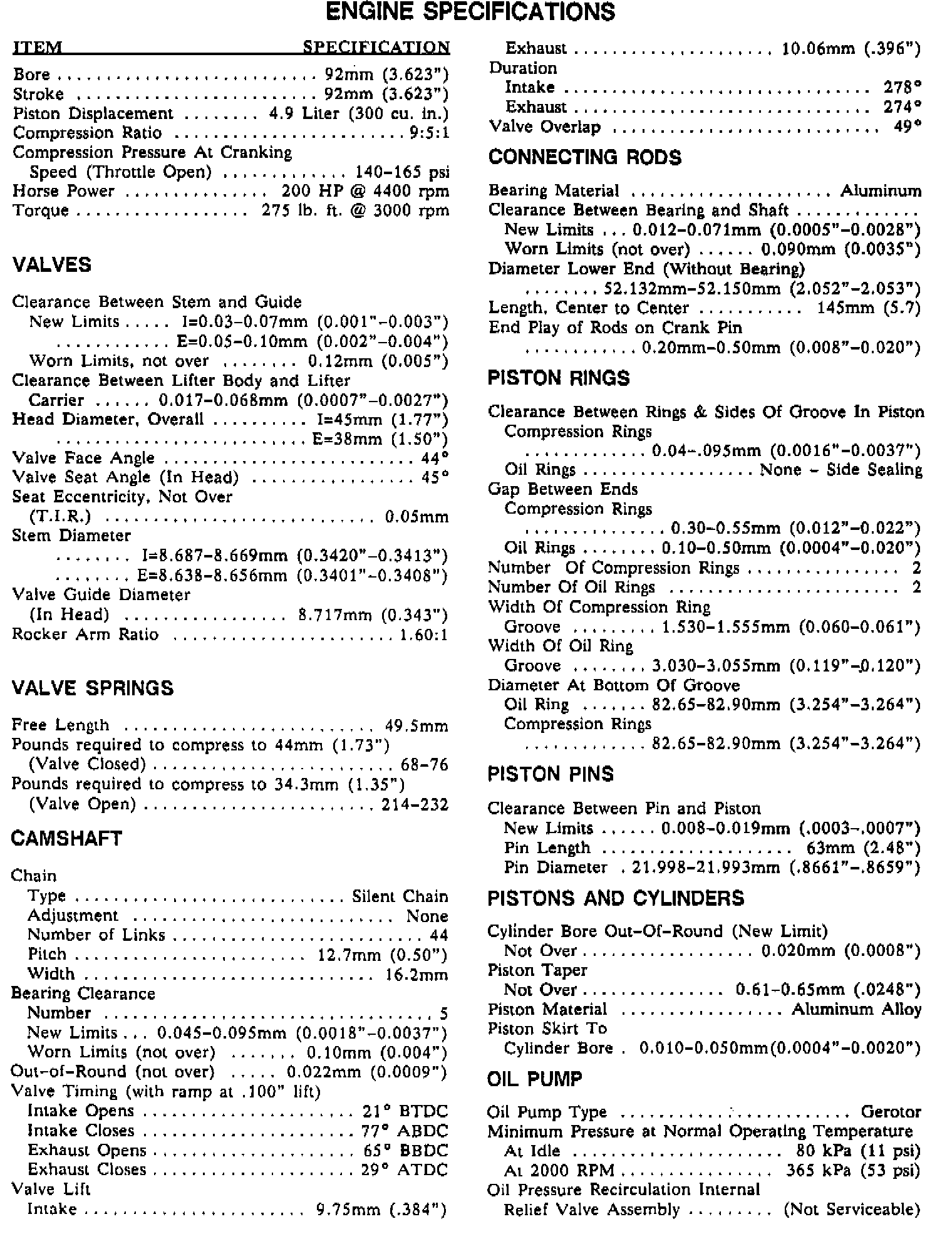

Engine Specifications:

Engine Specifications (continued):

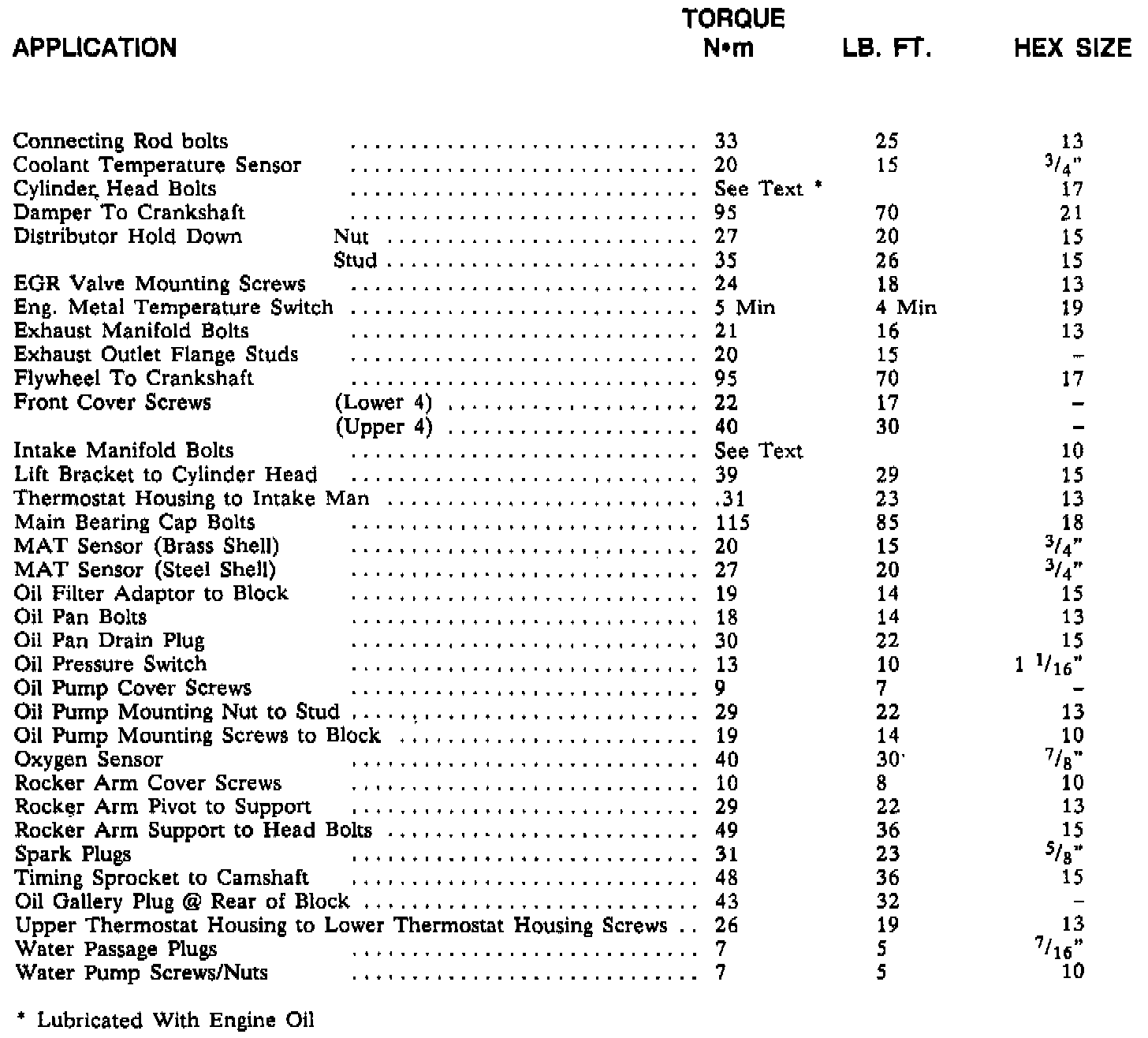

Torque Specifications:

Cylinder Head Sequence:

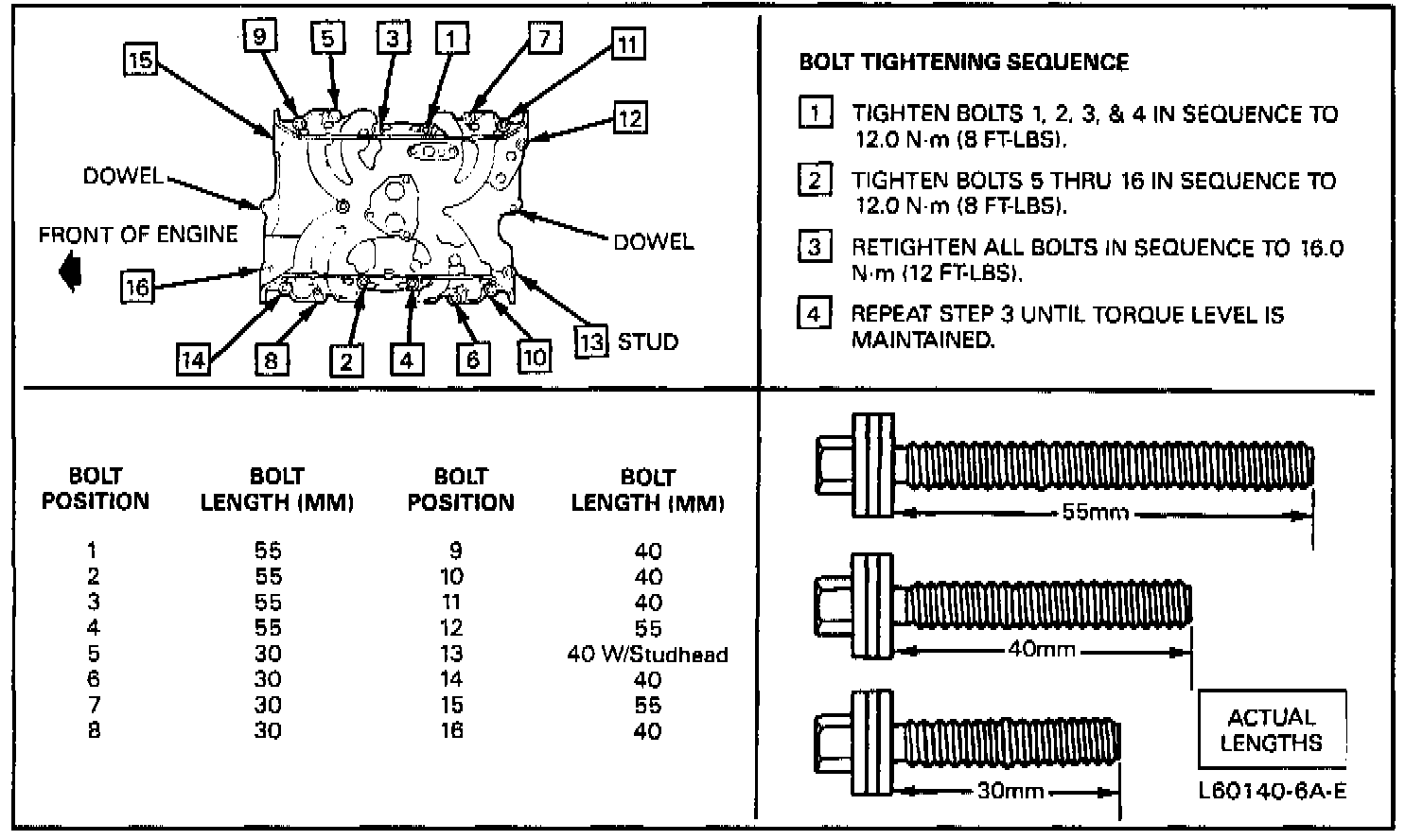

Intake Manifold Sequence:
