Home >> Cadillac >> 1992 >> Seville V8-300 4.9L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations >> Engine Compartment Fuse Block

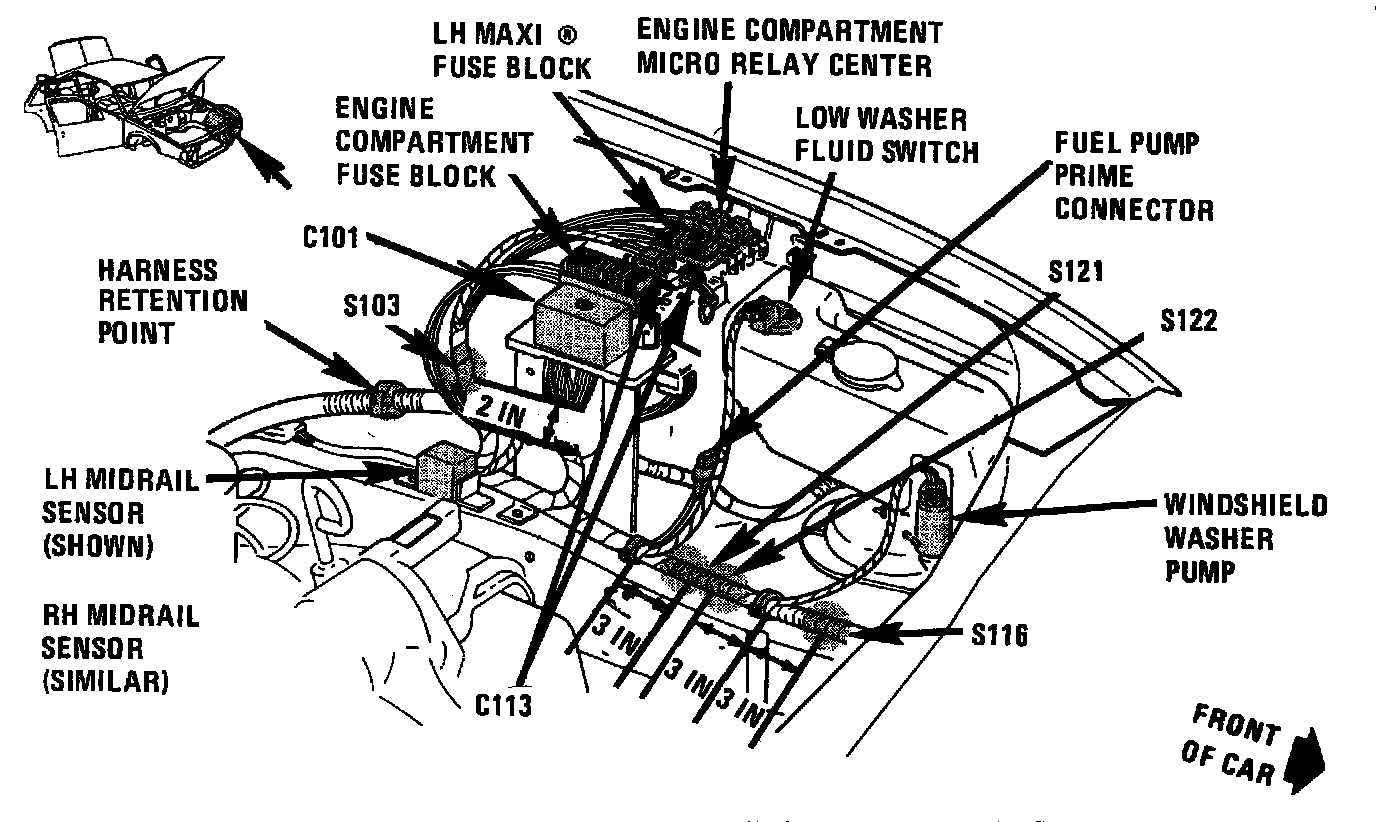

Engine Compartment Fuse Block

LH Side Of Engine Compartment, On Wheelhouse:
