Home >> Cadillac >> 1992 >> Seville V8-300 4.9L >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Micro-Relay Center >> Engine Compartment Micro Relay Center

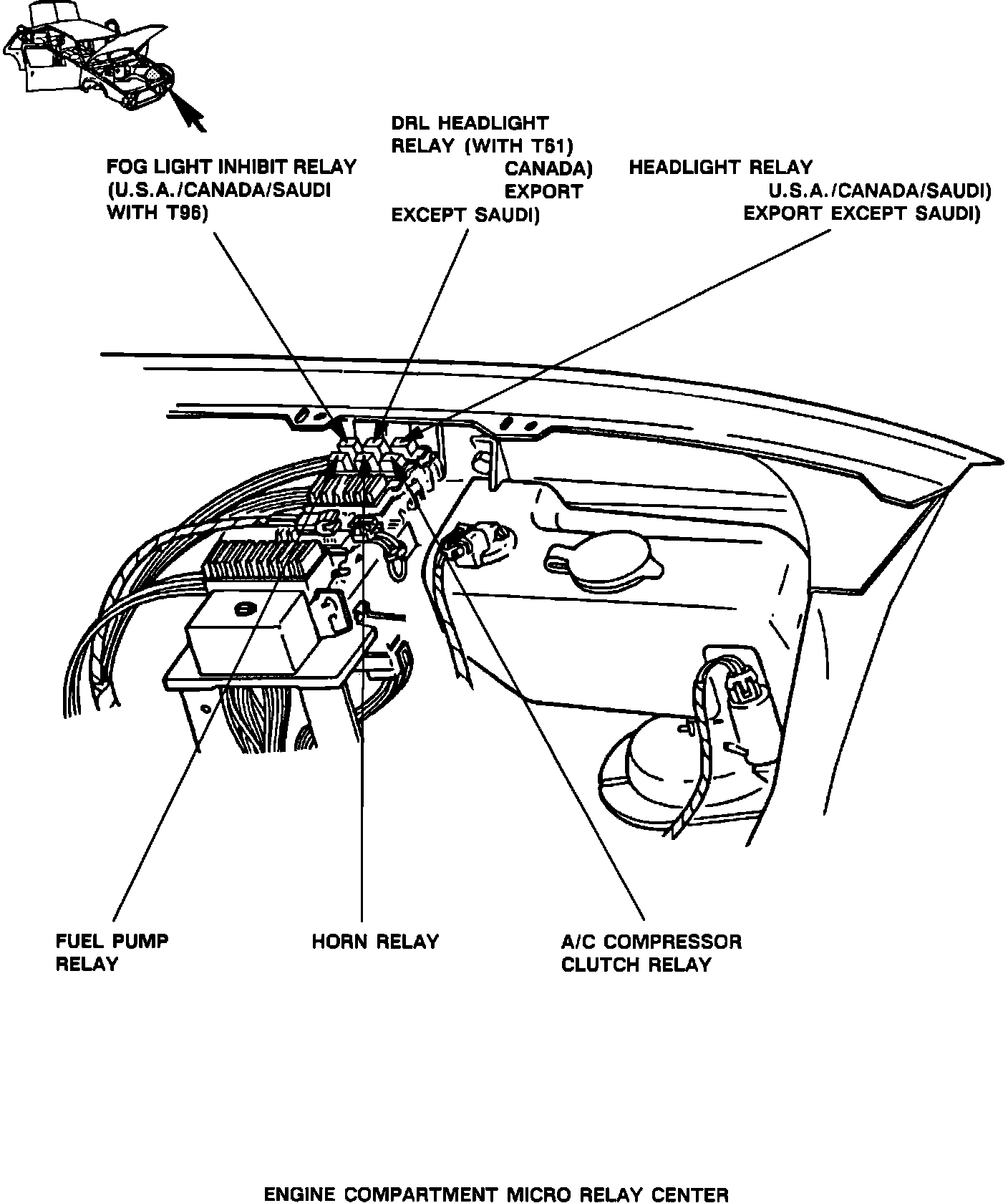

Engine Compartment Micro Relay Center

Front LH Side Of Engine Compartment, On Wheelhouse:
