Exhaust Gas Recirculation: Testing and Inspection

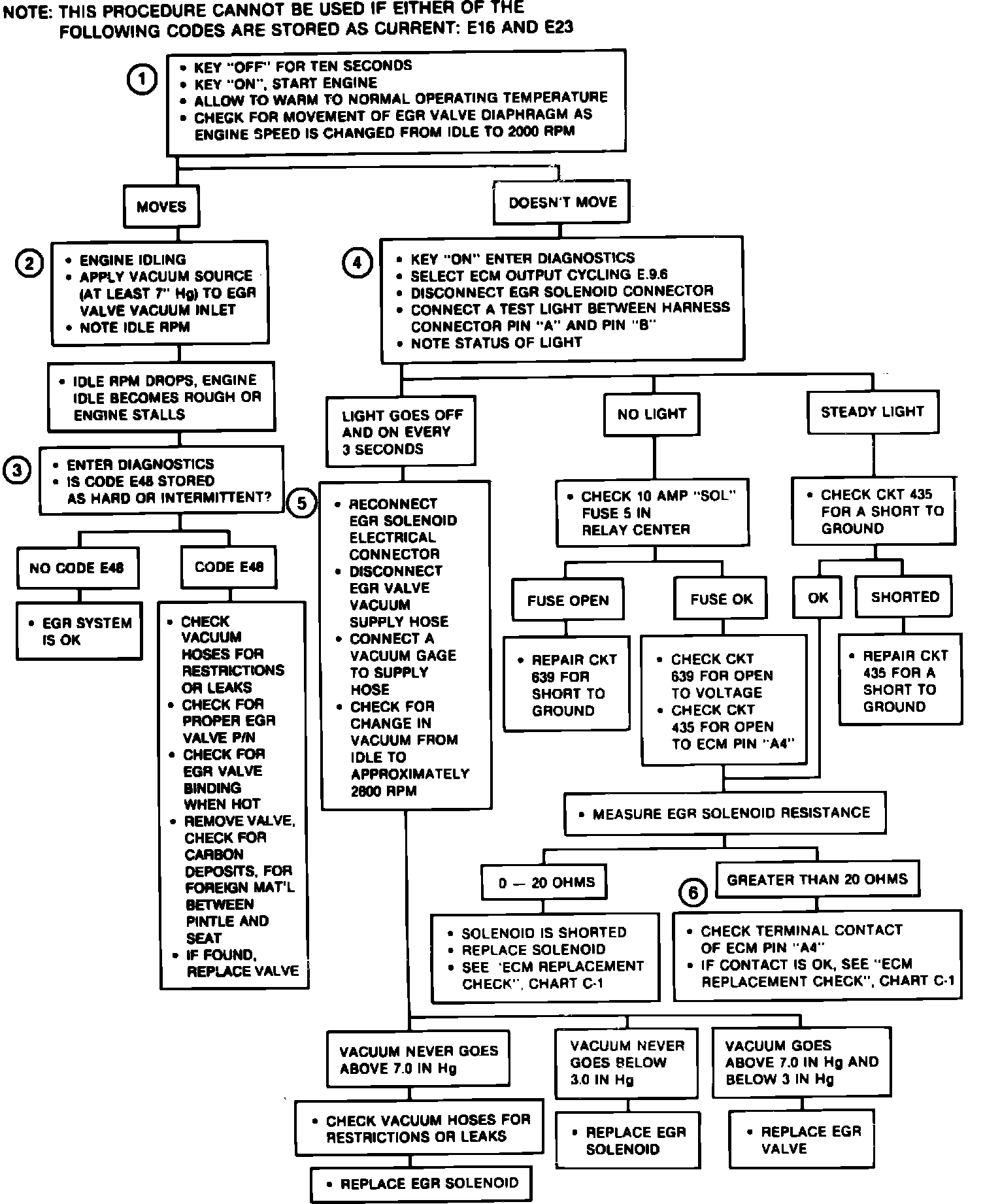

Fig. 26 DEFI System Diagnosis, Chart C-5 (EGR Diagnosis):
