Oxygen Sensor: Service and Repair

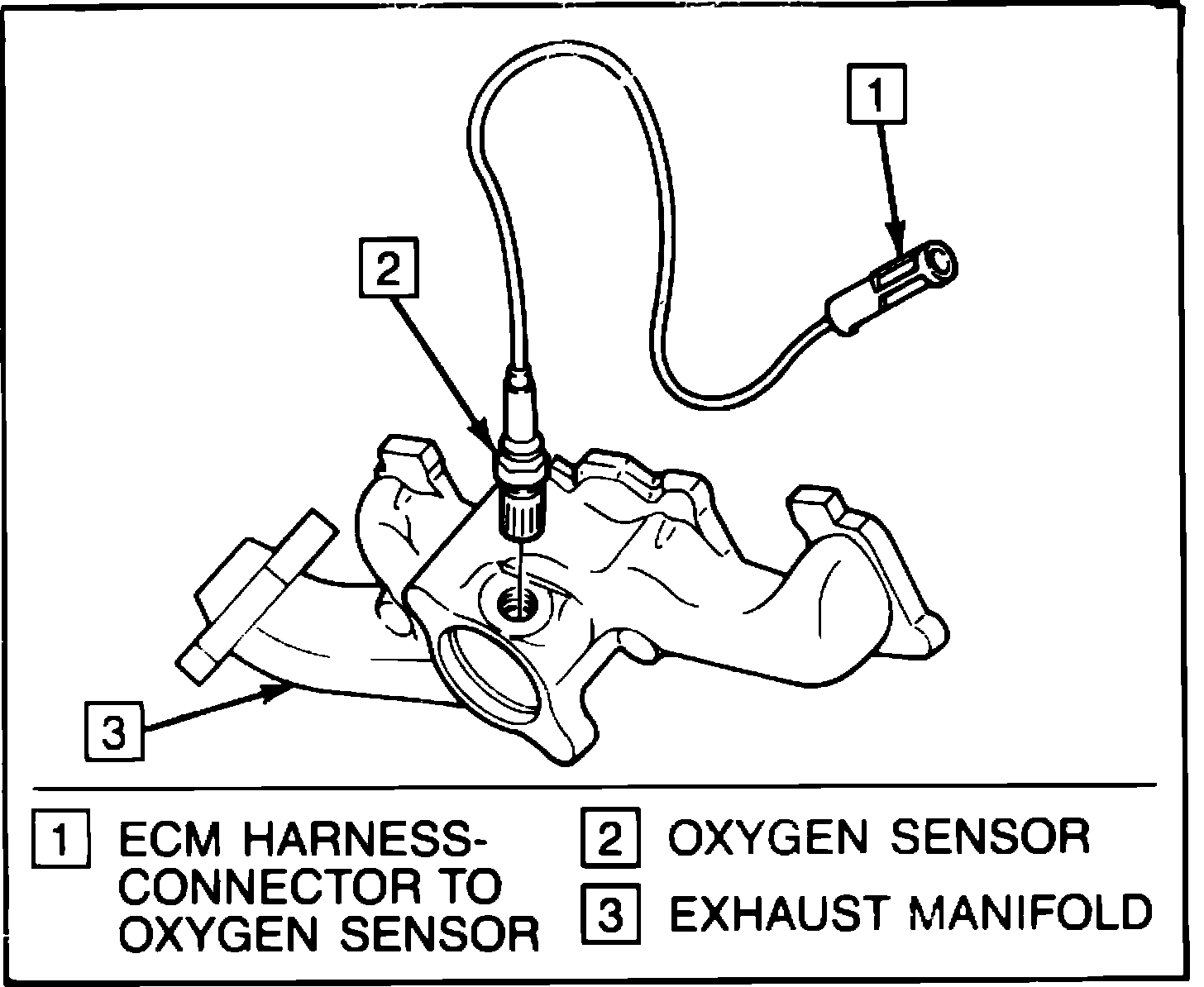

Fig. 105 Oxygen sensor replacement:

1. Disconnect battery ground cable.
2. Raise and support vehicle.
3. Disconnect sensor electrical connector and remove sensor, Fig. 105.
4. Reverse procedure to install. Coat sensor threads with a suitable anti-seize compound and torque sensor to 30 ft. lbs.
