Home >> Cadillac >> 1987 >> DeVille V8-252 4.1L >> Repair and Diagnosis >> Cruise Control >> Brake Switch (Cruise Control) >> Testing and Inspection

Brake Switch (Cruise Control): Testing and Inspection

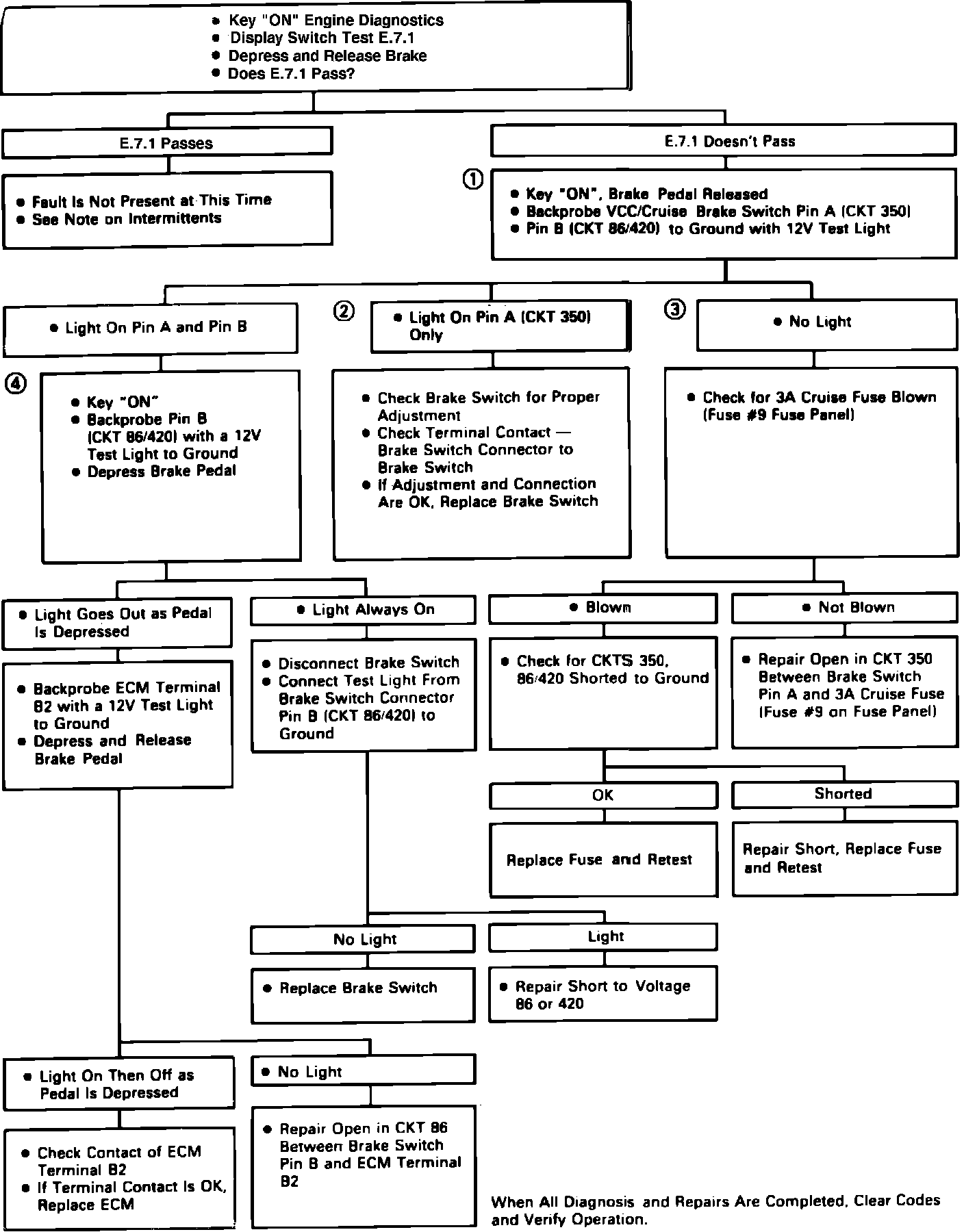

Fig. 77 ECM Input E.7.1 Diagnosis (VCC Brake Switch):
