Home
>>
Cadillac
>>
1987
>>
Cimarron V6-173 2.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>
Under Dash & Engine Compartment Components
Under Dash & Engine Compartment Components

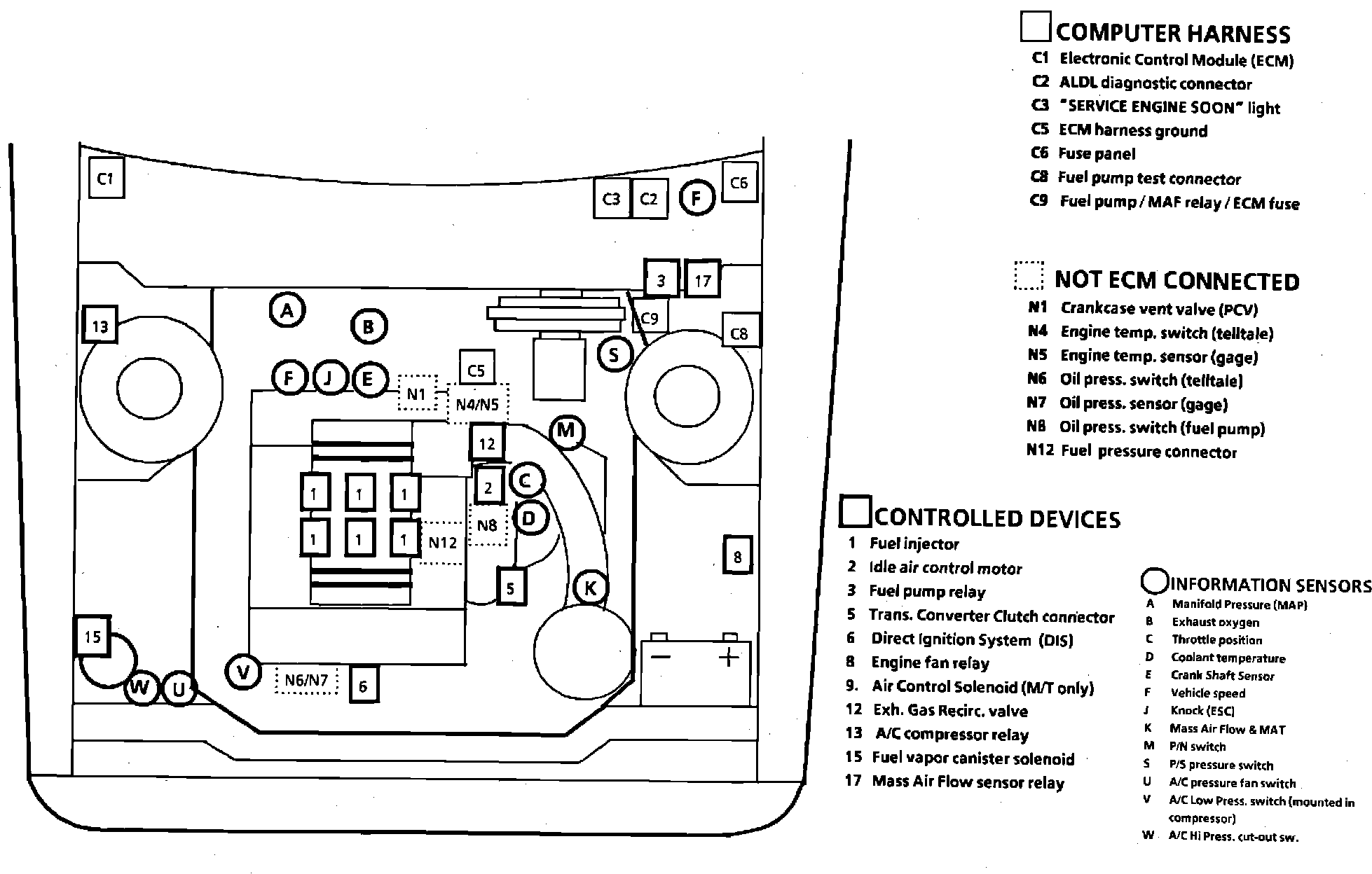

Under Hood & Engine Compartment Component Locations.:
V6-173/2.8L, VIN W
Applicable to: V6-173/2.8L (VIN W) Engine
