Home >> Cadillac >> 1987 >> Allante V8-252 4.1L >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Body Control Module (BCM)

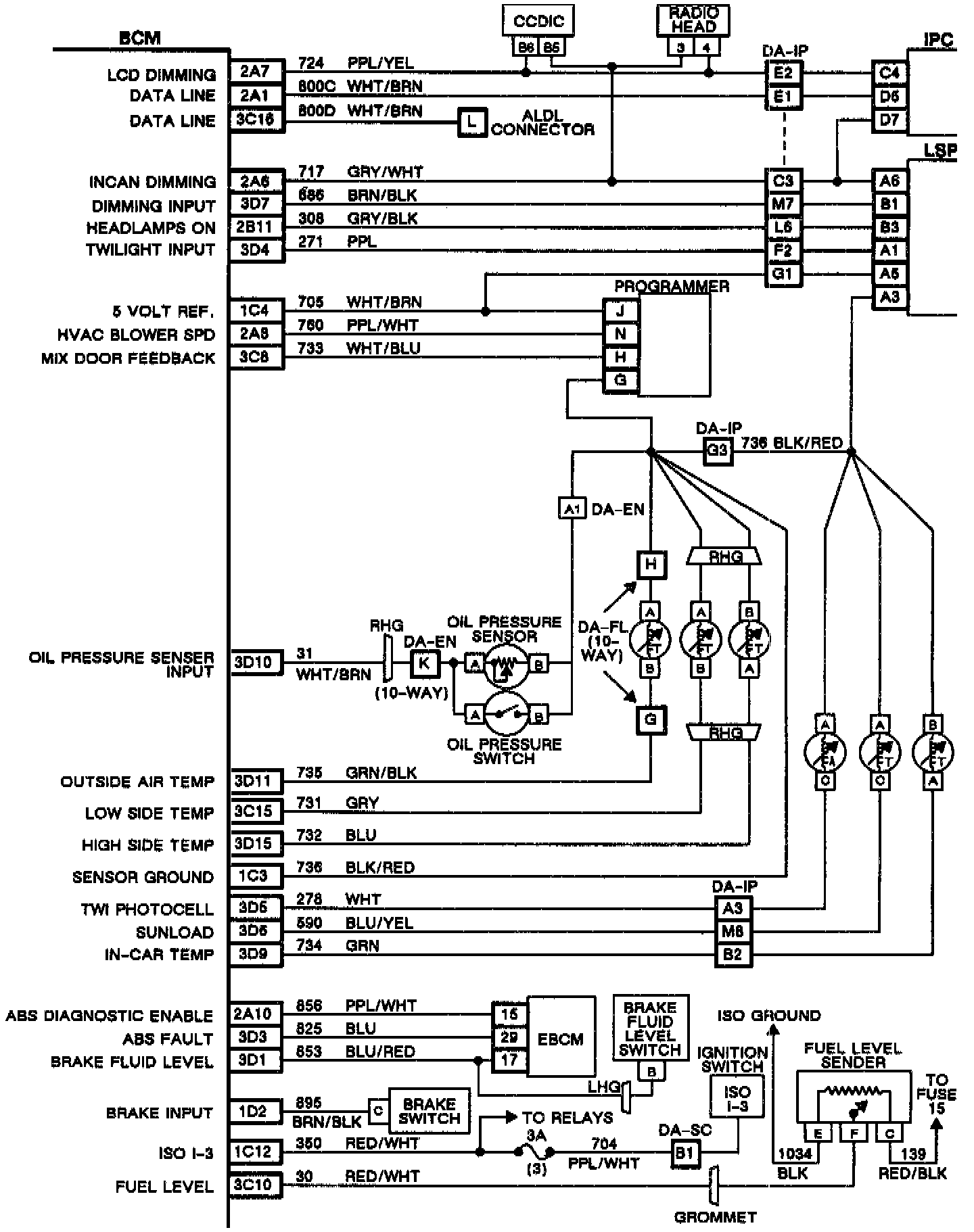

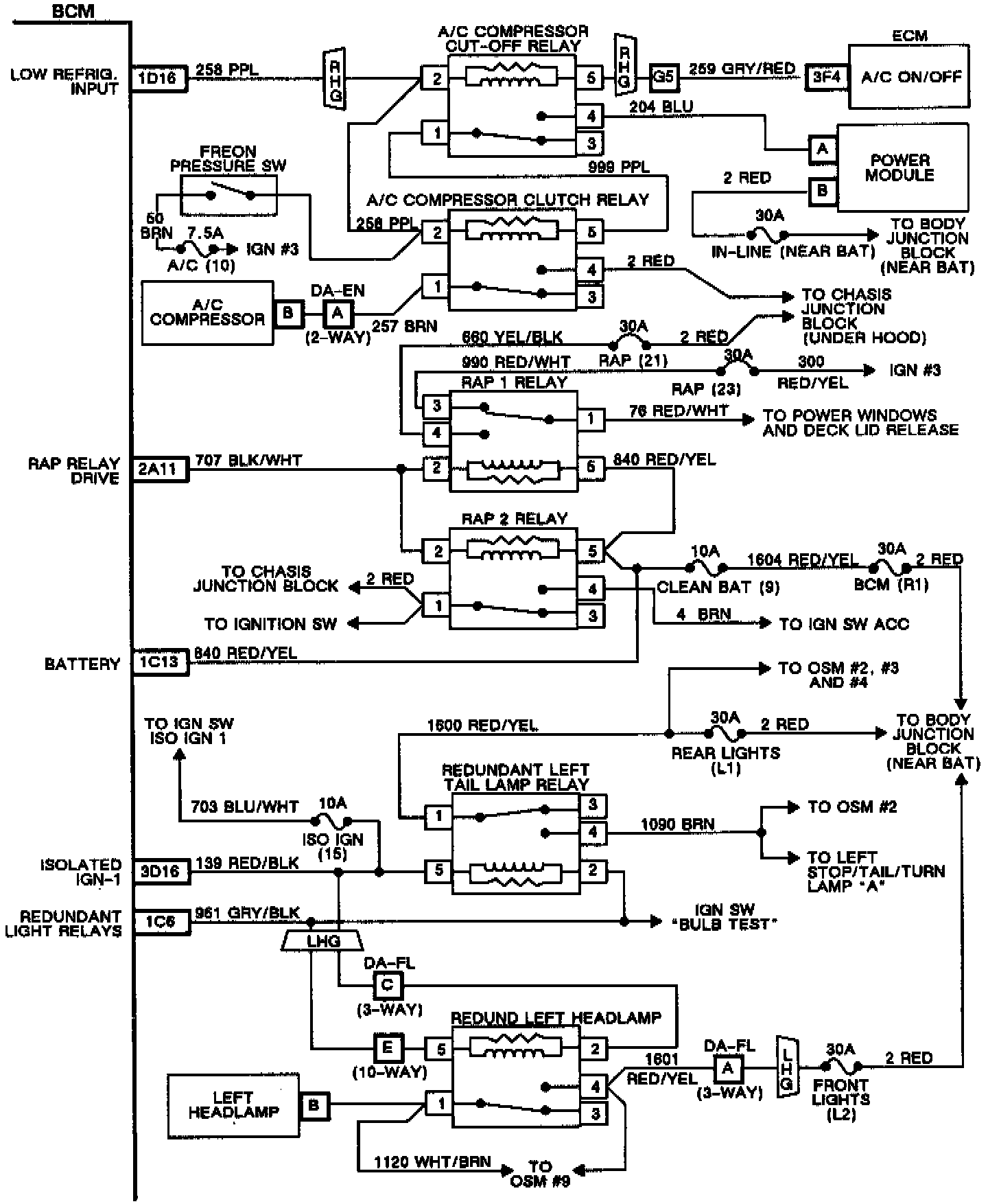

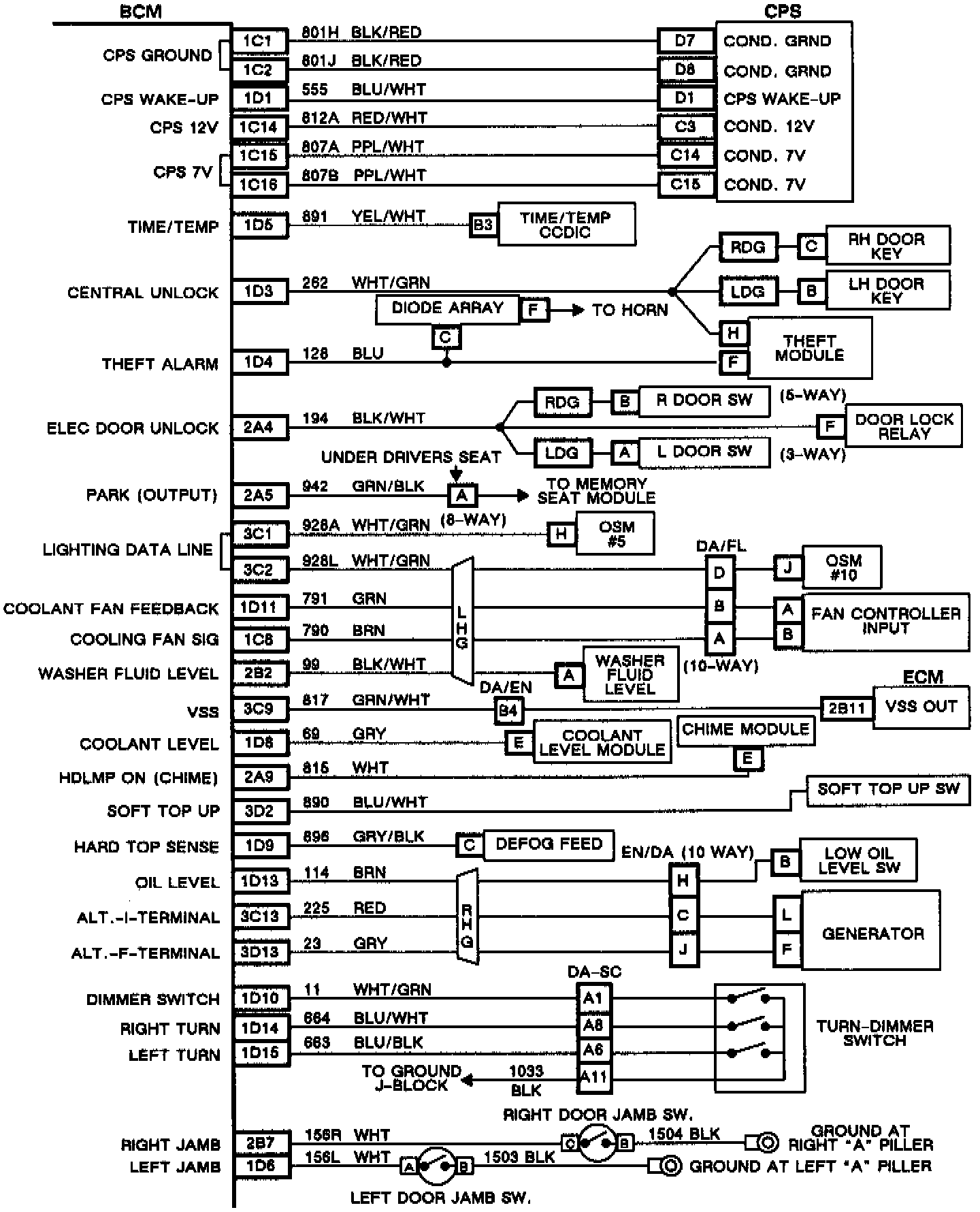

Body Control Module (BCM)
