Accessory Delay Module

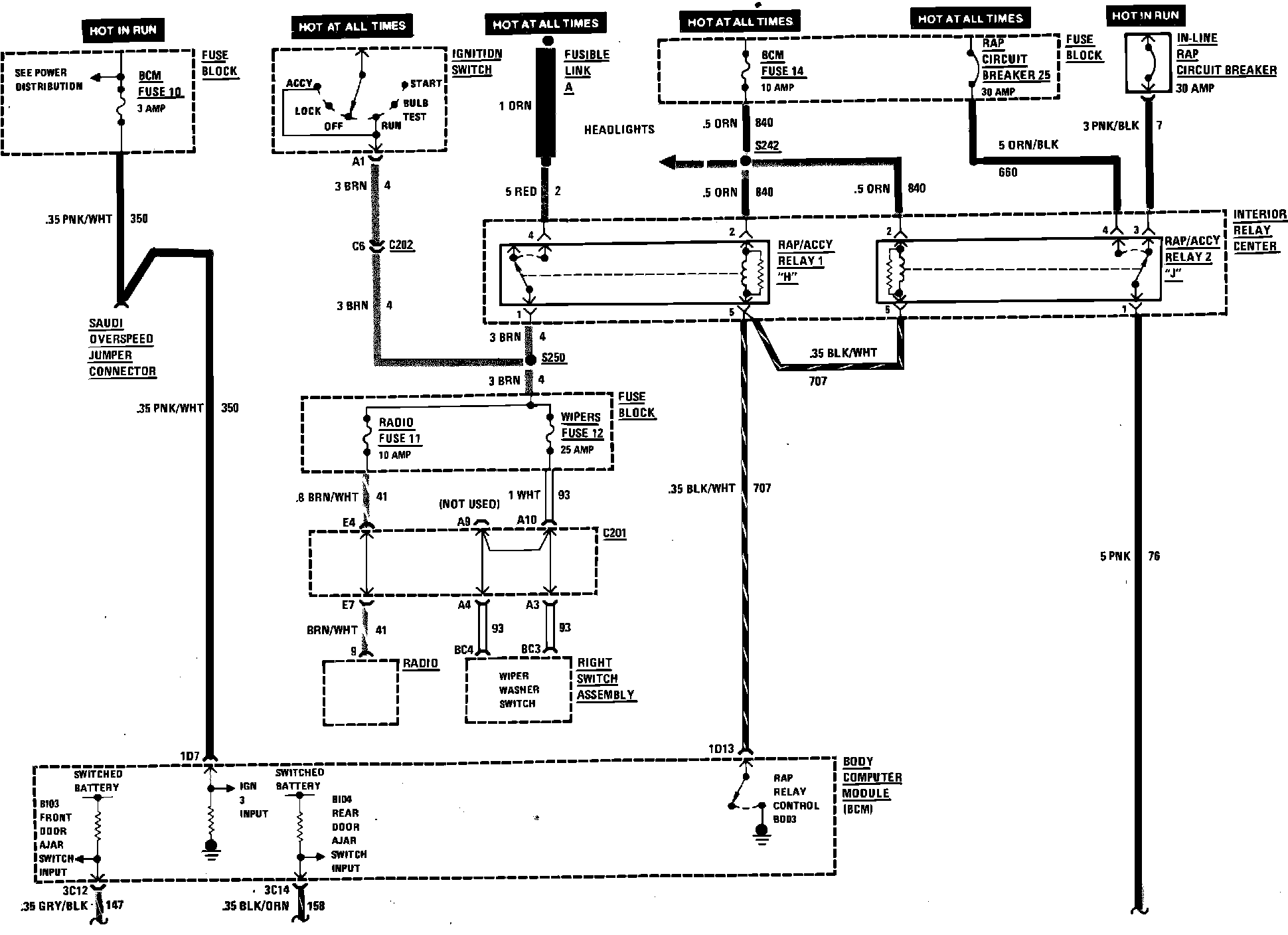

Retained Accessory Power Wiring Circuit (Part 1 Of 2):

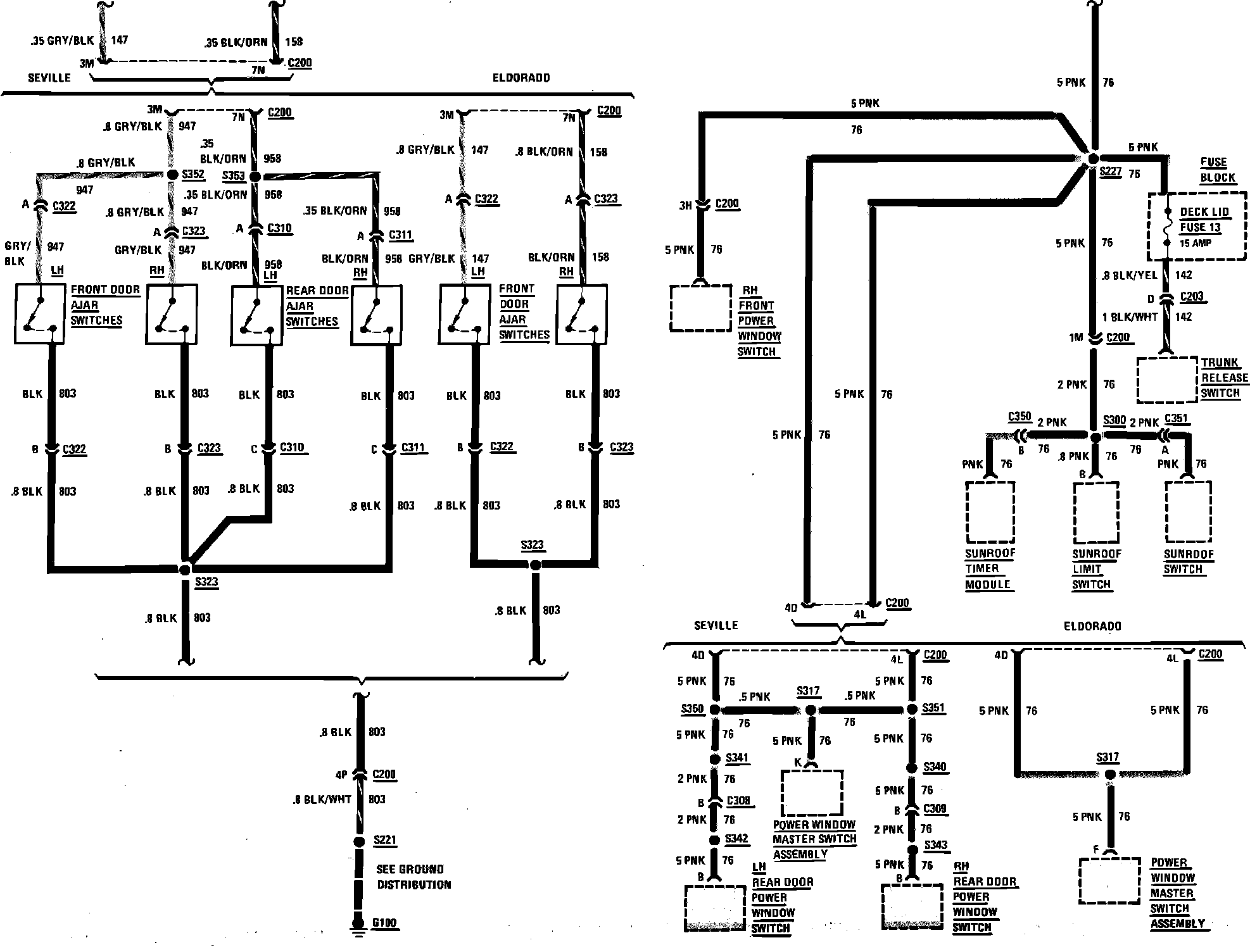

Retained Accessory Power Wiring Circuit (Part 2 Of 2):
