Home >> Cadillac >> 1985 >> Seville V8-252 4.1L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Windows >> Power Window Less Memory Seats

Power Window Less Memory Seats

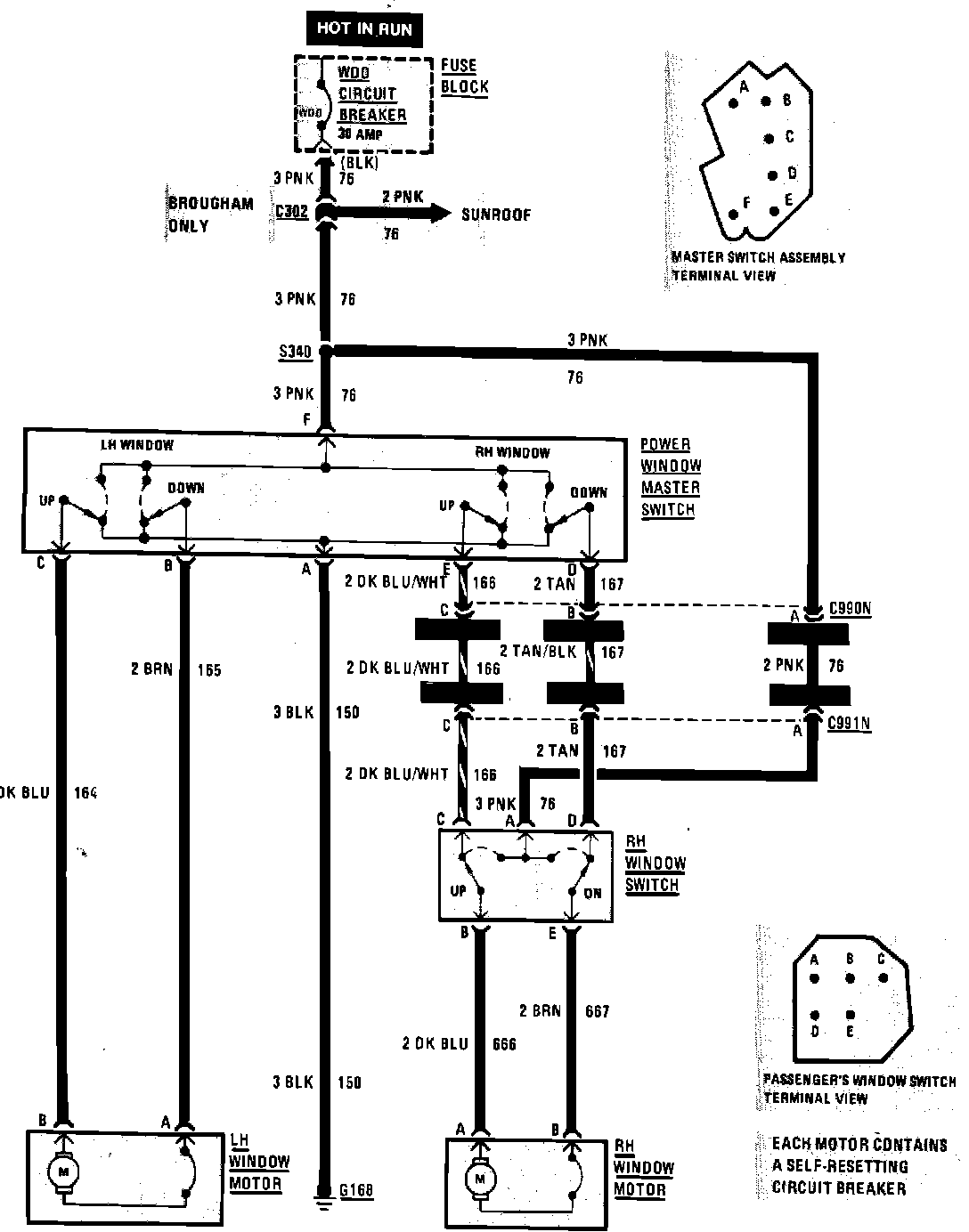

Power Window (Less Memory Seats) Wiring Circuit Hard Top:
