Home >> Cadillac >> 1985 >> Cimarron L4-121 2.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Oxygen Sensor >> Locations

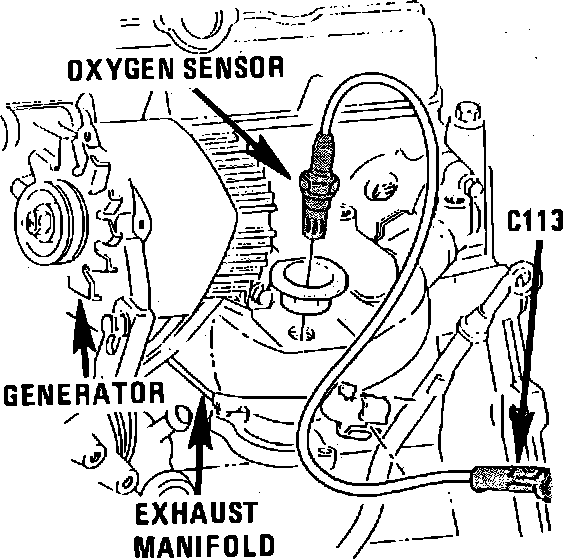

Oxygen Sensor: Locations

LH Side Of Engine.:




LH Side Of Engine In Exhaust Manifold

Applicable to: 1985 Cimarron
