Home >> Cadillac >> 1983 >> Eldorado V8-252 4.1L >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Electronic/Powertrain Control Module (ECM/PCM)

Electronic/Powertrain Control Module (ECM/PCM)

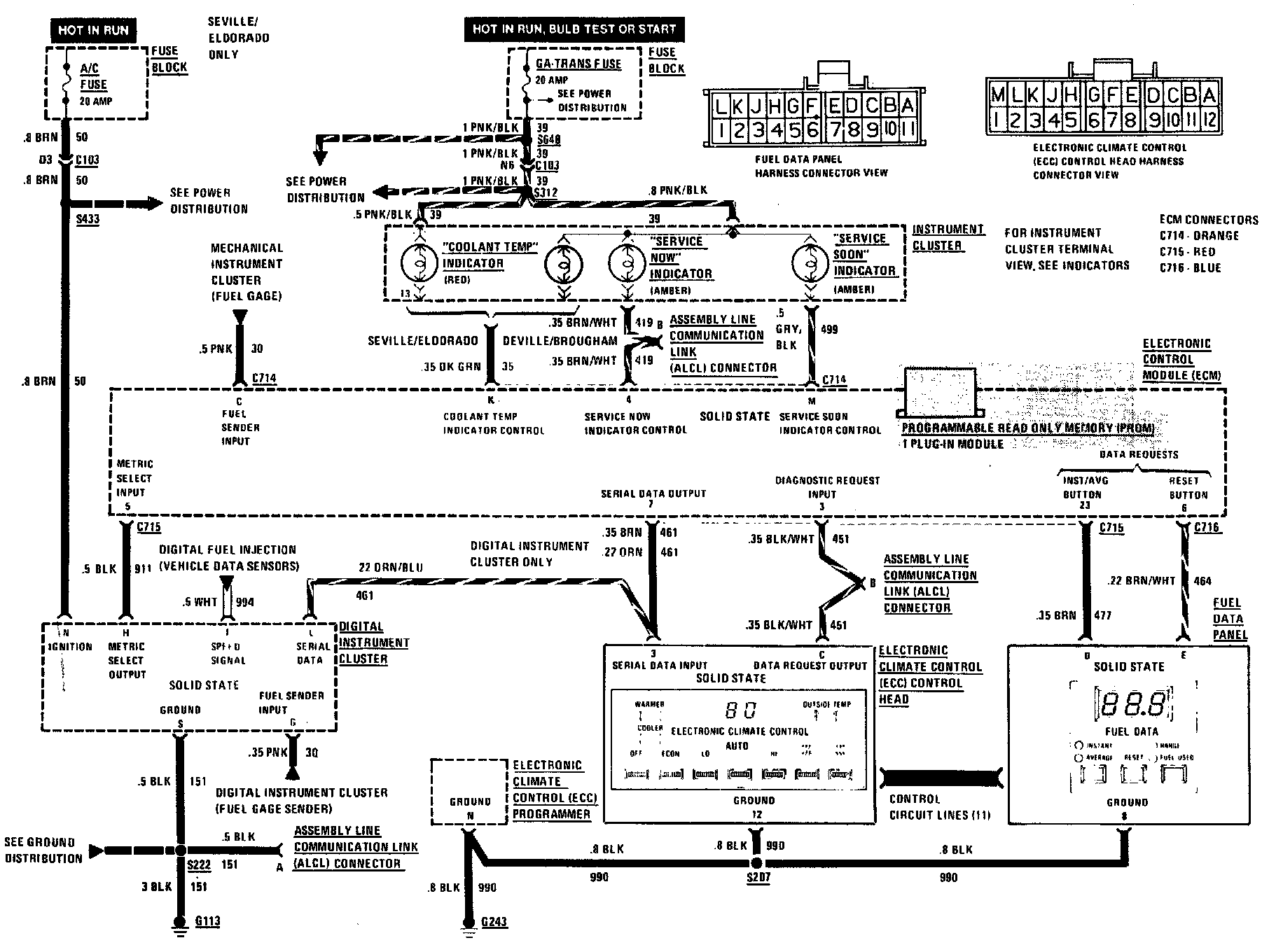

Wiring Diagram.:
