Installation Procedure

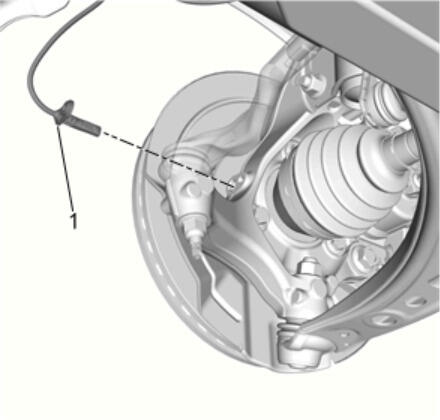

  1. Wheel Speed Sensor (1) - Install
    GM4214177Courtesy of GENERAL MOTORS COMPANY

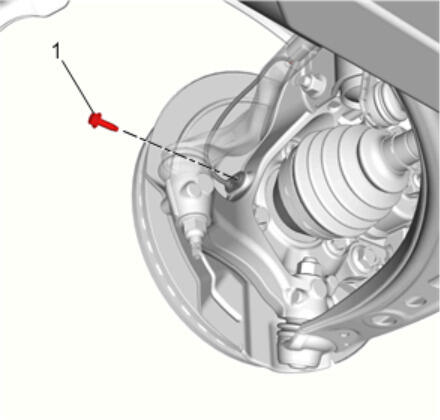

  2. Wheel Speed Sensor Bolt (1) - Install and tighten 9 N.m (80 lb in)
    GM4214175Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution

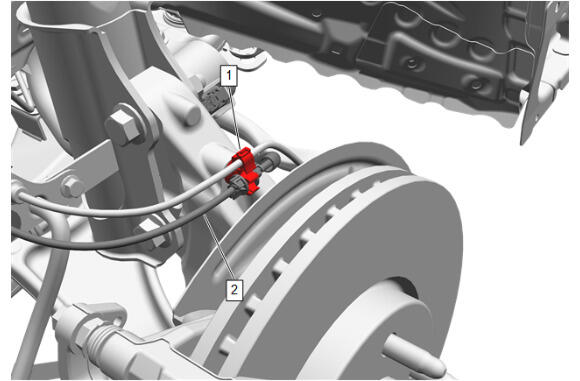

  3. Retainer (1) @Steering Knuckle - Secure
    GM5614108Courtesy of GENERAL MOTORS COMPANY
  4. { F45 }Wiring Harness (2) @Retainer (1) - Install

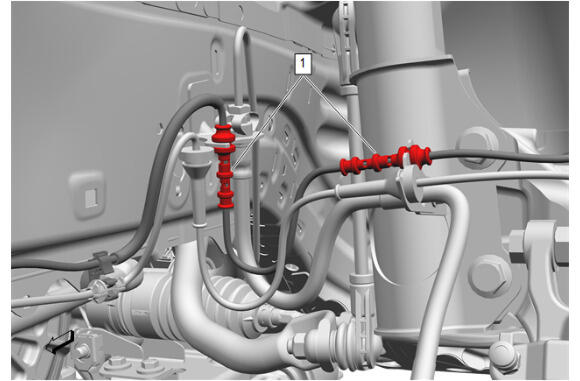

  5. Wiring Harness Grommet (1) - Install [2x]
    GM5613624Courtesy of GENERAL MOTORS COMPANY

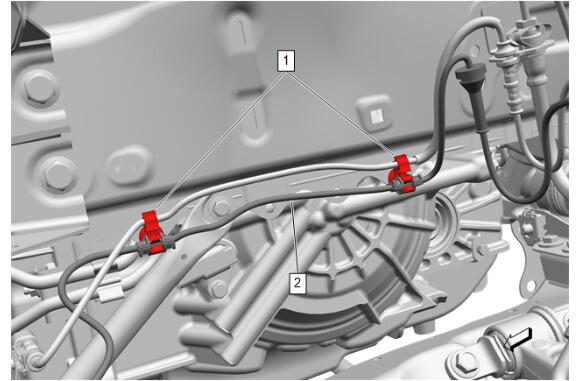

  6. Retainer (1) @Side Rail - Secure [2x]
    GM5613623Courtesy of GENERAL MOTORS COMPANY
  7. { F45 }Wiring Harness (2) @Retainer (1) - Install
  8. Retainer (1) @Radiator Support - Secure

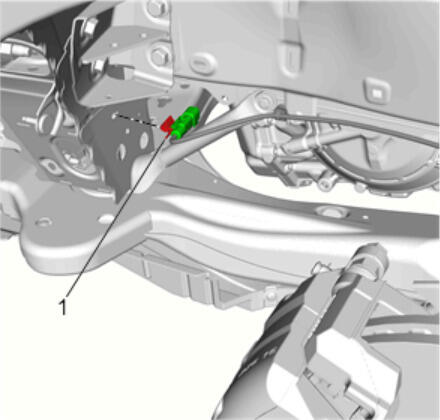

    GM4213876Courtesy of GENERAL MOTORS COMPANY
  9. Wheel Speed Sensor Electrical Connector - Connect
  10. Install the appropriate front wheelhouse liner. Front Wheelhouse Liner Replacement
  11. Verify the repair is complete. Diagnostic Repair Verification
