Accessory AC and DC Power Control Module Replacement

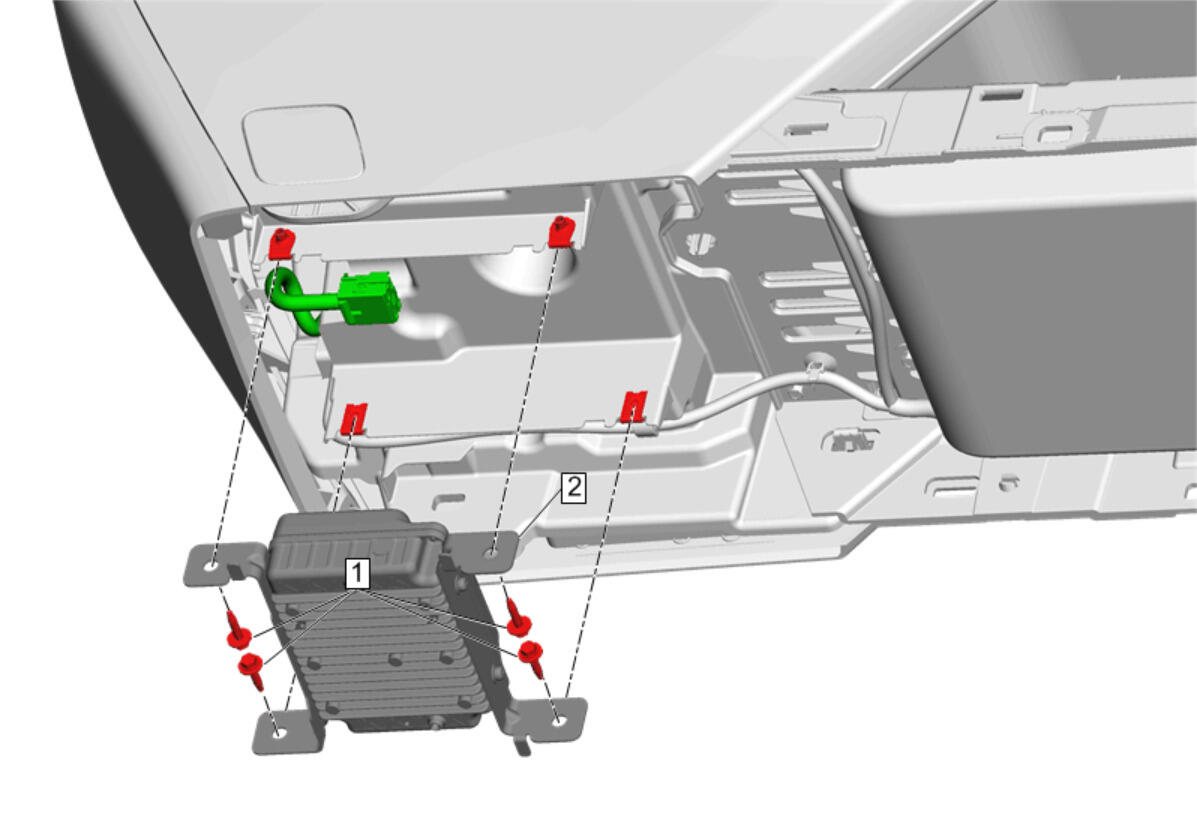

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Floor Console Replacement |
|
| 1 | Accessory AC and DC Power Control Module Bolt [ 4x ]
CAUTION:
Tighten 2.5 N.m (22 lb/in) |
| 2 | Accessory AC and DC Power Control Module Procedure Disconnect the electrical connector. |
