Low Frequency Instrument Panel Antenna Replacement

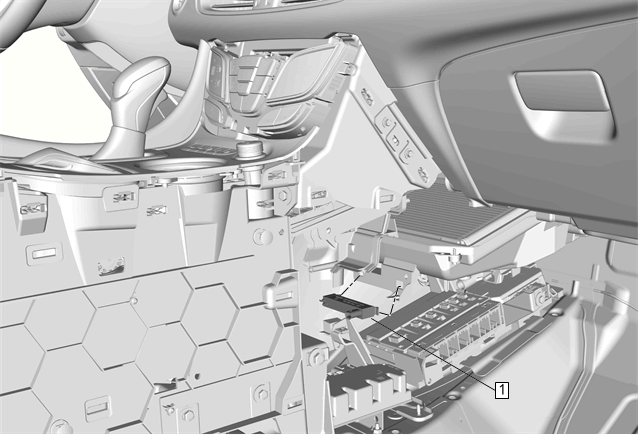

Fig 1: Low Frequency Instrument Panel Antenna

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Front Floor Console Extension Panel - Right Side. Refer to Front Floor Console Extension Panel Replacement - Right Side
1	Low Frequency Instrument Panel Antenna Procedure Disconnect the electrical connector. Release the retaining tab.

Callout

Component Name

Preliminary Procedure
Remove Front Floor Console Extension Panel - Right Side. Refer to Front Floor Console Extension Panel Replacement - Right Side

Low Frequency Instrument Panel Antenna

Procedure
