Garage Door Opener Transmitter Replacement

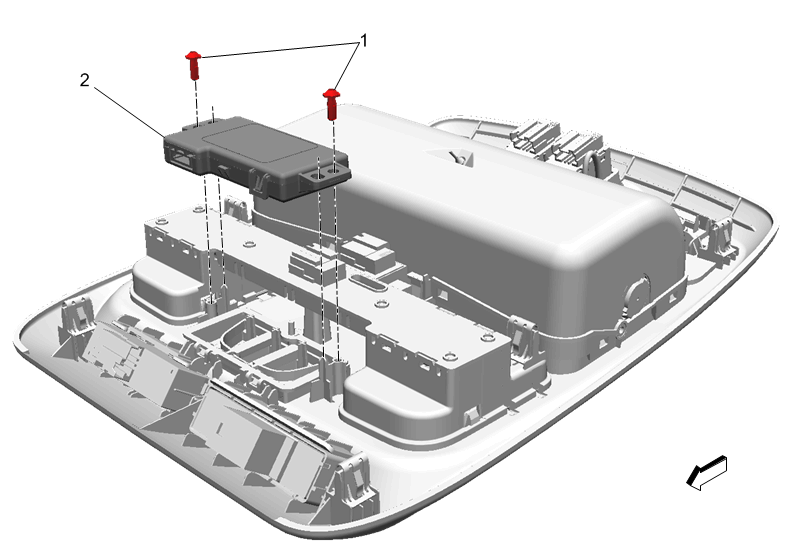

Fig 1: Garage Door Opener Transmitter

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Roof Console Replacement
1	Garage Door Opener Transmitter Bolt CAUTION: Refer to Fastener Caution . Tighten  2 N.m (18 lb in)
2	Garage Door Opener Transmitter
