Installation Procedure

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

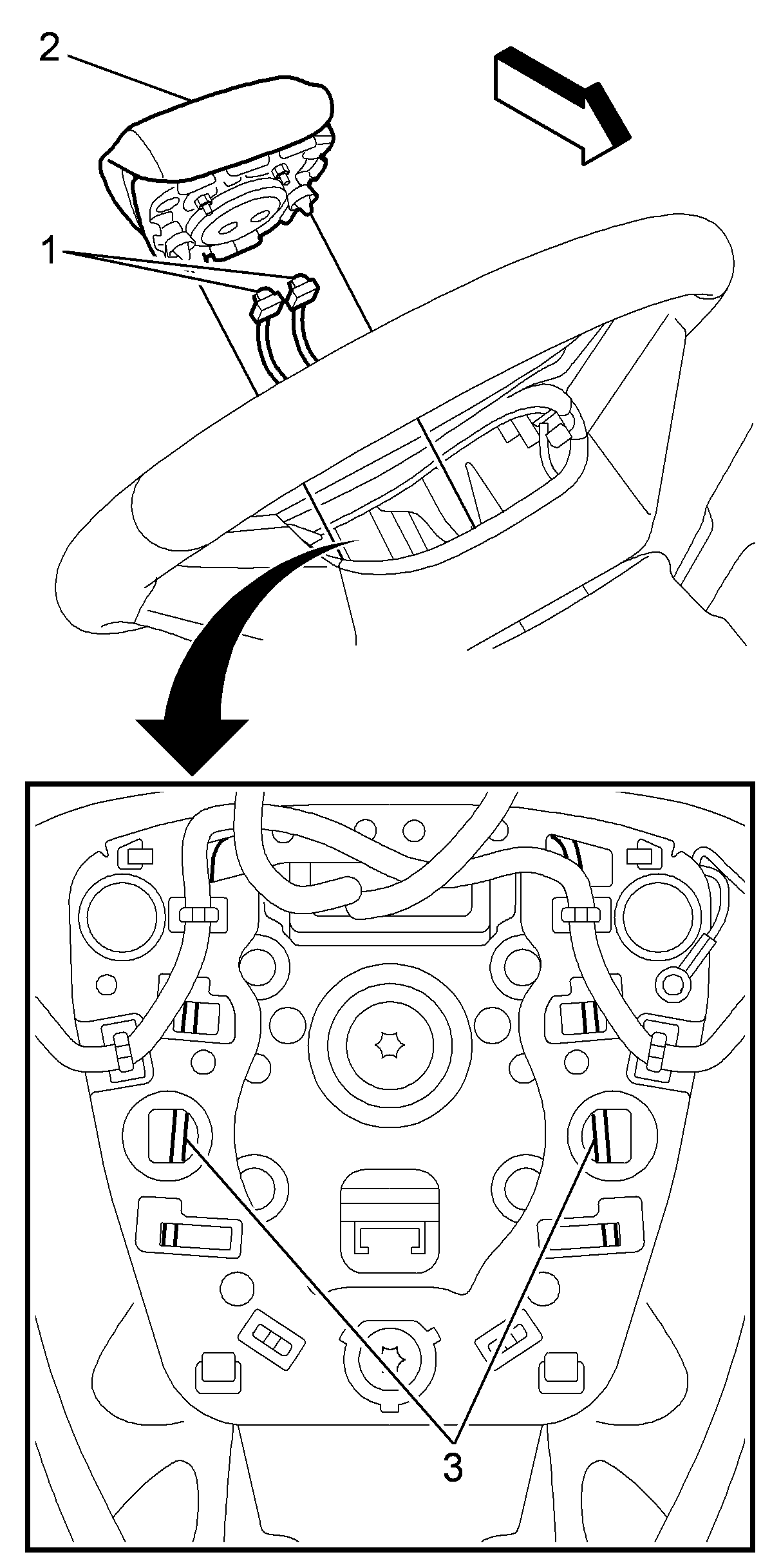

    Fig 1: Aligning Inflatable Restraint Module Fasteners
    GM2342743Courtesy of GENERAL MOTORS COMPANY
  1. Connect the electrical connectors (1).
  2. Close secondary locking.
  3. Align the inflatable restraint module fasteners to the steering wheel spring fastener (3).
  4. Push the inflatable restraint module (2) firmly into the steering wheel in order to engage the spring fastener (3).
  5. Enable the SIR system. Refer to SIR Disabling and Enabling .
  6. Fully deploy the module before disposal. If the module was replaced under warranty, fully deploy and dispose of the module after the required retention period. Refer to Inflatable Restraint Module Handling and Scrapping .
