Inflatable Restraint Instrument Panel Lower Module Replacement - Driver Side

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

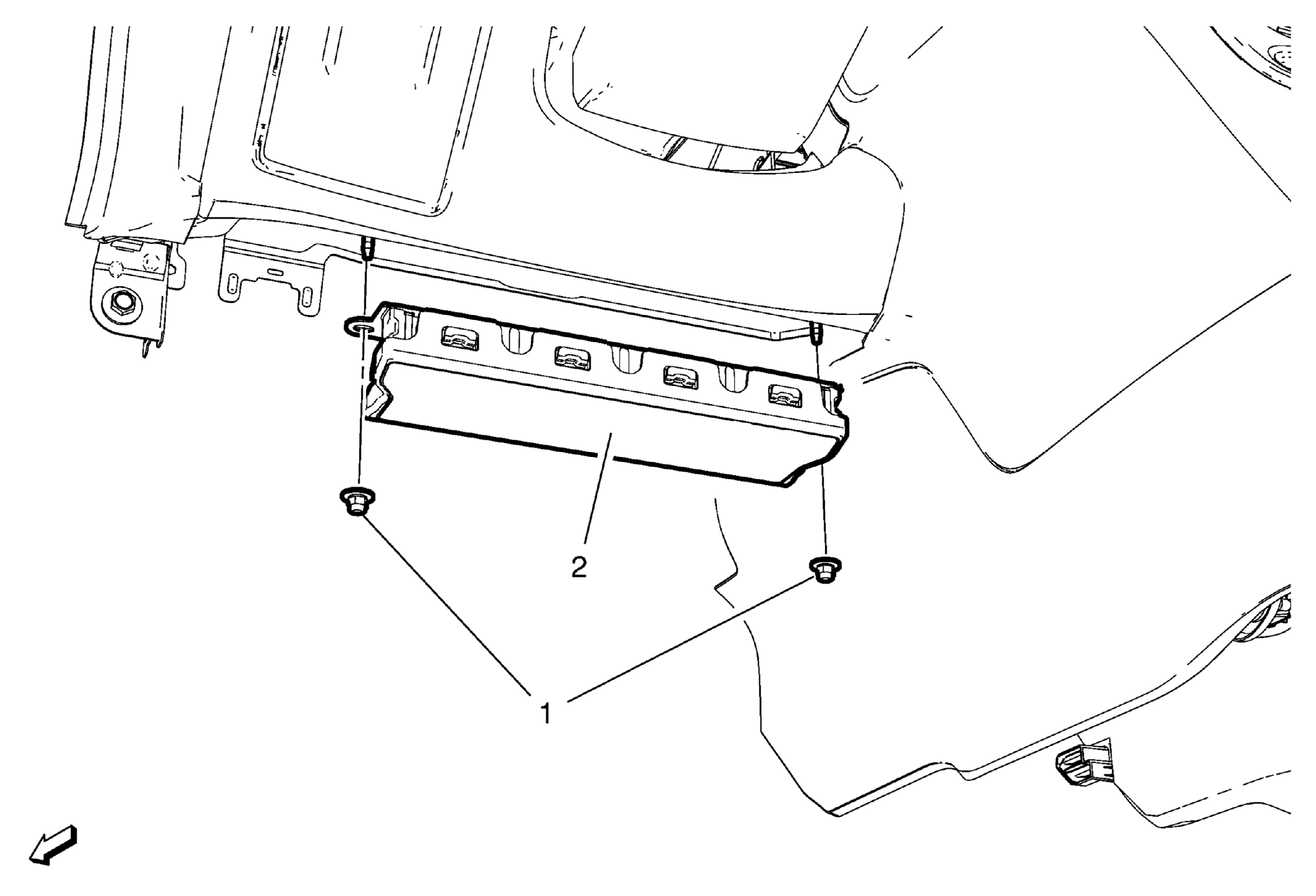

Fig 1: Inflatable Restraint Instrument Panel Lower Module - Driver Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning in the Preface section. Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling .
1	Inflatable Restraint Instrument Panel Lower Module Fastener (Qty: 2) CAUTION: Refer to Fastener Caution in the Preface section. Tighten 9 N.m (80 lb in)
2	Inflatable Restraint Instrument Panel Lower Module Procedure Disconnect electrical connector. Dispose of module properly. Refer to Inflatable Restraint Module Handling and Scrapping .

Callout

Component Name

WARNING:

Refer to SIR Warning in the Preface section.

Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling .

Inflatable Restraint Instrument Panel Lower Module Fastener (Qty: 2)

CAUTION:

Refer to Fastener Caution in the Preface section.

Tighten
9 N.m (80 lb in)

Inflatable Restraint Instrument Panel Lower Module

Procedure

Disconnect electrical connector.
Dispose of module properly. Refer to Inflatable Restraint Module Handling and Scrapping .
