Inflatable Restraint Front Passenger Presence Module Replacement

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

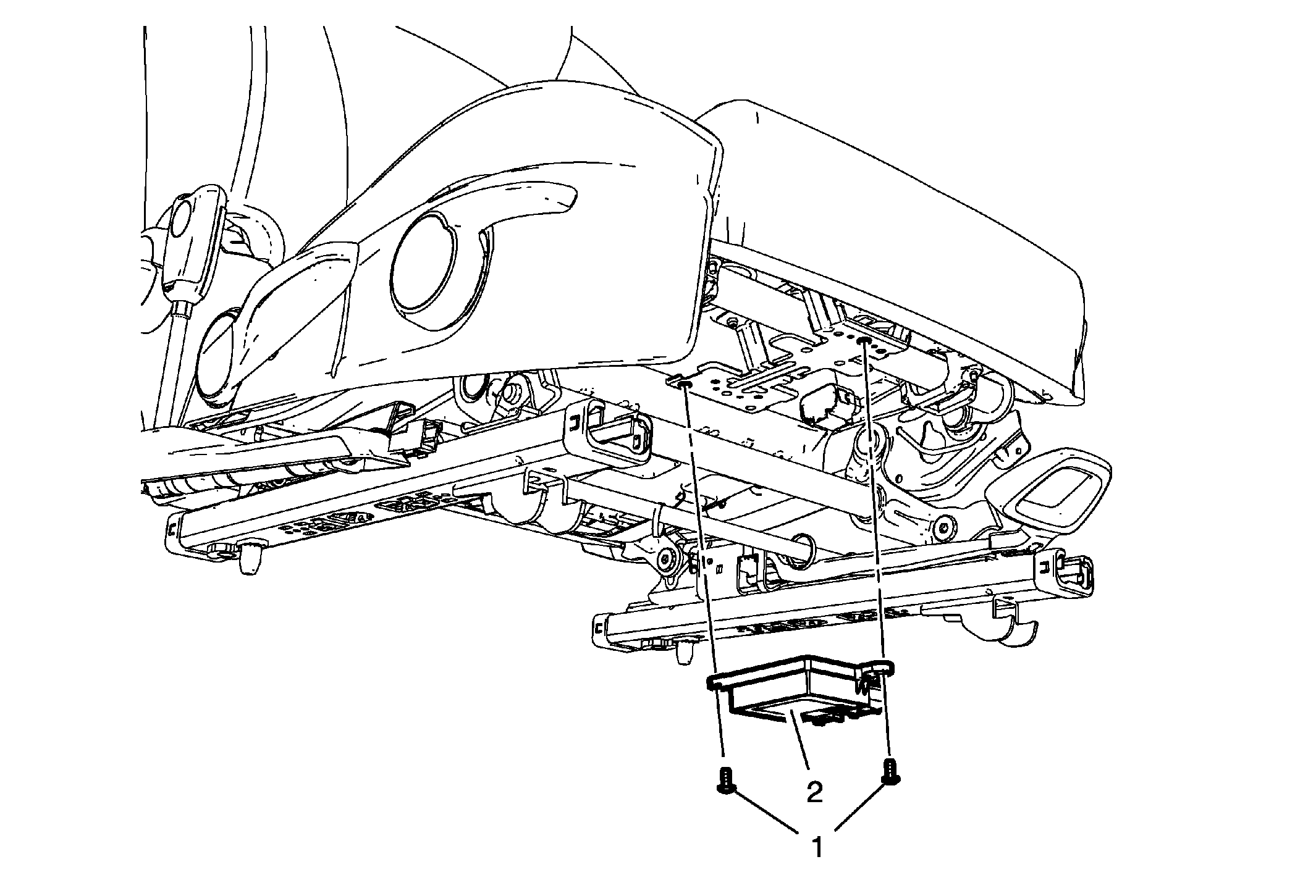

Fig 1: Inflatable Restraint Front Passenger Presence Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Inflatable Restraint Front Passenger Presence Module Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Position the front seat to allow access to the inflatable restraint front passenger presence module and fasteners.
2	Inflatable Restraint Front Passenger Presence Module NOTE: The inflatable restraint front passenger presence module and sensor are serviced as a calibrated kit. Replacing the module requires replacement of the sensor from the same kit. Procedure Disconnect electrical connector. If replacing the module, the sensor must also be replaced. Refer to Inflatable Restraint Front Passenger Presence Sensor Replacement . Preload test the inflatable restraint passenger presence system whenever the seat cushion or any component of the passenger presence system is removed. Refer to Control Module References .

Callout

Component Name

Inflatable Restraint Front Passenger Presence Module Fastener (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Procedure
Position the front seat to allow access to the inflatable restraint front passenger presence module and fasteners.

Inflatable Restraint Front Passenger Presence Module

NOTE:

The inflatable restraint front passenger presence module and sensor are serviced as a calibrated kit. Replacing the module requires replacement of the sensor from the same kit.

Procedure

Disconnect electrical connector.
If replacing the module, the sensor must also be replaced. Refer to Inflatable Restraint Front Passenger Presence Sensor Replacement .
Preload test the inflatable restraint passenger presence system whenever the seat cushion or any component of the passenger presence system is removed. Refer to Control Module References .
