Front End Inflatable Restraint Discriminating Sensor Replacement

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

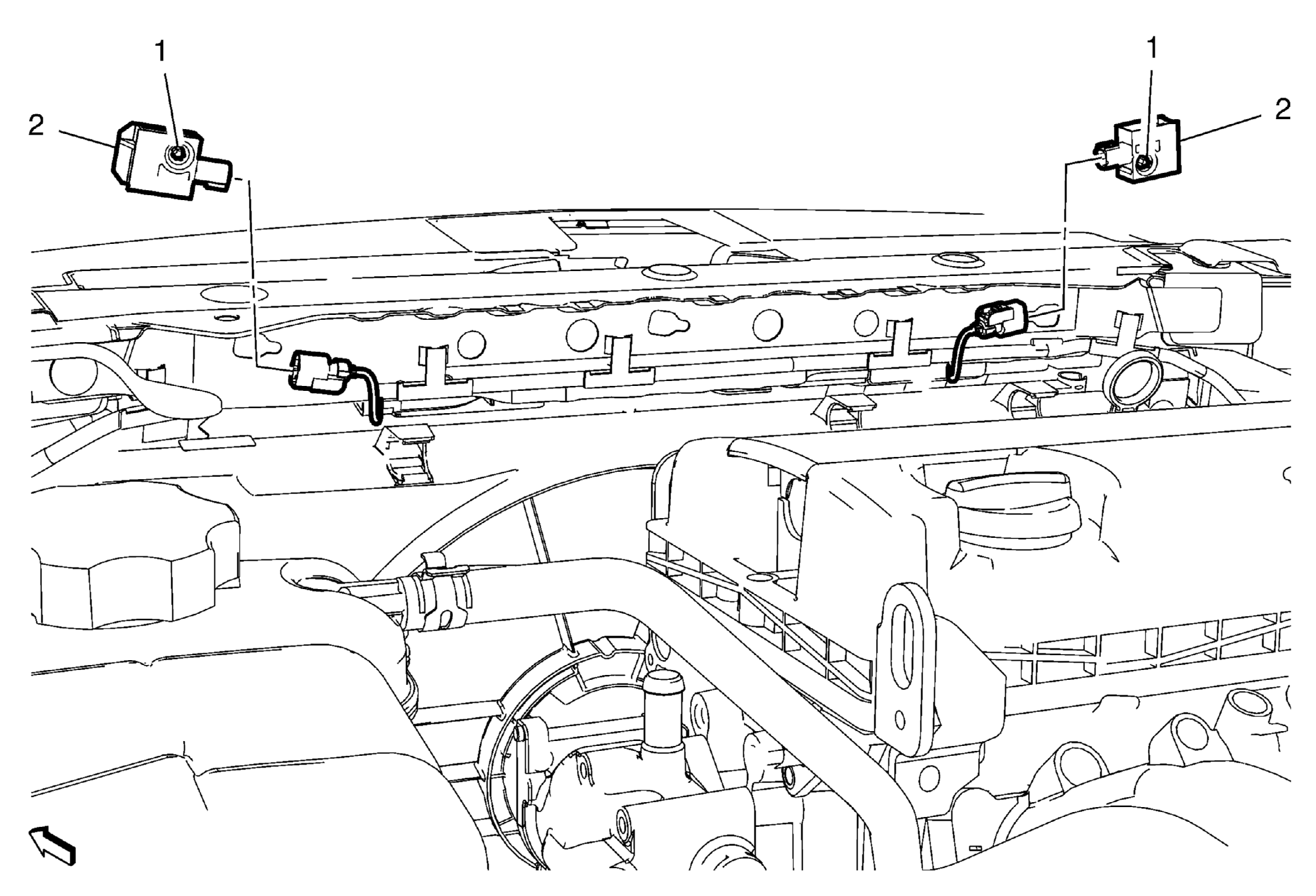

Fig 1: Front End Inflatable Restraint Discriminating Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling .
1	Front End Inflatable Restraint Discriminating Sensor Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 7.5 N.m (66 lb in) NOTE: The inflatable restraint discriminating sensor fastener is integral to the sensor assembly, DO NOT remove separately.
2	Front End Inflatable Restraint Discriminating Sensor (Qty: 2) Procedure Disconnect the electrical connector. Loosen the inflatable restraint discriminating sensor fastener and slide the sensor out of the keyhole slot.

Callout

Component Name

WARNING:

Refer to SIR Warning .

Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling .

Front End Inflatable Restraint Discriminating Sensor Fastener (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
7.5 N.m (66 lb in)

NOTE:

The inflatable restraint discriminating sensor fastener is integral to the sensor assembly, DO NOT remove separately.

Front End Inflatable Restraint Discriminating Sensor (Qty: 2)

Procedure

Disconnect the electrical connector.
Loosen the inflatable restraint discriminating sensor fastener and slide the sensor out of the keyhole slot.
