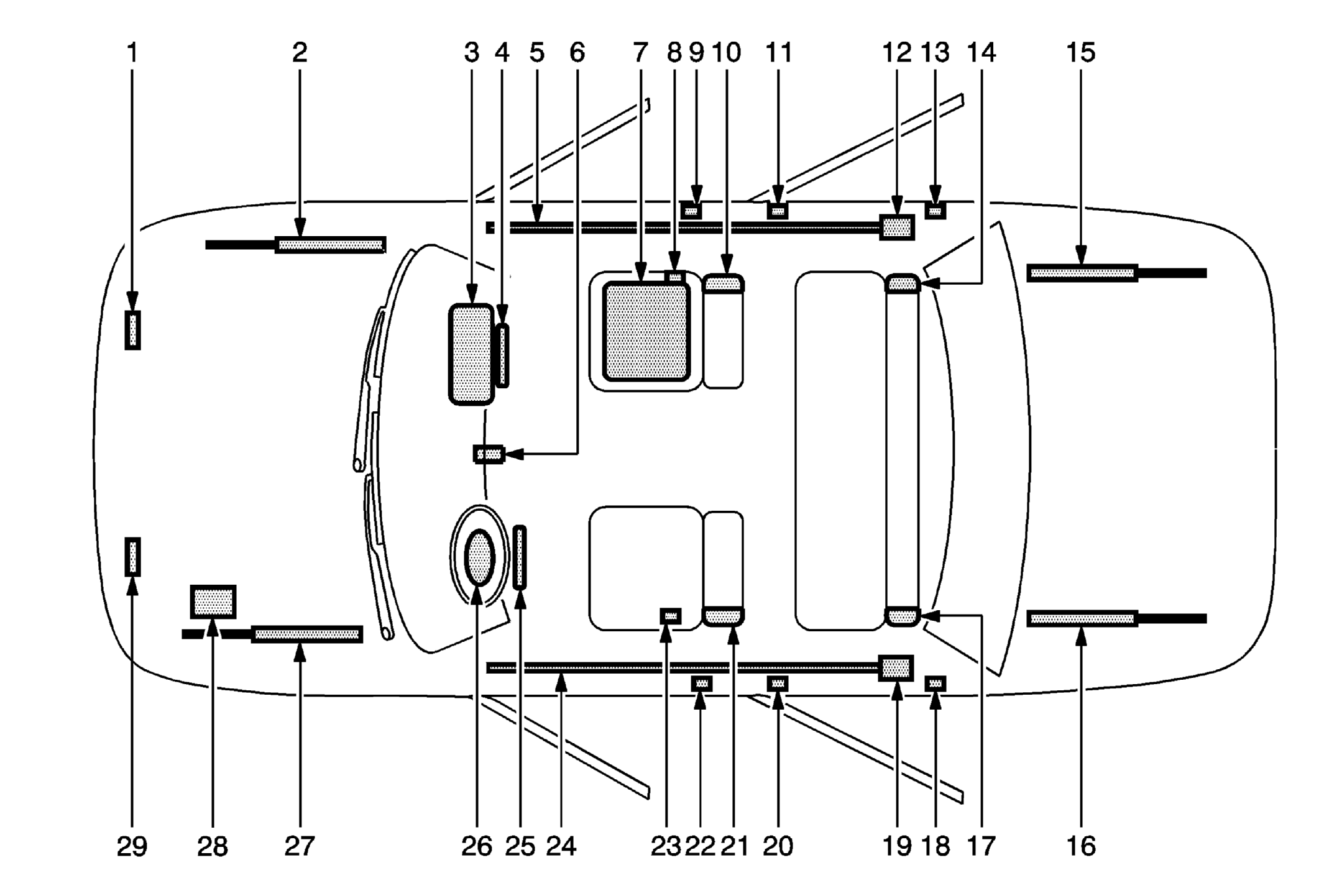

SIR Identification Views
WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Front Right Impact Sensor-Located under the hood on the right side of the vehicle |
| 2 | Front Hood Assist Rod-A gas shock located under the front hood on the passenger side |
| 3 | Instrument Panel Air Bag-Located at the top right under the instrument panel |
| 4 | Right Knee Air Bag-Located below the glove box in the I/P |
| 5 | Roof Rail Air Bag-Located under the headliner, extending from the passenger front windshield pillar to the passenger rear windshield pillar |
| 6 | Sensing and Diagnostic Module (SDM)-Located underneath the center stack |
| 7 | Passenger Presence System (PPS)-Located on the passenger front seat underneath the seat bottom trim |
| 8 | Seat Belt Anchor Pretensioner-Located on the outboard side of the passengers seat |
| 9 | Right Front Side Impact Sensor (SIS)-Located at the B-pillar underneath the door sill |
| 10 | Passenger Seat Side Air Bag-Located on the seat back of passenger seat |
| 11 | Seat Belt Retractor Pretensioner-Located under the trim near the bottom of the center pillar on the passenger side of vehicle |
| 12 | Inflator Module for Roof Rail Air Bag-Located behind the garnish molding on the upper rear pillar |
| 13 | Right Rear Side Impact Sensor (SIS)-Located at the C-pillar underneath the door sill |
| 14 | Right Rear Seat Side Air Bag-Located on the seat back bolster of the rear passenger seat |
| 15 | Rear Hood Assist Rod-A gas shock located under the rear truck lid on the passenger side |
| 16 | Rear Hood Assist Rod-A gas shock located under the rear truck lid on the driver side |
| 17 | Left Rear Seat Side Air Bag-Located on the seat back bolster of the rear passenger seat |
| 18 | Left Rear Side Impact Sensor (SIS)-Located at the C-pillar underneath the door sill |
| 19 | Inflator Module for Roof Rail Air Bag-Located behind garnish molding on the upper rear pillar |
| 20 | Seat Belt Retractor Pretensioner-Located under the trim near the bottom of the center pillar on the driver side of vehicle |
| 21 | Driver Seat Side Air Bag-Located on the seat back of driver seat |
| 22 | Left Front Side Impact Sensor (SIS)-Located at the B-pillar underneath the door sill |
| 23 | Seat Belt Anchor Pretensioner-Located on the outboard side of the drivers seat |
| 24 | Roof Rail Air Bag-Located under the headliner, extending from the driver front windshield pillar to the driver rear windshield pillar |
| 25 | Left Knee Air Bag-Located below the steering wheel in the I/P |
| 26 | Steering Wheel Air Bag-Located on the steering wheel |
| 27 | Front Hood Assist Rod-A gas shock located under the front hood on the driver side |
| 28 | Vehicle Battery-Located under the hood on the left side |
| 29 | Left Front Impact Sensor-Located under the hood on the left side of the vehicle |
