Home >> Buick >> 2013 >> Verano L4-2.4L >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Starter Relay >> Locations

Starter Relay: Locations




Electrical Center Identification Views

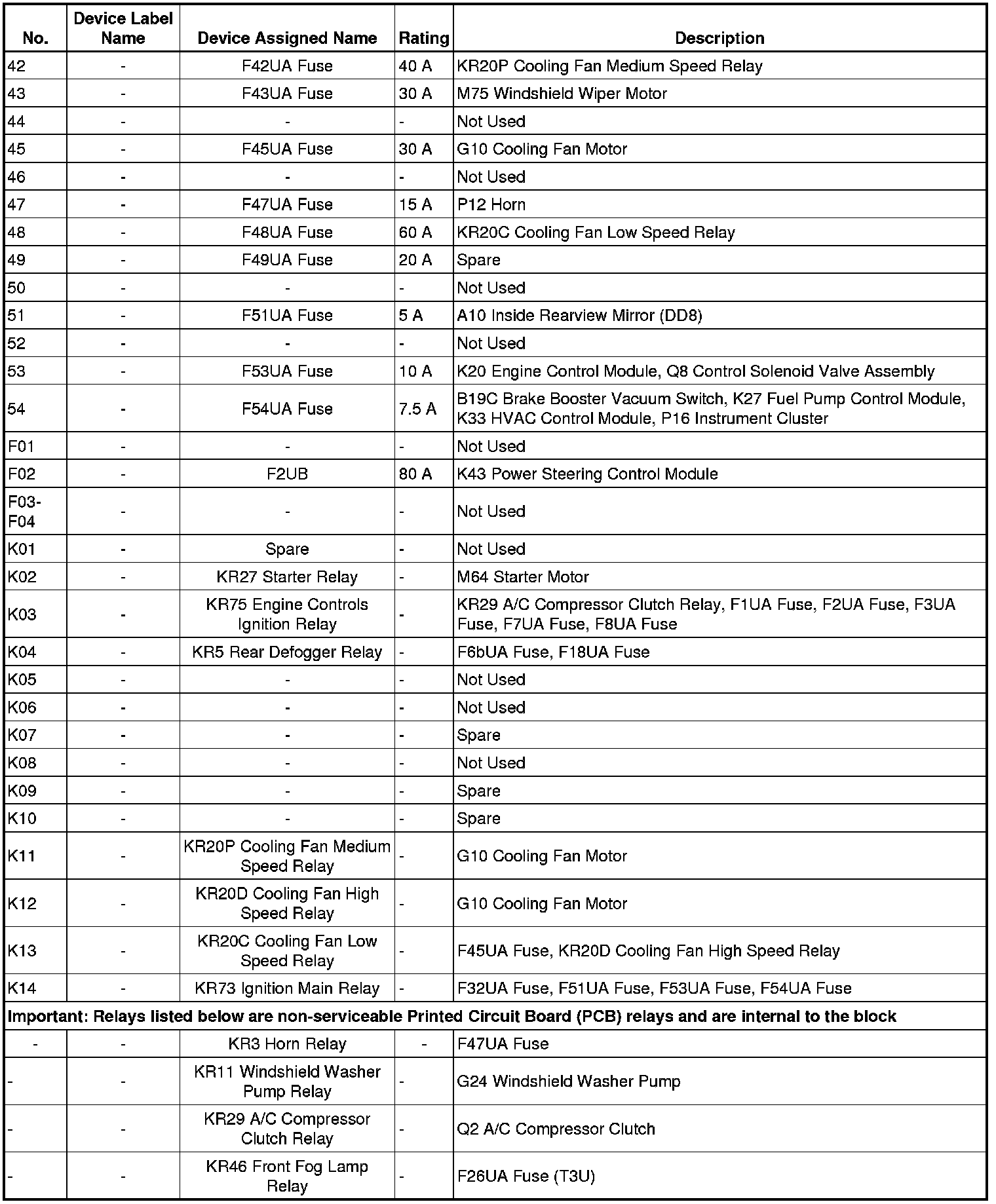

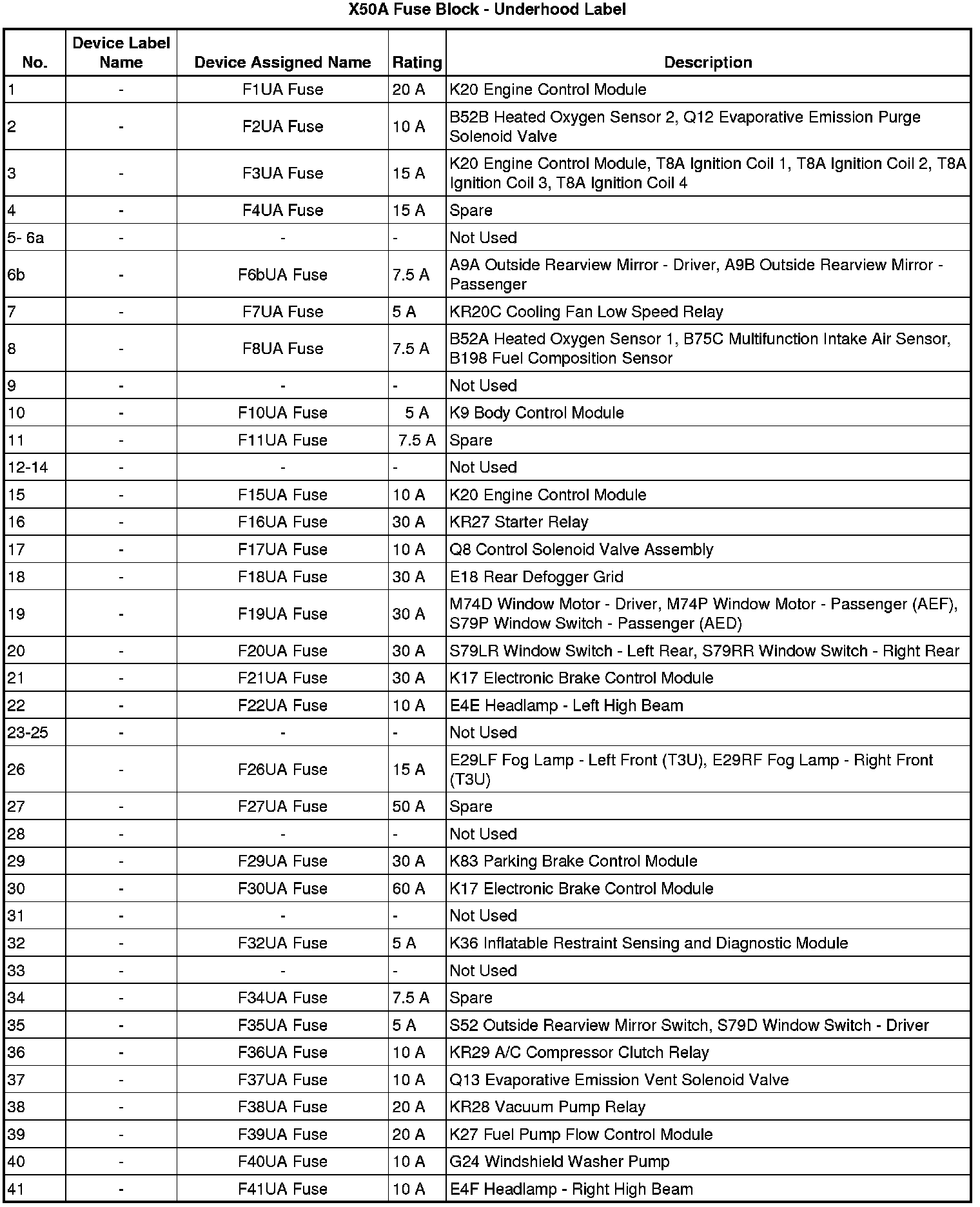

X50A Fuse Block - Underhood Label
