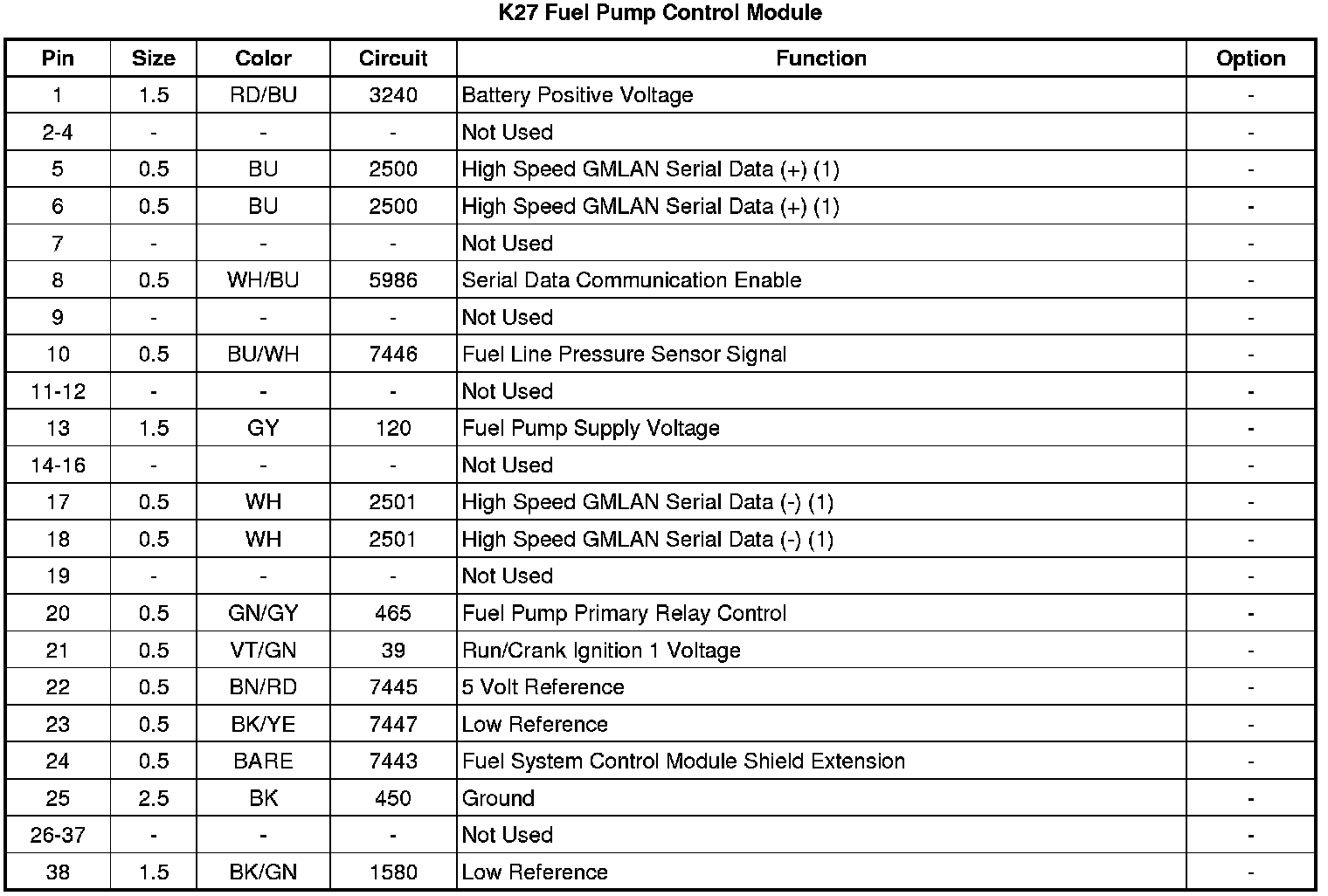

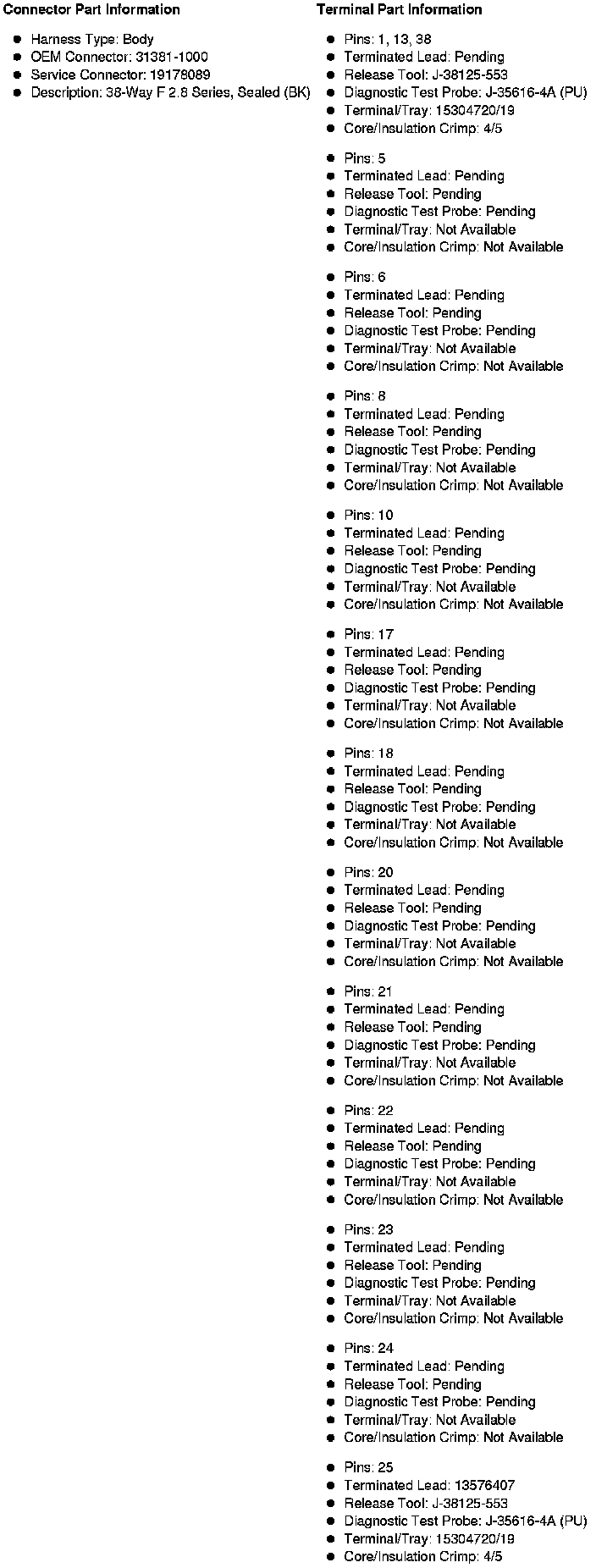

Home >> Buick >> 2013 >> Verano L4-2.4L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> Connector End Views By Name >> Fuel Pump Control Module
